Key Features
The SVS Ultra Evolution Nano is the most compact speaker in the Ultra Evolution series, incorporating advanced driver technology, cabinet engineering, and crossover refinement. It features an upgraded one-inch diamond-coated aluminium tweeter, created using a vapour deposition process that increases rigidity and extends high-frequency response well beyond human hearing. This results in crisp treble with minimal distortion, even at high volumes. A precision-tuned crossover ensures a smooth transition between the tweeter and the 5.25-inch glass-fibre woofer, which delivers controlled bass and natural midrange without unwanted resonance.
The cabinet is optimised for accuracy and immersion. Its most striking feature, the curved baffle, isn’t just an aesthetic choice but ensures precise time alignment so that sound from each driver reaches you simultaneously. This improves phase coherence, giving you a far more immersive soundstage. The rigid, acoustically inert enclosure minimises vibrations, while the chamfered front edges reduce diffraction for improved off-axis performance. Available in Piano Gloss Black, Piano Gloss White, and Black Oak Veneer, the Ultra Evolution Nano is designed for stereo listening in small to medium-sized rooms or as part of a high-performance home theatre system.
Product Ref: 326013
Frequency Response | 44Hz to 40kHz (+/-3 dB) |
---|---|
Nominal Impedance | 6 ohms |
Sensitivity | 85dB (2.83V @ 1 meter full-space, 300Hz – 3kHz) |
Recommended amplifier power | 20 – 150 watts |
Speaker type | Bookshelf loudspeaker |
---|---|
Available finishes | Piano gloss black, piano gloss white, real black oak veneer finish options |

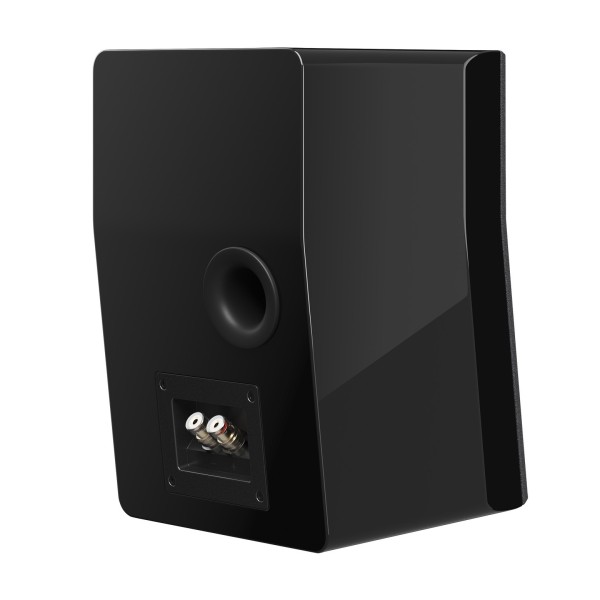

Binding posts | Gold-plated 5-way binding posts |
Cabinet ports | 1.6” wide-?ared rear-?ring port |

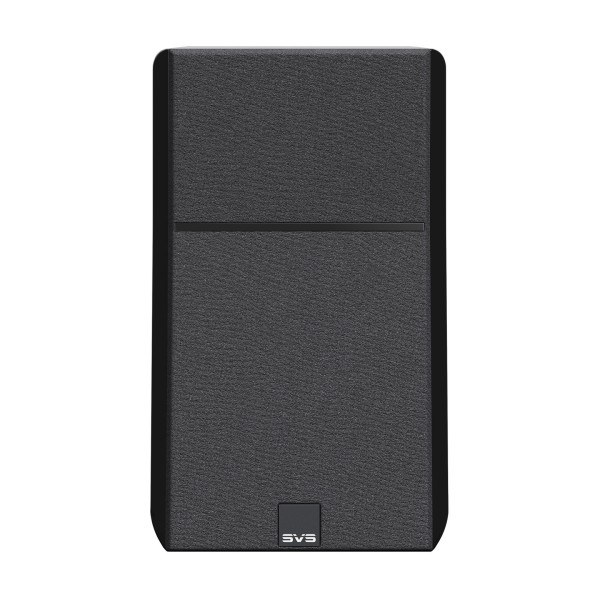

Grille | Cloth grille with magnetic retention system |
Feet | Elastomer stick-on bumper feet |
Cabinet dimensions (H x W x D) | 310 x 190 x 233.9 mm |
Overall dimensions (H x W x D, includes grille, feet, and binding posts) | 314 x 190 x 243 mm |
Shipped dimensions (H x W x D) | 310 x 646 x 429 mm |
Weight unboxed (per speaker) | 6.1 kgs |
Shipped weight | 14.1 kgs |

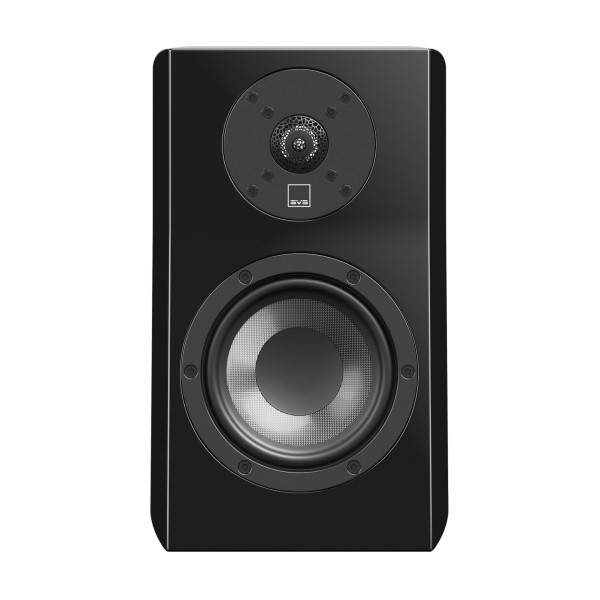

Tweeter | 1” Diamond Coated Tweeter |
---|---|
Tweeter features | FEA-optimised Organic Cell Lattice Diffuser |
Tweeter leads | Silver tinsel leads |
Woofer | 5.25" Woofer |
Woofer features | Long stroke motor and suspensionComposite glass-fiber conePrecision-cast aluminum alloy baskets |
Woofer voice coil | Vented aluminium voice coil former |
Crossover type | 2-way crossover with premium-grade capacitors, inductors, resistors, and heavy-trace printed circuit board |
---|---|
Tweeter-to-Woofer crossover | 1.9 kHz |

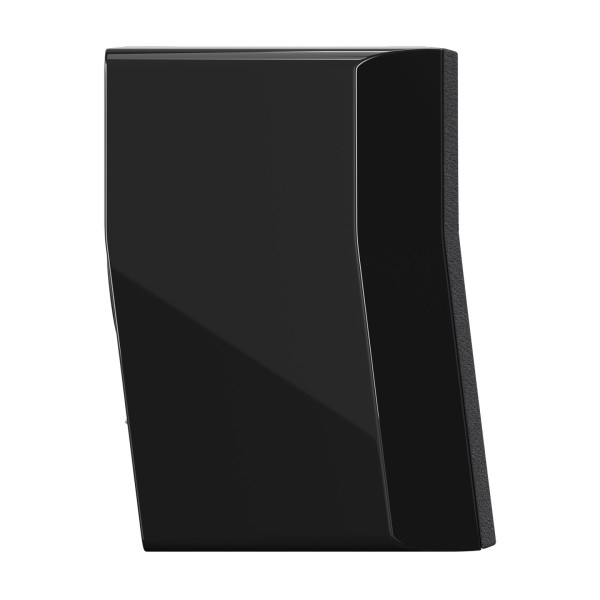

Cabinet architecture | Time-aligned cabinet geometry |
Baffle design | Chamfered front baffle and flush-mounted drivers |
Driver baffle thickness | Extra-thick 1” (25mm) driver baffle |
Cabinet construction | FEA-optimised 3/4” (18mm) cabinet construction, bracing, and acoustic insulation |
Product code | SVS-UE-Elevation-PGB |
---|---|
EAN | 850029050841 |
