Key Features
- C3 Continuous Curved Cone mid/bass drivers
- Hermetically sealed, ‘floating’ high-frequency driver design prevents resonance
- Lower 2.1kHz crossover optimised for balanced transition and improved vocal clarity
- Stiffened 18mm MDF cabinet with Point-2-Point bracing throughout
- Design inspired by the sophisticated Concept range

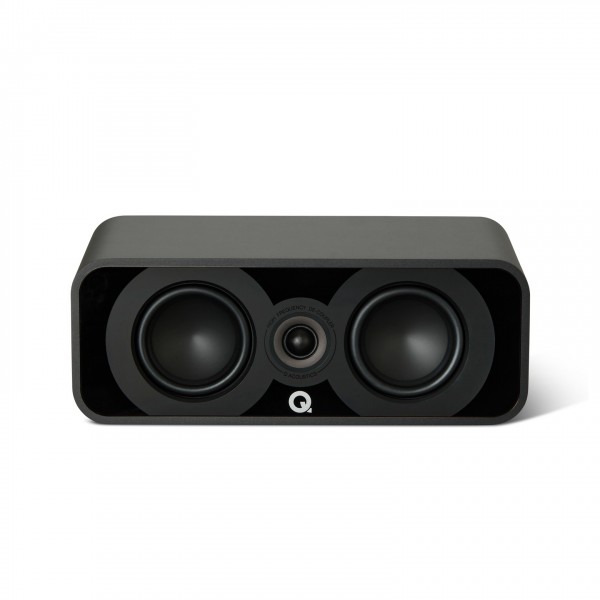

Q Acoustics Q 5090 Centre Speaker, Satin Black Overview
The Q Acoustics Q 5090 Centre Speaker is a refined sound solution that brings clarity and accuracy to your home cinema setup. It features two 4.5? C3 Continuous Curved Cone mid/bass drivers which deliver increased power handling, improved dispersion and an exceptional level of clarity throughout the sonic spectrum. These drivers flank the 1? tweeter, mechanically isolated from the front baffle and sealed to optimise performance and efficiency. With a frequency response of 57 Hz - 30 kHz and sensitivity of 90.5 dB, this speaker will completely enrich sound quality, imaging and immersion whether you?re watching your favourite films in a home theatre or television shows in your living room.
Product Ref: 259661
Full Description
View Full DescriptionC3 Continuous Curved Cone
The Q Acoustics Q 5090 features Continuous Curved Cone (C3) technology that delivers accurate sound reproduction. The C3 continuous curve design allows the cone to move more freely and smoothly. This results in reduced colouration and distortion. Perfectly suited to its role in the centre channel, the C3’s shape also improves dispersion and imaging into your home cinema.
Optimised For Dialogue
Along with the C3 technology implemented in the dual 4.5” mid/bass drivers, the speaker also inherits its voice coil construction, suspension system and cone material from the Concept series. This loudspeaker also has a lower crossover point at approximately 2.1kHz, adjusted to handle a smoother transition to the tweeter and the lower frequencies typically associated with dialogue.
Floating High-frequency Driver
The Q 5090 features a 1” tweeter heavily inspired by the Concept range. Designed to offer a wide frequency response and low total distortion, the resulting detail sounds crisp and natural. To ensure the tweeter works at maximum performance, it has been hermetically sealed and mechanically isolated from the baffle to prevent distortion introduced by the power of the mid/bass drivers.
Cabinet Construction
Released in four distinct colours, the cabinet is constructed from 18mm MDF with internal bracing for superior rigidity. The curved design, characteristic of Q Acoustic speakers, helps to reduce the effect of standing waves, whilst the rear-firing reflex port similarly reduces air turbulence and reinforces low-frequency capabilities.
Point-2-Point Bracing
The Q Acoustic Q 5090 features a Point-2-Point (P2P) bracing system that provides additional support to the cabinet and helps to reduce unwanted vibration and resonance. This P2P system consists of a series of strategically placed wooden supports that connect directly between the front and back panels of the cabinet.
Home Cinema Connection

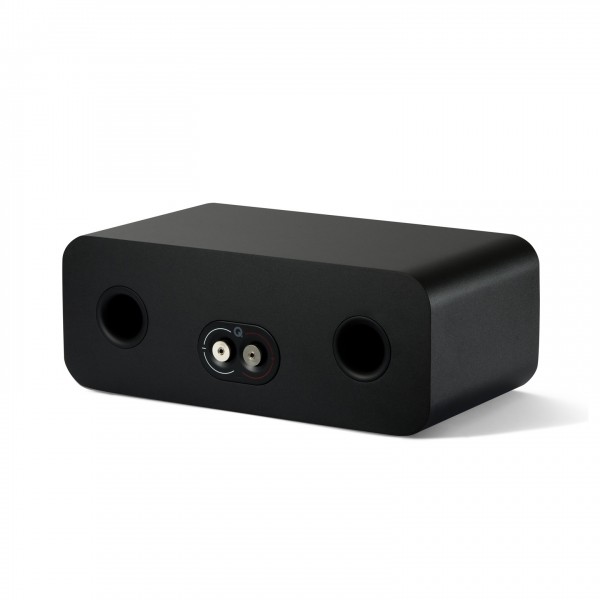

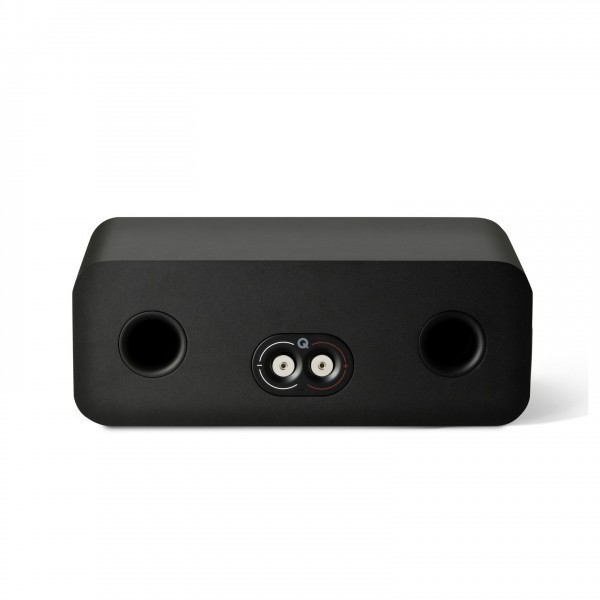

The Q 5090 has a clean and contemporary design, with a dark acrylic baffle motif. The low profile dimensions, no more than 17cm high, make it easy to place, with a new terminal panel featuring inconspicuous metal securing nuts designed to accommodate 4mm plugs, wires or spades with plenty of rear space remaining.
Key Features
- Dual 4.5” Continuous Curved Cone (C3) mid/bass drivers
- C3 Continuous Curved Cone technology for improved dialogue clarity and immersive listening experience
- 1” (25mm) tweeter is flanked by the mid/bass drivers for smoother, fuller sound
- Mechanically isolated, hermetically sealed tweeter housing achieves reduced colouration and minimal THD
- Dynamic 57 Hz - 30 kHz with crossover at approximately 2.1kHz specialised to handle dialogue
- Rear-firing bass reflex augments bass response and limits the effect of turbulence on sound
- 18mm MDF cabinet supported by Point-2-Point (P2P) internal bracing for minimal vibrations
- New low-profile metal securing nuts designed to take up minimal rear space
What’s in the box
- Q Acoustics Q 5090 Centre Speaker
- 2 x Foam bungs
- Owner’s manual
Specifications
General
| Dimensions (per loudspeaker / W x D x H) | 430 x 243 x 164 mm |
|---|---|
| Weight (per loudspeaker) | 8.5 kg |
Audio
| Bass unit | 2 x 110 mm (4.5 in) |
|---|---|
| Treble unit | 1 x 25 mm (1.0 in) |
| Frequency response(-6dB) | 57 Hz - 30 kHz |
| Nominal impedance | 6 Ω |
| Minimum impedance | 3.2 Ω |
| Sensitivity (2.83V @ 1kHz) | 90.5 dB/w/m |
| Recommended amplifier power | 25-150 W |
| Crossover frequency | 2.1 kHz |
| Effective volume | 7.8 L |
