Key Features

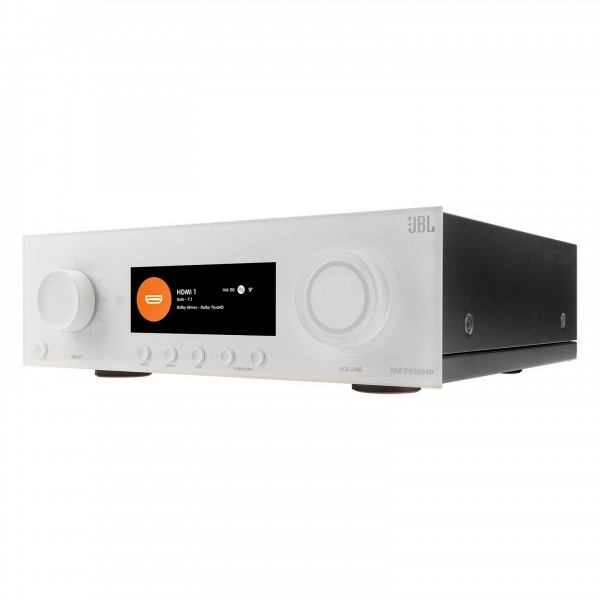

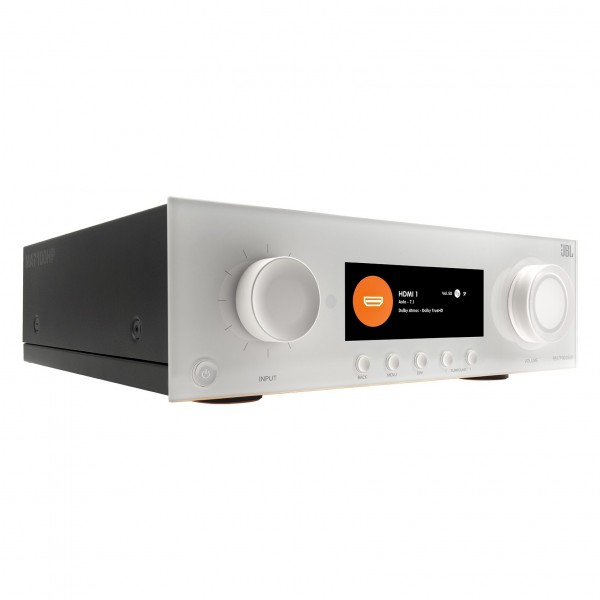

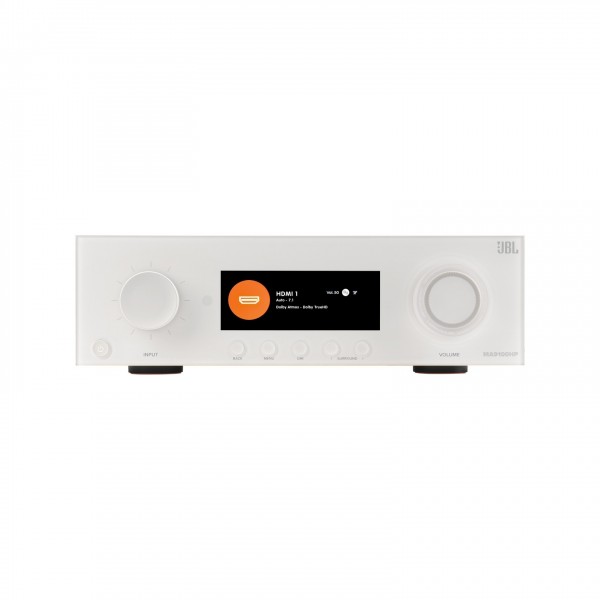

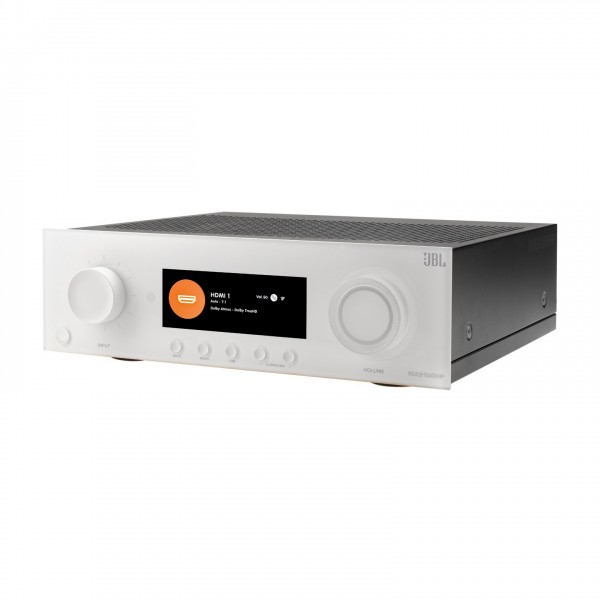

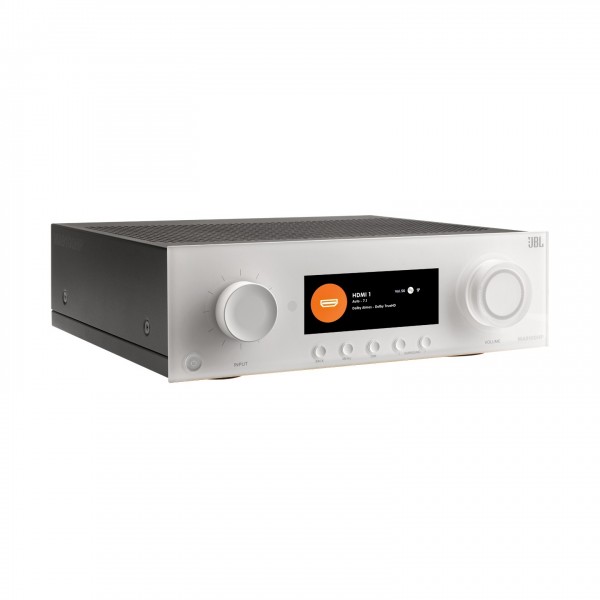

The JBL MA9100HP is the pinnacle of JBL's MA series AV receivers, perfect for premium home cinema setups with stunning audio and video performance. This 9.2-channel AVR delivers a powerful 140W RMS per channel, suitable for larger rooms and more powerful speaker setups. As one of the two High-Performance models in the range, it's also Dirac Live Ready, ensuring you can fine-tune your system for optimal acoustics in any room. Gamers will appreciate the HDMI 2.1 support, offering features like Variable Refresh Rate (VRR) and Auto Low Latency Mode (ALLM) for smoother gameplay, quicker response times, and reduced input lag.
Enjoy immersive Dolby Atmos and DTS:X decoding, ensuring support for lifelike spatial audio that puts you in the centre of your entertainment. With six HDMI inputs, including three 8K and three 4K, and eARC support, the MA9100HP integrates seamlessly with your TV and other devices for a streamlined setup. This AV receiver also supports a variety of file formats and high-resolution audio playback for music enthusiasts thanks to its in-built 192kHz 24-bit DAC.
Beyond the scope of TV and film, the MA9100HP is also a versatile hub for your other entertainment needs, featuring optical, coaxial, analogue, and dedicated MM phono inputs for turntables. Stream music wirelessly with built-in Tidal and Spotify Connect support, Bluetooth, Apple AirPlay 2, and Google Chromecast. It?s also Roon Ready. You'll find the setup simple, with an easy-to-use on-screen guide and EZ Set EQ for quick two-minute acoustic correction from an iOS or Android mobile device. Customisable under glow lighting lets you match the receiver to your gaming console or decor, adding a stylish touch to your setup. Transform your living space into a high-end JBL home theatre.
Product Ref: 301336
HDMI eARC | Yes |
---|---|
HDMI Audio Return Channel | Yes |
8K HDMI input connectors (HDMI 2.1, HDCP 2.3 up to 8K/60Hz, 4K/120Hz) | 3 |
HDR 10+, Dolby Vision | Yes, Yes |
File format | MP3 / MPEG-4 AAC: up to 48 kHz / 320kbpsWMA: up to 48 kHz / 192kbpsALAC: up to 192 kHz / 24-bitFLAC: up to 192 kHz / 24-bitPCM / WAV / AIFF: up to 192 kHz / 24-bit |
---|---|
Pure Direct | Yes |
EZ Set EQ | Yes |
DA converter | 192kHz/24-bit |
Channels | 9.2 |
Rated Power @ 8Ω (20Hz – 20kHz, 2 channels driven, 0.5 THD max) | 140 W RMS |
Rated Power @ 4Ω (20Hz – 20kHz, 2 channels driven, 0.5 THD max) | 240 W RMS |

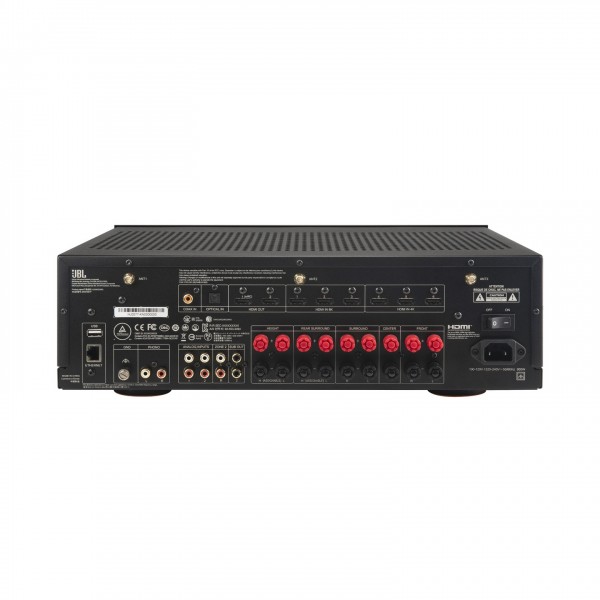

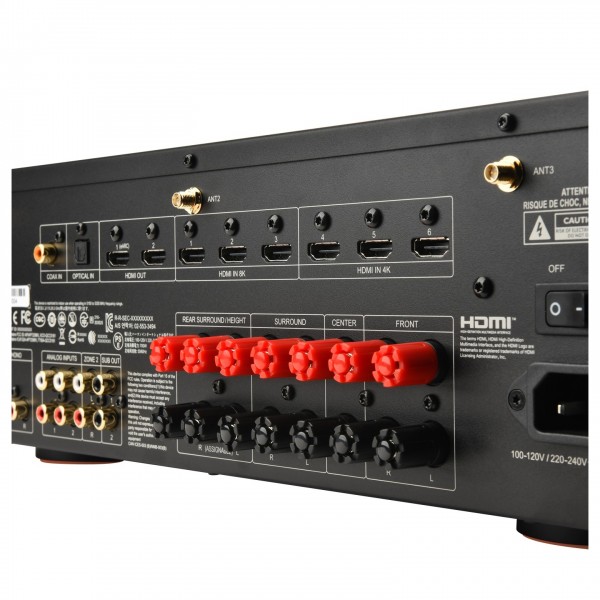

HDMI Input/Output | 6/2 |
Wi-Fi | Yes (2.4/5GHz) |
Bluetooth receive | Yes (v5.3, Low Energy, APTX HD, APTX Adaptive) |
Bluetooth transmit | Yes |

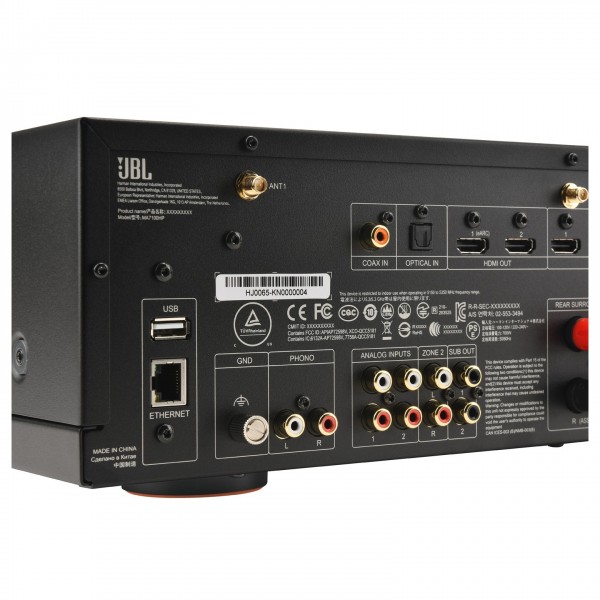

Digital Audio Input | 1 Coax, 1 Optical |
Stereo analog input | 2 single-ended RCA (line level), 1 Moving Magnet Phono input + Ground |
Pre-Out (single-ended RCA) | Stereo Zone 2, Subwoofer 1, Subwoofer 2 |
Dimensions incl. feet and speaker terminals (H x W x D) | 135.0 x 432.0 x 396.4mm (5.3” x 17.0” x 15.6”) |
---|---|
Weight | 7.6kg (16.8lb) |
Product code | JBLMA9100HPWHTEU |
