Key Features

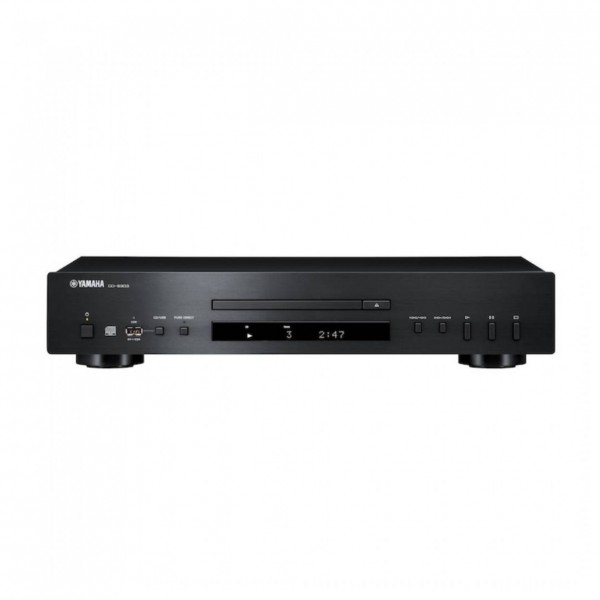

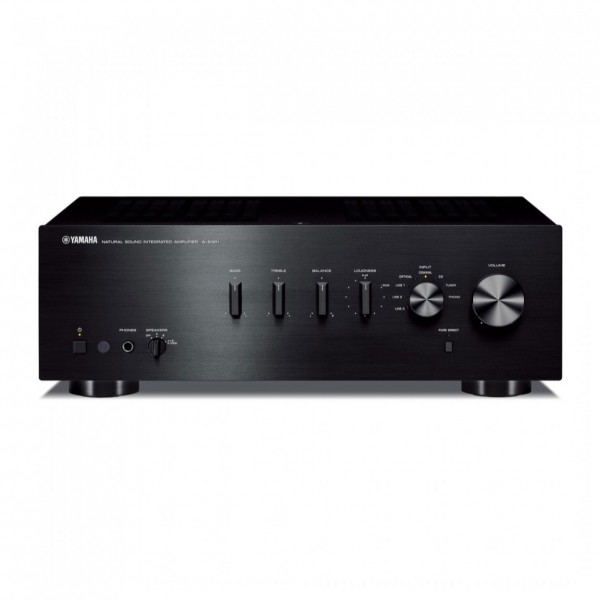

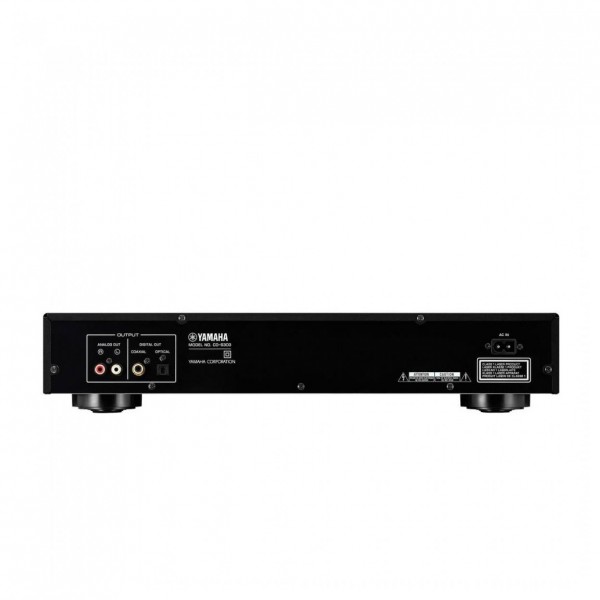

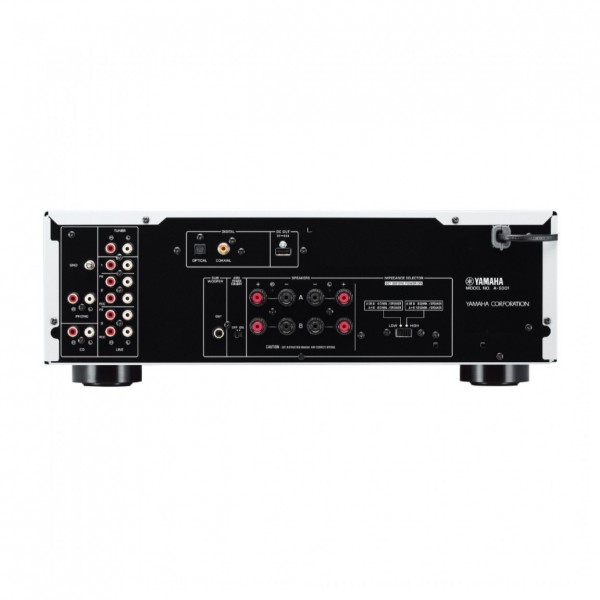

The Yamaha A-S301 Stereo Amp & CD-S303 CD Player Hi-Fi Package offers you versatile connection options for playback of all your favourite sources including CD, Optical, USB digital and line-level inputs. Blending the finest sound with superb construction plus plentiful features, the Yamaha AS301 offers a complete package with inputs to cover all your analogue sources. The CD-S303 is a high-quality CD player that's easy to operate and includes special features like Pure Direct, Intelligent Digital Servo, USB and MP3/WMA/LPCM/FLAC compatibility.
Product Ref: 228981
ToP-ART Design and ART Base Ensure Optimum Sound When processing and transmission of the audio signal is simple and direct there is less chance of it being affected by noise and distortion. Yamaha’s amplifier design technology called ToP-ART features an I/O (input to output) Direct Symmetrical Design, with left and right channels organised in a straight, symmetrical layout for highest signal purity. In addition, the ART (Anti-Resonance and Tough) Base bottom chassis and a solid centre bar provide high-rigidity support and vibration damping. These Yamaha design innovations contribute to this amplifiers’ rich audio reproduction with abundant musicality.
Custom-made power transformer, custom-made block capacitors, two direct signal path speaker relays, one-point grounding system, aluminium-extruded heat sinks and other top-quality parts effortlessly handle demanding audio signal conditions. The quality of each individual part, as well as how they work together, basically determines the sound quality of any component. Yamaha uses only very high quality parts, carefully selected and tested.
Type | Single |
---|---|
Disc Compatibility | CD, CD-R/RW |
Signal-to-Noise Ratio | 105 dB (CD) |
Dynamic Range | 96 dB |
Harmonic Distortion | 0.003 (CD) |
Frequency Response | 2 Hz-20 kHz (CD) |
Output | Optical, Coaxial and Analog RCA |
Dimensions (W x H x D) | 17 1/8" x 3 3/8" x 10 1/4" |
Weight | 7.7 lbs. |
Minimum RMS Output Power (8 ohms, 20 Hz-20 kHz) | 60 W + 60 W (0.019 THD) |
---|---|
Maximum Power (4 ohms, 1kHz, 0.7 THD, for Europe) | 95 W + 95 W |
High Dynamic Power/Channel (8/6/4/2 ohms) | 95 W + 95 W |
Damping Factor | 210 |
Frequency Response | 10 Hz-100 kHz +/-1.0 dB |
Total Harmonic Distortion (8 ohms, 20 Hz-20 kHz) | 0.019 (50 W/8 ohms) |
Signal-to-Noise Ratio (CD) | 99dB (input shorted, 200 mV) |
Audio In / Out | 8 / 2 |
Digital Input | Yes (optical / coaxial) |
Subwoofer Out | Yes |
DC out | Yes |
Pure Direct | Yes |
ToP-ART | Yes |
Standby Power Consumption | 0.5 W |
Dimensions (W x H x D) | 435 x 141 x 333 mm; 17-1/8” x 5-1/2” x 13-1/8” |
Weight | 9.0 kg; 194.8 lbs. |
