Key Features

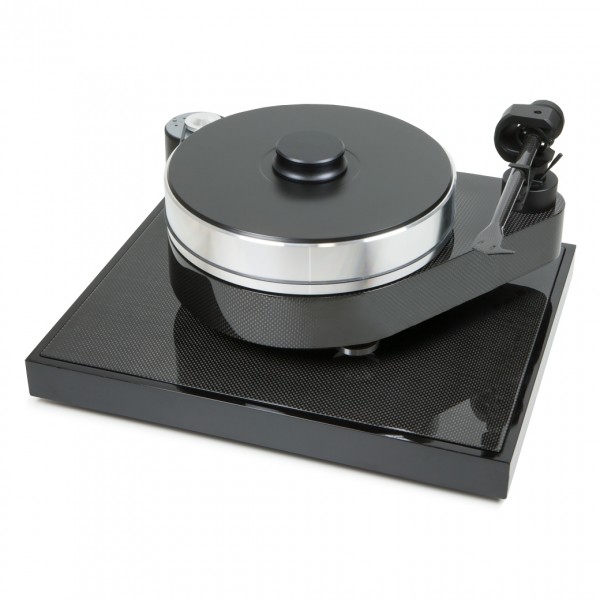

For some years the legendary RPM series from Pro-Ject was one of the leading designs in analogue sound reproduction. The iconic RPM drop shaped base chassis resulted in a superior resonance characteristics compared to rectangular shaped chassis. Progressing from the foundations that the RPM 10 was built from, the years of research and development have benefited substantially in producing the RPM 10 Carbon.
Product Ref: 204092
“Like the best Belgian chocolate, it’s sultry and smooth yet has real flavour too. By this I mean you can really get a sense of the recording studio and the tonality of the final mix, and every disc sounds different.Thanks in no small part to the excellent Cadenza Black, you can enjoy the silky treble and its superb filigree detailing…”
For some years the legendary RPM series from Pro-Ject was one of the leading designs in analogue sound reproduction. The iconic RPM drop shaped base chassis resulted in a superior resonance characteristics compared to rectangular shaped chassis. Progressing from the foundations that the RPM 10 was built from, the years of research and development have benefited substantially in producing the RPM 10 Carbon.
The RPM 10 Carbon uses a new extra-heavy chassis. It features a special CNC-machined MDF base with resin coated steel pellets to form an extra-heavy and precise sandwich construction. A special complex heat treatment and carbon surface coating ensures superior low resonance levels. The mass-loaded chassis is effectively decoupled from its surface using magnetic feet.Combined with a new special polished aluminium platter with internal TPE damping and a vinyl layer on top, the inverted ceramic main bearing delivers an absolutely stable turntable speed with extra-low rumble. The new RPM heavy weight motor integrates an electronic DC/AC power generator to clean up generated noise usually associated with AC power. To further enhance the RPM 10 Carbon the extra heavy outboard motor also consists of a precise motor control allowing for easy switching between 33 and 45 RPM.The highly acclaimed 10”cc Evolution tonearm is made from a one piece conical tube of carbon fibre with an inverted bearing design which offers ultimate rigidity and internal damping to minimise all unwanted vibrations. The 10”cc Evolution tonearm’s design makes it suitable for almost any high quality MM and MC cartridges.
The RPM 10 Carbon comes with the Ground-IT Carbon base and a top grade 5P Connect-IT Phono CC cable with RCA plugs (An XLR option is also available to special order).
Nominal Speeds: | 33/45 RPM |
---|---|
Motor Completely Decoupled: | Yes |
Effective Tonearm Length: | 10" (254mm) |
Effective Tonearm Mass: | 8.5g |
Cartridge | Not included |
Compatible CartridgeMoving Magnet | Ortofon 2M RedOrtofon 2M BlueOrtofon 2M BronzeOrtofon 2M Black |
Compatible CartridgeMoving Coil | Quintet RedQuintet BlueQuintet BronzeQuintet Black |
Overhang: | 16mm |
Tracking Force: | 10 - 35mN |
Speed Drift: | +/- 0.10% |
Signal to Noise: | -75dB |
Output Voltage: | 15V / 1600mA DC |
Power Consumption: | 15W Max. / <0.3W Standby |
Dimensions (W x H x D): | 480 x 210 x 330mm |
Weight: | 22kg |
