Key Features

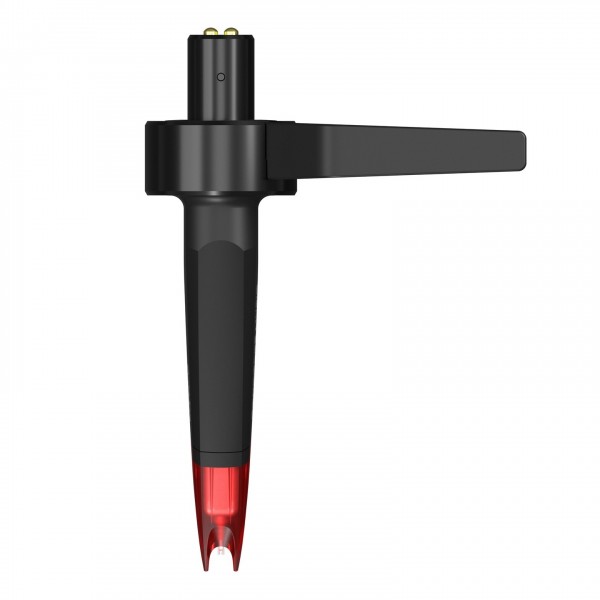

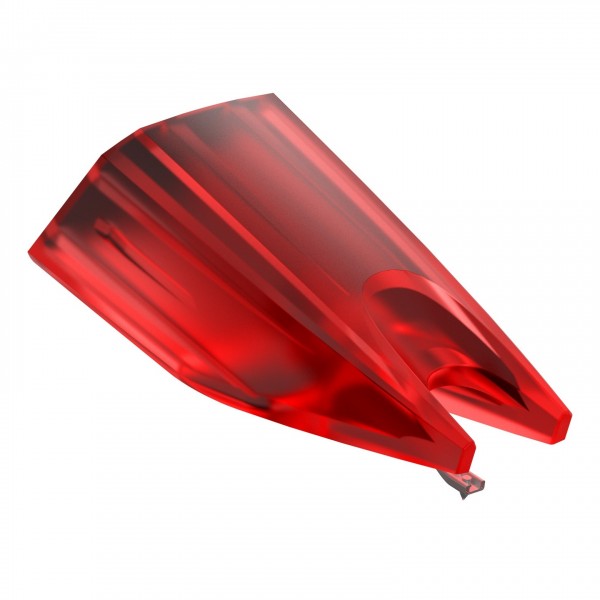

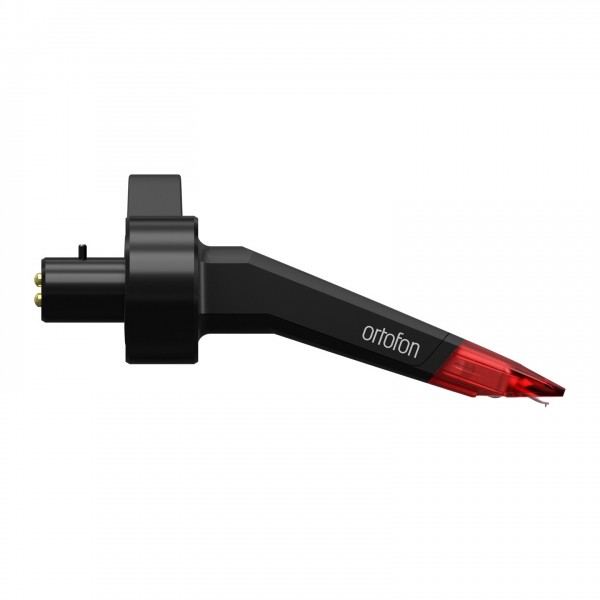

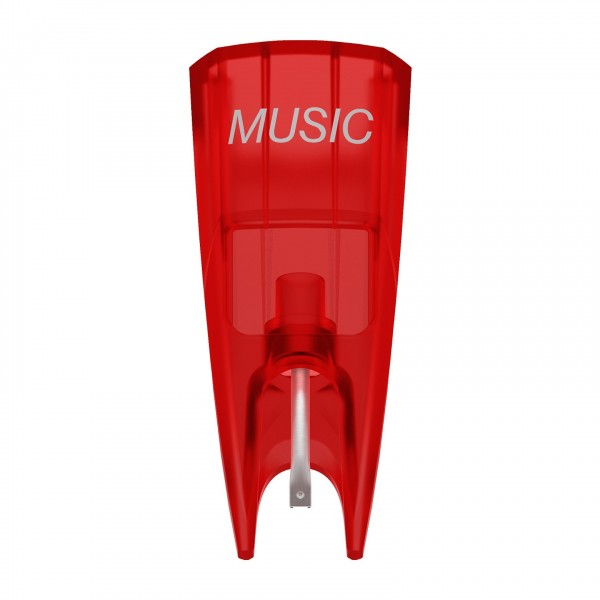

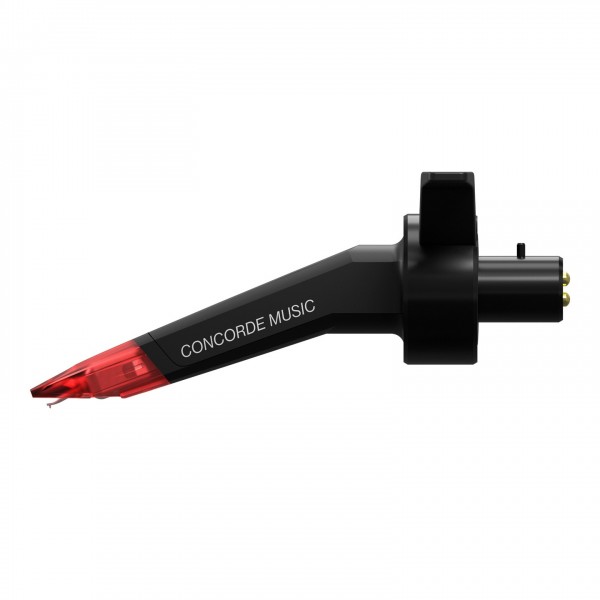

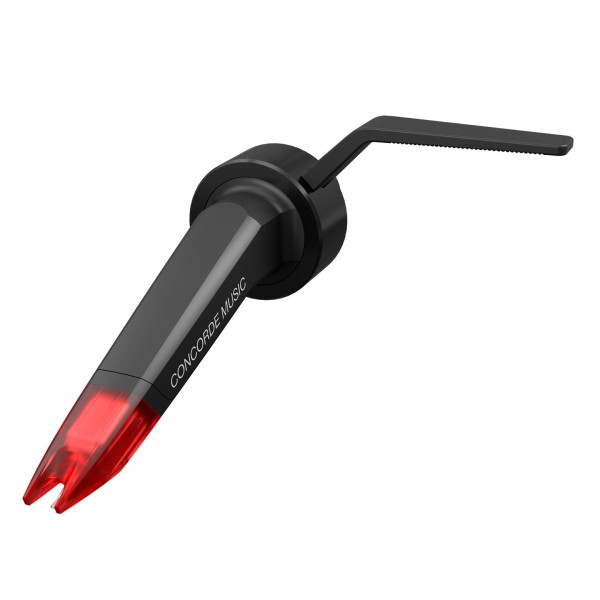

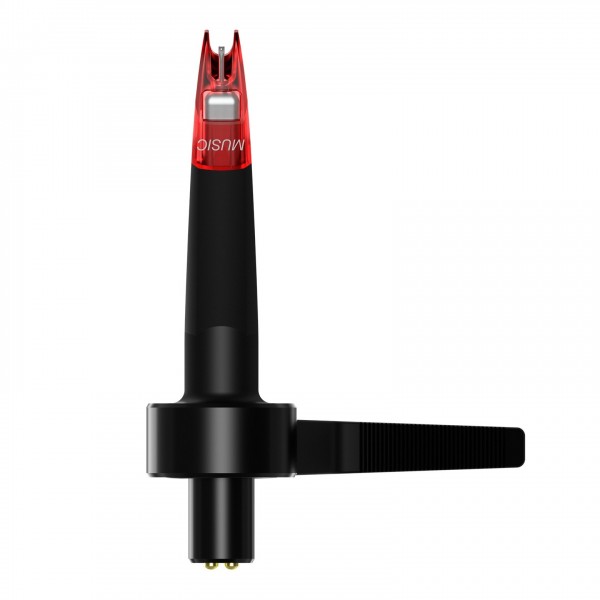

The Ortofon Concorde Music Red Moving Magnet Cartridge features an Elliptical diamond stylus, precisely mounted on a high-quality aluminium cantilever for excellent record tracking. Its integrated rubber suspension, exclusively developed by Ortofon, enhances the cartridge's performance by reducing vibrations to ensure high-quality vinyl playback. The Concorde Music Red even includes an advanced quad-coil generating system with split-pole pins, which elevates channel balance and separation to deliver an immersive sound.
This cartridge has been designed to fit every stylus in the Concorde Music series, allowing you to enhance your system all the way up to the Concorde Music Black LVB 250. Its bayonet/SME connector also allows for a quick-and-easy installation to any S-shaped tonearm. For vinyl enthusiasts who value a stable and precise sound, the Ortofon Concorde Music Red cartridge is a must-have.
Product Ref: 299896
Channel balance at 1 kHz | 1.5 dB |
---|---|
Output voltage at 1 kHz, 5cm/sec | 6mV |
Channel separation at 1 kHz | 22 dB |
Channel separation at 15 kHz | 15 dB |
Frequency response 20 Hz - 20 kHz | +3 / -1 dB |
Tracking ability at 315Hz at recommended tracking force | 80 µm |
Compliance, dynamic, lateral | 15 µm/mN |
Stylus type | Elliptical diamond on Aluminium cantilever |
Stylus tip radius | r/R 8/18 µm |
Tracking force, recommended | 1.8 g |
Tracking angle | 20° |
Internal impedance, DC resistance | 1.27 kΩ |
Cartridge colour | Black/Red |
Cartridge weight | 18 g |
Recommended load resistance | 47 kΩ |
Internal inductance | 815 mH |
Recommended load capacitance | 150-300 pF |
Product Code | ORTOCONCORDERED1A |
