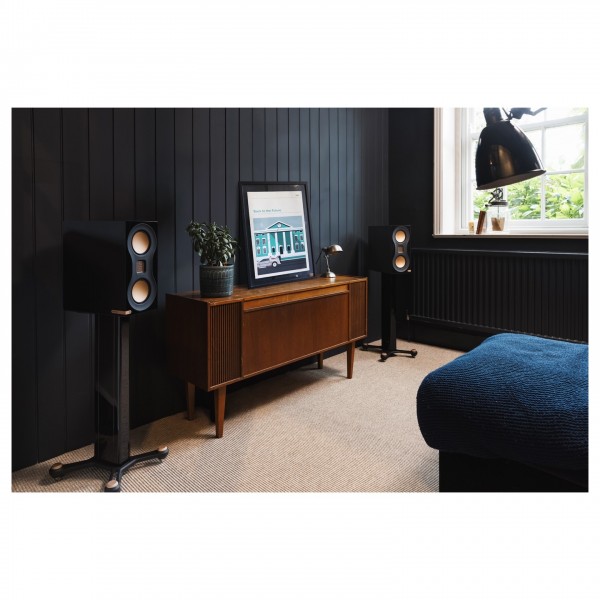

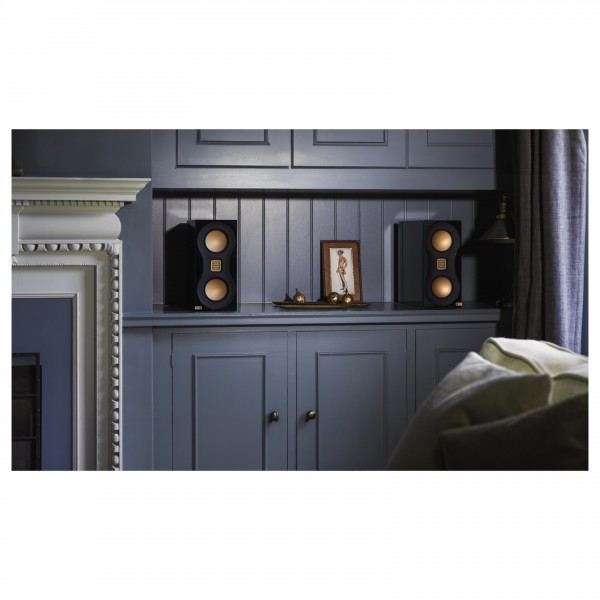

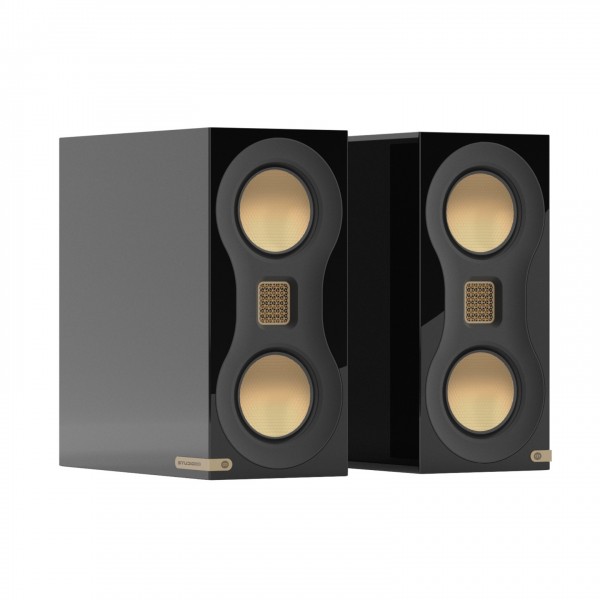

The Monitor Audio Studio 89 Bookshelf Speakers originate from the iconic Studio Series, established in a decade when music revolutionised our engagement with artists and self-expression defined a generation. Since the 1980s, home audio has evolved significantly and the Studio 89s are a modern reinterpretation of this legacy. Redesigned for the digital age, they benefit greatly from over a quarter-century of industry-leading innovation.
At the core of their performance is a 'point-source' mid-tweeter-mid driver array, consisting of a pair of 4.25-inch mid-bass drivers flanking the pleated high-frequency transducer. These drivers are specially crafted with advanced C-CAM layers and a powerful motor system, including an 85mm diameter magnet structure that's larger than the cone itself, providing high-level control and pristine pistonic performance. In between the mid-bass drivers is the MPD III transducer, which delivers wider dispersion and a lifelike high-frequency presentation.

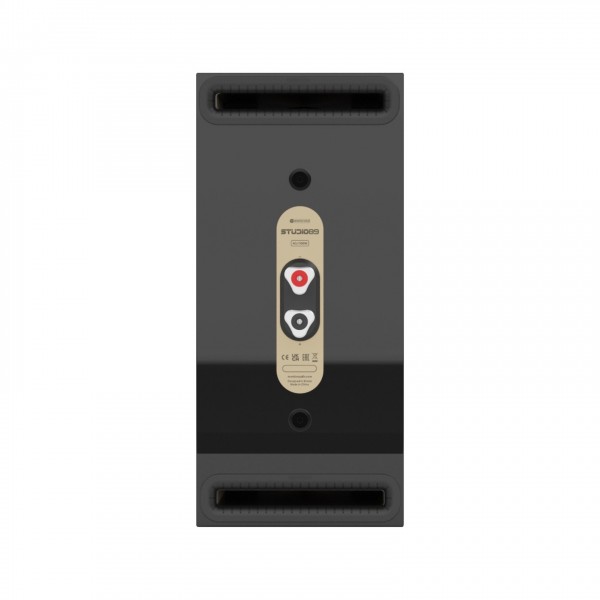

With the drivers contained in a rigid, HiVe II slot-ported cabinet construction, the Studio 89s enhance sound quality by reducing potential turbulence and air noise. The meticulously configured crossover ensures untarnished frequency transmission, meaning you'll hear your music the way it was intended with negligible distortion. Despite their compact size, the Studio 89 speakers deliver a large soundstage and excellent imaging, making them perfect for both small and large spaces.

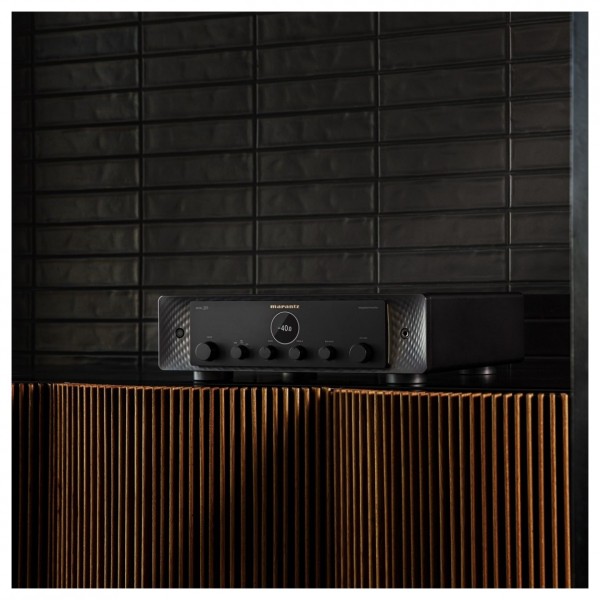

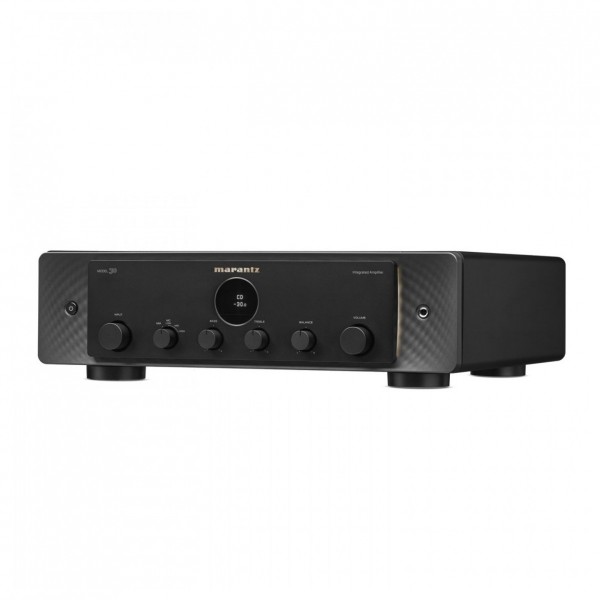

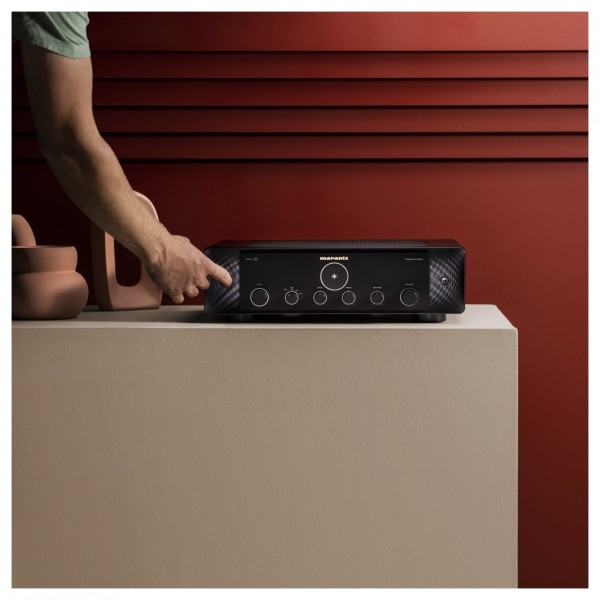

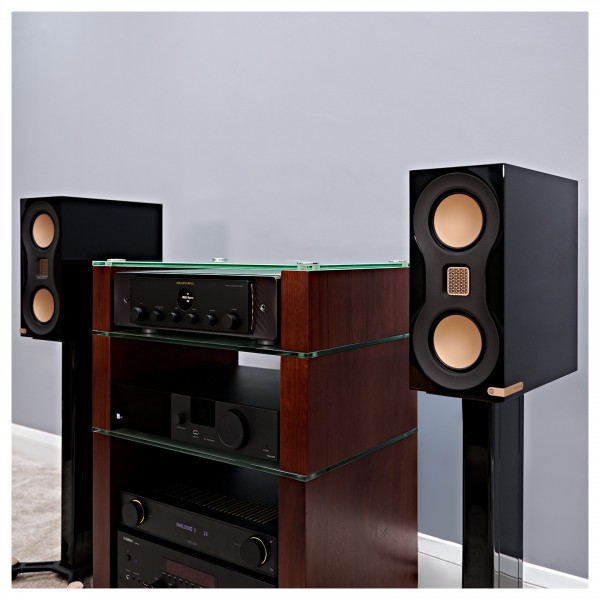

The Marantz Model 30 is an integrated amplifier that has been professionally tuned by experts at Marantz who are dedicated to delivering highly expressive, high-fidelity music. Premium components, additional shielding, and efficient circuit paths have all been utilised to promote signal integrity throughout this model. Capable of delivering 100W at 8Ω with an impeccable THD rating of 0.005%, the Model 30 has the capacity to reliably present your music as the artist intended.
Building on over half a century of innovation, Marantz are passionate about audio and know exactly what is expected at this level of equipment. The Model 30 features easy control, an MM / MC phono stage with settable input impedance, dedicated headphone output, as well as pre-outs and power amplifier inputs, letting you integrate the Model 30 into an existing HiFi system however you want. Marantz has used a strong chassis with a heavy steel top to both dampen vibrations as well as promote longevity.
The AudioQuest Rocket 22 Speaker Cable elevates sound quality with its implementation of higher-purity copper as the internal conductor, resulting in a significant audio improvement. Its conductors are intricately arranged in concentric layers, spiralling in opposite directions, carefully engineered to minimize signal interference and enhance signal transfer efficiency. Advanced insulation materials are used in the Rocket 22 to reduce signal loss and ensure overall signal integrity, further contributing to its exceptional performance. The cable's substantial thickness and premium feel enhance the user experience when connecting systems, adding a touch of luxury to your audio setup.
Package Includes
Monitor Audio Studio 89 Bookshelf Speaker Specifications
General
Model | Studio 89 |
System Format | 2-Way |
Sensitivity (2.83v @ 1m, Free-Field) | 86dB |
Recommended Amplifier Power (RMS into 4 Ohm, Music Signal) | 50 – 300 W |
Continuous Power Handling (RMS into 6 Ohms, Pink Noise with 6dB Crest Factor) | 150 W |
Nominal Impedance | 6 Ohms |
Minimum Impedance (20Hz to 20kHz) | 4.2 Ohms @ 220 Hz |
Drive Unit Complement | 2 x 4 1/4” (108 mm) RDT III Bass-mid Drivers1 x MPD III Tweeter |
Frequency Response Free-Field (-6dB) | 53 - 60 kHz |
Frequency Response, In-Room (-6dB) | 48 Hz - 60 kHz |
Maximum Peak SPL (single speaker @1m Z-Weighted) | 113 dB |
Bass Alignment | Ported |
Port Tuning Frequency | 58 Hz |
Crossover Frequency | 2400 Hz |
External Dimensions including terminals (H x W x D) | 340 x 157 x 361 mm |
Weight (each) | 7.6 kg |
Product code | SSTUDIO89BG |
Accessories
What's in the box | Monitor Audio Studio 89 Bookshelf Speakers (Pair)Hex key |
Marantz Model 30 Integrated Amplifier Specifications
Physical Aspects
Product Dimensions (W x D x H) | 443 x 431 x 130 mm |
Packaged Dimensions (W x D x H) | 534 x 522 x 255 mm |
Product weight | 14.8 kg |
Packaged weight | 17.6 kg |
Features
Aluminium Extrusion Heat Sink | Yes (Separate) |
Balance / Bass / Treble / Loudness | Yes / Yes / Yes / No |
Channels | 2 |
Current Feedback Topology | Yes |
Customised Components | Yes |
HDAM Version | SA3, SA2 |
High Grade Audio Components | Yes |
Phono EQ: Standard / Marantz Musical / Marantz Musical Premium | No / No / Yes |
Power Transformer: Toroidal / El | SMPS |
Symmetric PCB Layout | Yes |

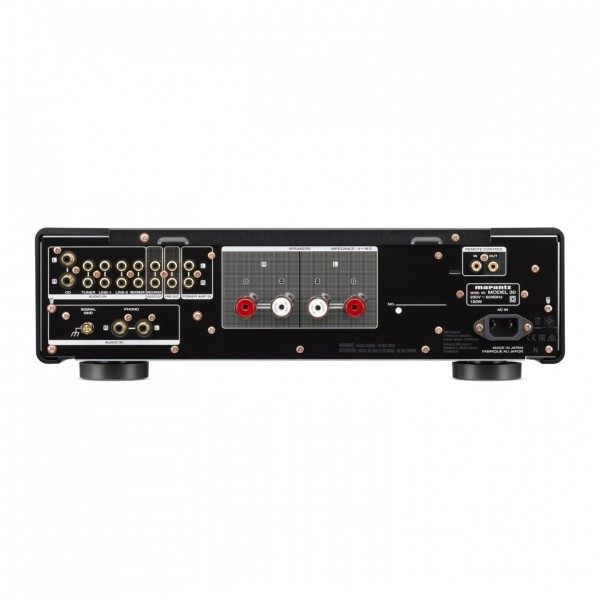

Inputs / Outputs
Audio Inputs | 6 |
Audio Outputs | 1 |
D-Bus | Yes |
Gold Plated Cinch | Yes |
Headphone Out | Yes |
Number of Terminals | 2 |
Phono Input: MM / MC | Yes / Yes |
Power Amp Direct IN | Yes |
Pre-out / Main-in | Yes / No |
Speaker Terminals | Marantz SPKT-100+ |
Others
5mm aluminium top plate | No |
BI-AMP and Multichannel option | No |
Double Layer Bottom Plate | Yes |
Input buffer amp (all inputs / CD only) | No / No |
Linear Drive Power Supply | Yes (pre-amplifier stage) |
Linear volume control | Yes |
Low noise LCD display | No |
Low Noise OLED display | Yes |
Marantz Musical Digital Filtering | No |
Power Amp direct | No |
Schottky diodes | Yes |
Source Direct | No |
System block shielding: Copper / metal / none | Yes / No / No |
Specifications
Damping Factor | 500 |
Frequency Response | 5 Hz - 50kHz |
Input Sensitivity: High level | 220 mV / 13 kohm |
Input Sensitivity: MC | 250 |
Input Sensitivity: MM | 2.3 mV / 39 kohm |
Power Output (8 / 4 Ohm RMS) | 100 W / 200 W |
Signal to Noise Ratio: High level | 107 dB(2V input/Rated output) |
Signal to Noise Ratio: MM / MC | 88 / 75 dB |
Total Harmonic Distortion | 0.005% |
General
Power Consumption | 130 W |
Standby Consumption | 0.2 W |
System Remote Function | Yes |

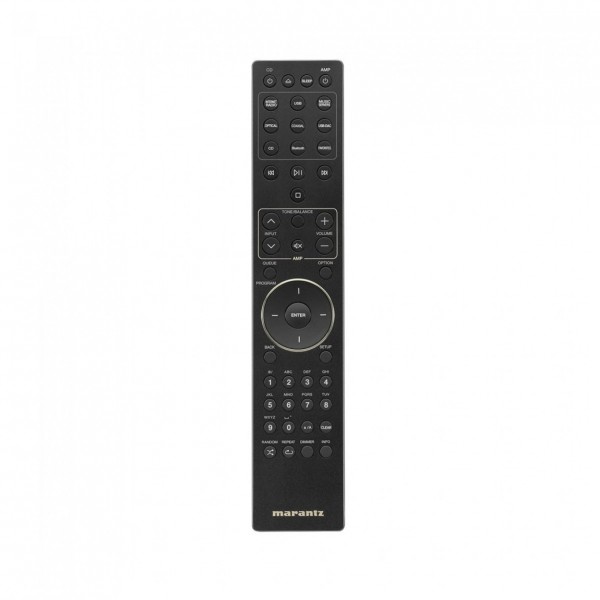

Remote Control | RC002PMND |
Auto Power Off | Yes |
Detachable Power Cable | Yes |
Metal Front Panel | Yes |
Available Colours | Black / Silver |
Product code | MODEL30/T1B |
Accessories
What's in the box | Marantz Model 30 Integrated AmplifierPower cordRemote control (Model: RC002PMND, w/ 2 x AAA batteries)Quick start guide and information sheets |
