Key Features
- Compact 778x amp & speakers
- Class AB integrated amp with ESS Sabre32 ES9018K2M DAC and dedicated MM phono stage
- Bluetooth 5.0 supports aptX and AAC codecs for seamless wireless listening
- Select a pair of bookshelf speakers from various high-quality brands such as JBL and KEF
- Can't find the bundle you want? Call 01706 878444 and we'll make the perfect package for you!
Mission 778x Stereo Hi-Fi System Builder Overview
The Mission 778x Stereo Hi-Fi System Builder lets you create your own hi-fi system with the Mission 778x Amplifier as its focal point. This Class AB amp delivers 45W of power, while the ESS ES9018K2M DAC and Bluetooth technology offer a captivating wireless sound. Using the dropdown lists, you pick a pair of bookshelf speakers from an array of renowned brands, giving a dynamic stereo sound. To complete the setup, you can select a cable pack that best suits your needs, guaranteeing top-notch connectivity. This bundle offers flexibility and savings, making it easy to create your ideal audio setup with accumulative discounts at AV.com.
Product Ref: 288461
Full Description

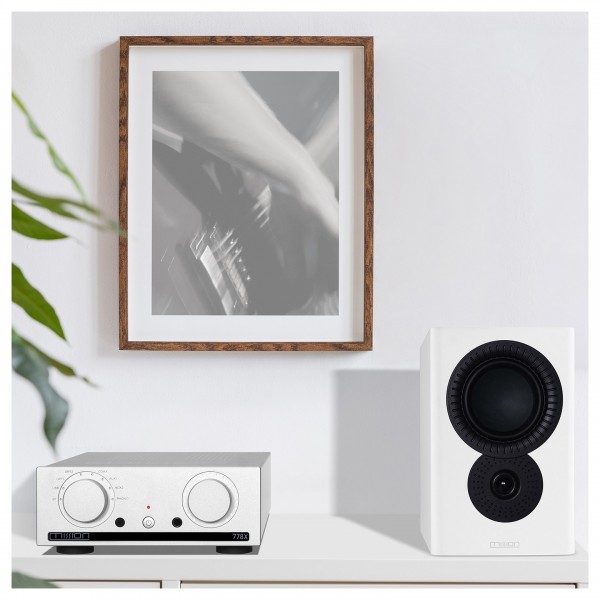

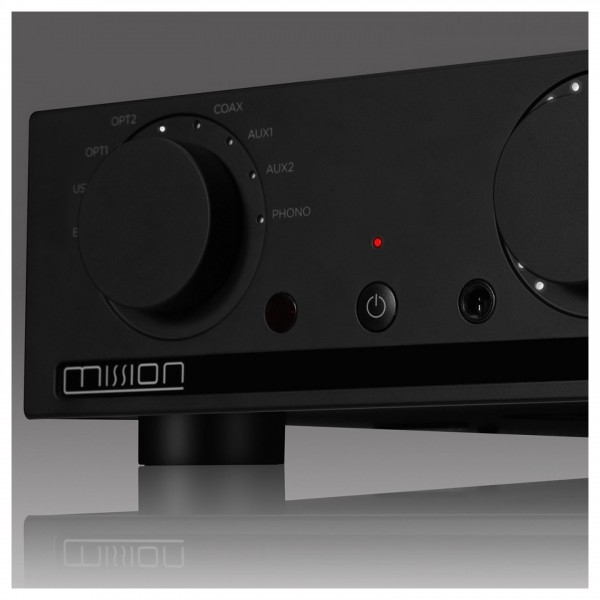

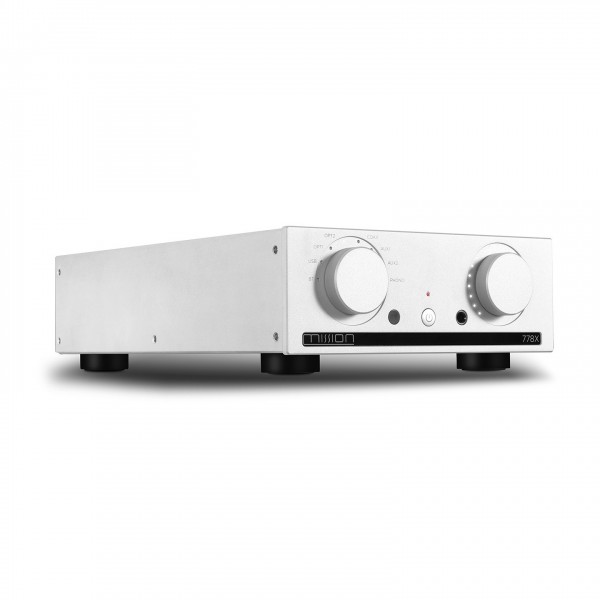

Mission 778x Integrated Amplifier
"Mission’s 778X is a superb integrated amplifier with a wonderfully balanced sound and a comprehensive spec sheet"
Mission 778x Integrated Amplifier
The Mission 778x Integrated Amplifier is a compact and 80s-inspired hi-fi amplifier with a wide range of connectivity options that each deliver refined, precise audio quality. Offering both coaxial and optical inputs, the 778x enables direct connectivity to digital devices. It also has three studio-grade RCA inputs, including a moving magnet (MM) phono input for turntables, enabling exceptional analogue connectivity. If streaming is more appealing to you, the 778x has Bluetooth 5.0 built-in letting you stream your favourite music wirelessly from your smart devices in aptX and AAC codecs.
The 778x has a Class-AB power amplifier design that houses an efficient 200VA toroidal transformer. It also has an excellent pre-amp section built in ready to optimise your favourite music, plus a hi-res ES9018K2M DAC offering a sampling rate of up to 384kHz (PCM) and DSD256. Control your volume and source selection with ease via the beautiful, 80s-style rotary dials.
Mission 778x Integrated Amplifier Specifications
Model
| Model | 778X |
|---|---|
| General Description | Digital-to-Analogue ConverterStereo Amplifier |
| Design Philosophy and Core Technology | Integrated Amplifier (45 watts @8 ohms, 65 watts @4 ohms)ESS Sabre32 ES9018K2M Reference ChipUltra-low Noise Digital Audio File Compability (384kHz PCM, DSD256)Bluetooth 5.0 (aptX / AAC) SupportDedicated High-performance, Low-noise MM Phono StageHeadphone AMP With High-speed Output Signal TransitionUSB Upgrade SupportLarge Tractile Controls With LED Level Indicators |
| Inputs | 1 x Coaxial2 x Toslink Optical1 x PC USB1 x Bluetooth (aptX/AAC)2 x AUX1 x RCA (Phono MM) |
| Outputs | 1 x Coaxial1 x Toslink Optical1 x RCA (PRE Out) |
| Sampling Frequency | Optical / Coaxial: 44.1kHz-192kHz;PC USB 44.1kHz-384kHz(PCM) / DSD64, DSD128, DSD256 |
Preamplifier Section
| Gain (max.) | +0dB (Line)+47dB (Phono MM) |
|---|---|
| Input Sensitivity | 540mV (Line, Volume = 0dB); 2.5mV (Phone MM, Volume = 0dB) |
| Input Impedance | 10K (AUX); 47K//100pF (Phono MM) |
| Total Harmonic Distortion (THD) | 110dB (A-weighted) |
DAC
| D to A Converter | ESS Sabre32 ES9018K2M |
|---|---|
| Resolution | 32-bit |
| Max. Sampling Frequency | Optical/Coaxial: 192kHz;USB: PCM 384kHz / 11.2896MHz (DSD256) |
| Total Harmonic Distortion (THD) | < 0.001 (1KHz @ 0dBFS) |
| Output level (0dBFS, 1KHz) | 2.1Vrms |
Power Amplifier Section
| Gain | +31dB |
|---|---|
| Rated Power Output | 2 x 45W (@8ohms)2 x 65W (@ 4 ohms) |
| Frequency Response (ref. 1kHz) | 20Hz-20KHz (± 0.5dB) |
| Total Harmonic Distortion (THD) | 108dB (ref. 45W, A-weighted) |
| Crosstalk @1K | >80dB (ref.1W) |
| Standby Power Consumption | <0.5W |
Headphone Amplifier
| Total Harmonic Distortion (THD) | < 0.01 (1kHz, 50mW ) |
|---|---|
| Output Impedance | 4.7 ohms |
| Load impedance | 20-600 ohms |
General
| Dimensions (mm) (W x H x D) | 236 x 98 x 380.6 mm |
|---|---|
| Carton Size (mm) ( W X H X D) | 450 x 392 x 175 mm |
| Net Weight | 6.3kg |
| Available colours | Black / Silver |
| Power requirements (depending on region) | 220-240V, 50/60Hz; 100-120V, 50/60Hz |
