Key Features
- Compact, 80s-inspired high-performance amp
- ESS ES9018K2M Reference DAC chip with Time Domain Jitter Elimination
- Phono MM input removes the need for an additional phono pre-amp
- Bluetooth 5.0 built-in for wireless audio streaming
- Rotary controls ensure smooth sound management
Mission 778x Integrated Amplifier with Bluetooth, Black Overview
The Mission 778x Integrated Amplifier is a compact and 80s-inspired hi-fi amplifier with a wide range of connectivity options that each deliver refined, precise audio quality. Offering both coaxial and optical inputs, the 778x enables direct connectivity to digital devices. It also has three studio-grade RCA inputs, including a moving magnet (MM) phono input for turntables, enabling exceptional analogue connectivity. If streaming is more appealing to you, the 778x has Bluetooth 5.0 built-in letting you stream your favourite music wirelessly from your smart devices in aptX and AAC codecs.
The 778x has a Class-AB power amplifier design that houses an efficient 200VA toroidal transformer. It also has an excellent pre-amp section built in ready to optimise your favourite music, plus a hi-res ES9018K2M DAC offering a sampling rate of up to 384kHz (PCM) and DSD256. Control your volume and source selection with ease via the beautiful, 80s-style rotary dials.
Product Ref: 246276
Full Description
"Mission’s 778X is a superb integrated amplifier with a wonderfully balanced sound and a comprehensive spec sheet"
Integrated Amplifier
The Mission 778x offers a Class AB design so you can enjoy effective sound quality with low distortion levels. The 778x provides a low-noise 200VA toroidal transformer and a 2x15000uF reservoir capacity so you can enjoy a two-channel power output of up to 65W each. The preamp section immerses you in the sound with its low THD rating and a frequency response of 20Hz-20kHz, so all your favourite music genres are catered for. The 778x is even harnessed with a high-quality headphone amplifier that generates high-speed output signal transition so you can enjoy amazing audio quality.
High Performing DAC and Inputs

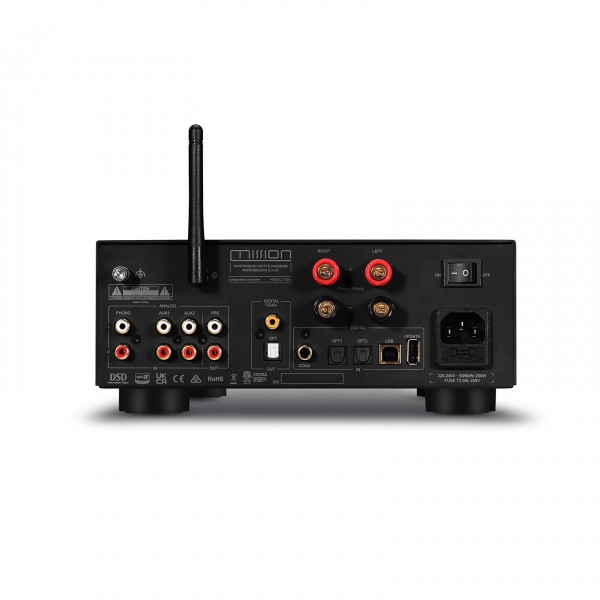

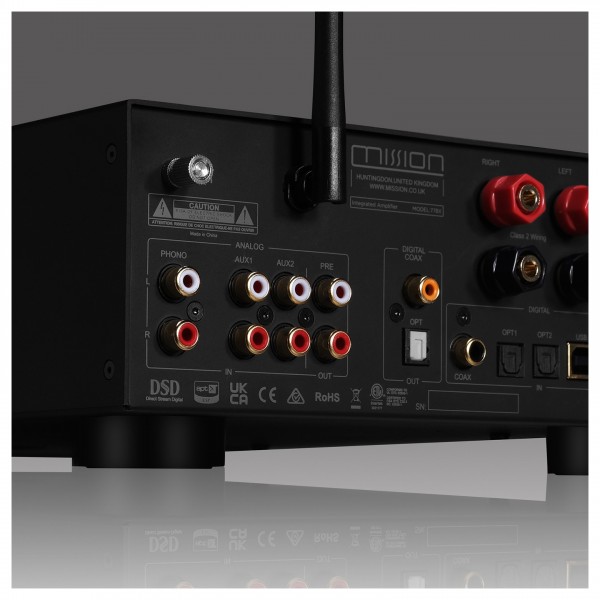

Connect all of your digital devices thanks to the USB, Coaxial, and dual Optical inputs, with up to three RCA inputs enabling excellent pairing with your analogue devices such as your turntable. The 778x provides Bluetooth 5.0, so you can stream all your favourite playlists on Spotify and Apple Music, straight from your smart devices. The built-in DAC gifts you with immersive audio thanks to the ES9018K2M chipset, the 32-bit HyperStream architecture and Time Domain Jitter Eliminator. Experience a sampling rate of up to 384kHz (PCM) and DSD256.
Great Design

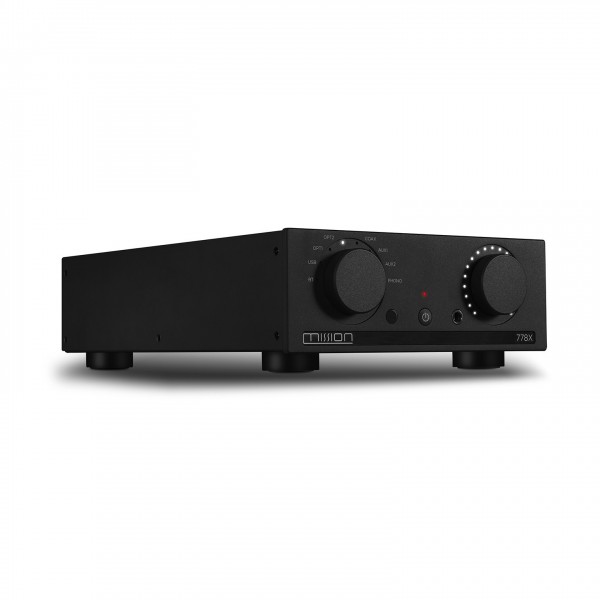

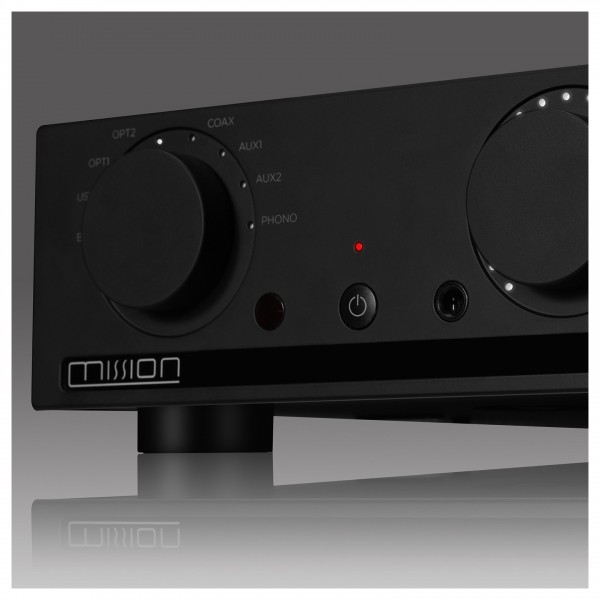

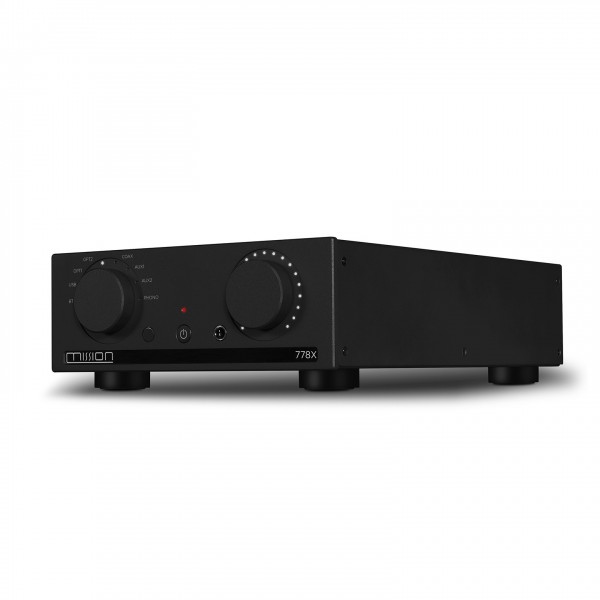

The reliable, compact design allows for easy storage within any HiFi cabinet and also adds a voguish vibe to your home decor. The 778x provides two sturdy rotary controls so you can manage the volume as well as select the input sources. The white LED lights will also notify you what settings are currently selected.
Key Features
- Class AB design ensures Missions signature sound quality
- A two-channel power output of up to 65W each transmits robust audio signals
- Preamplifier allows for low distortion and a dynamic sound
- The headphone amplifier provides high-speed output signal transition
- The USB, Coaxial, and Optical inputs ensure direct connectivity to digital devices
- The three available RCA inputs allow you to connect to analogue audio sources
- Bluetooth 5.0 lets you wirelessly connect to your smart devices with aptX and AAC codecs
- High-quality DAC generates immersive, high-speed digital to analogue sounds
- The brilliant design ensures versatile positioning and ample control over your audio
What's in the box?
- The Mission 778x Integrated Amplifier
- 1 x Power Cord
- 1 x Remote Control
- 1 x Bluetooth antenna
- User Manuals
Specifications
Model
| Model | 778X |
|---|---|
| General Description | Digital-to-Analogue ConverterStereo Amplifier |
| Design Philosophy and Core Technology | Integrated Amplifier (45 watts @8 ohms, 65 watts @4 ohms)ESS Sabre32 ES9018K2M Reference ChipUltra-low Noise Digital Audio File Compability (384kHz PCM, DSD256)Bluetooth 5.0 (aptX / AAC) SupportDedicated High-performance, Low-noise MM Phono StageHeadphone AMP With High-speed Output Signal TransitionUSB Upgrade SupportLarge Tractile Controls With LED Level Indicators |
| Inputs | 1 x Coaxial2 x Toslink Optical1 x PC USB1 x Bluetooth (aptX/AAC)2 x AUX1 x RCA (Phono MM) |
| Outputs | 1 x Coaxial1 x Toslink Optical1 x RCA (PRE Out) |
| Sampling Frequency | Optical / Coaxial: 44.1kHz-192kHz;PC USB 44.1kHz-384kHz(PCM) / DSD64, DSD128, DSD256 |
Preamplifier Section
| Gain (max.) | +0dB (Line)+47dB (Phono MM) |
|---|---|
| Input Sensitivity | 540mV (Line, Volume = 0dB); 2.5mV (Phone MM, Volume = 0dB) |
| Input Impedance | 10K (AUX); 47K//100pF (Phono MM) |
| Total Harmonic Distortion (THD) | 110dB (A-weighted) |
DAC
| D to A Converter | ESS Sabre32 ES9018K2M |
|---|---|
| Resolution | 32-bit |
| Max. Sampling Frequency | Optical/Coaxial: 192kHz;USB: PCM 384kHz / 11.2896MHz (DSD256) |
| Total Harmonic Distortion (THD) | < 0.001 (1KHz @ 0dBFS) |
| Output level (0dBFS, 1KHz) | 2.1Vrms |
Power Amplifier Section
| Gain | +31dB |
|---|---|
| Rated Power Output | 2 x 45W (@8ohms)2 x 65W (@ 4 ohms) |
| Frequency Response (ref. 1kHz) | 20Hz-20KHz (± 0.5dB) |
| Total Harmonic Distortion (THD) | 108dB (ref. 45W, A-weighted) |
| Crosstalk @1K | >80dB (ref.1W) |
| Standby Power Consumption | <0.5W |
Headphone Amplifier
| Total Harmonic Distortion (THD) | < 0.01 (1kHz, 50mW ) |
|---|---|
| Output Impedance | 4.7 ohms |
| Load impedance | 20-600 ohms |
General
| Dimensions (mm) (W x H x D) | 236 x 98 x 380.6 mm |
|---|---|
| Carton Size (mm) ( W X H X D) | 450 x 392 x 175 mm |
| Net Weight | 6.3kg |
| Available colours | Black / Silver |
| Power requirements (depending on region) | 220-240V, 50/60Hz; 100-120V, 50/60Hz |
| EAN | 6974017848839 |
