FiiO R7 Desktop Streamer & SP3 Active Speaker Hi-Fi System, Black

View PDF
View PDF
This product is currently not available for purchase
JUST ADDED

Key Features

  • Speakers, streamer & DAC/headphone amp
  • An incredible desktop hi-fi experience, with ESS Sabre DAC supporting 32-bit/768kHz
  • THX AAA-788+ amplifier circuit delivers up to 3000mW of power for headphone use
  • Comes with the SP3 Active Speakers, delivering clear sound with 3.5-inch woofers
  • Can't find the bundle you want? Call 01706 878444 and we'll make the perfect package for you!
Questions? Email [email protected] or call 0208 45199020

FiiO R7 Desktop Streamer & SP3 Active Speaker Hi-Fi System, Black Overview

View this description in German

The FiiO R7 Desktop Streamer with SP3 Active Speaker Hi-Fi System is for audiophiles valuing a low-profile, high-performance desktop audio setup. This bundle features the FiiO R7, an all-in-one streamer, DAC, and headphone amplifier, with the FiiO SP3 Active Speakers. The R7 delivers high-resolution audio and MQA through an ESS Sabre DAC and THX amplification, perfect for any music enthusiast's collection. Both units share similar dimensions and incorporate LED lighting, creating a cohesive look and adding a modern touch to your hi-fi setup. Learn more about these outstanding components below.

Product Ref: 297692

Full Description

View Full Description

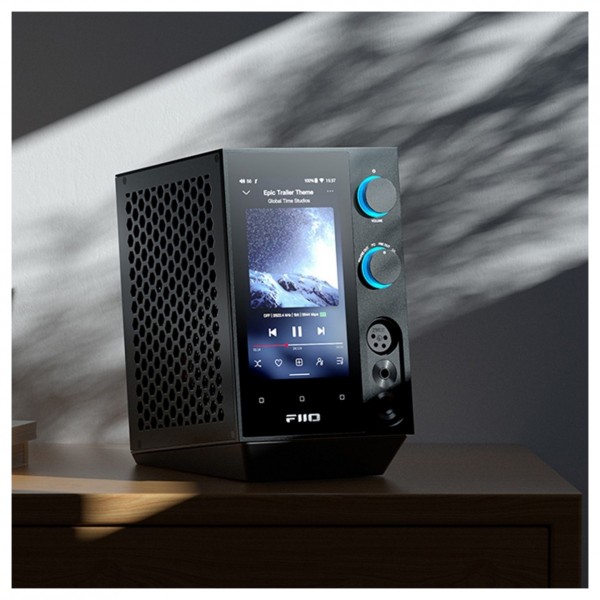

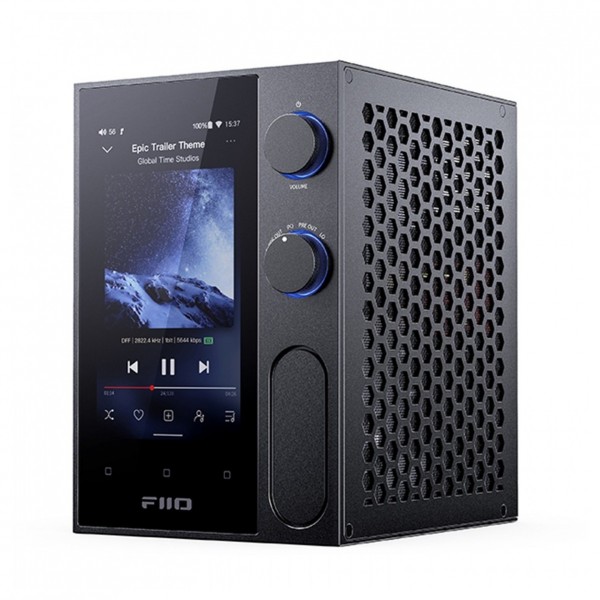

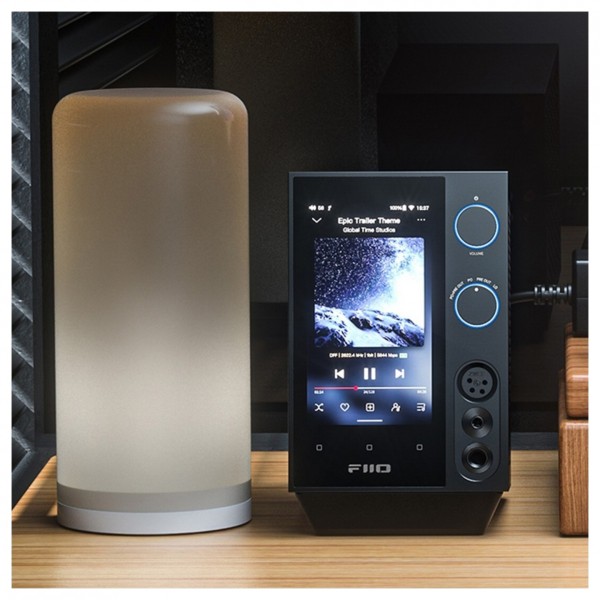

FiiO R7 Desktop Streaming Player and DAC/Amplifier

Elegant All-in-One Design

The R7 can act as a transmitter, streaming media player, amplifier, preamplifier, and decoder, offering a streamlined audio experience without sacrificing quality. The integration of an ESS Sabre DAC chipset delivers PCM(up to 32-bit/768kHz) and DSD audio to provide a supreme sound with reduced distortion and a high SNR. The R7 even supports MQA audio, so you can hear your favourite songs the way the artist intended.

THX Amplification Circuit

The desktop-grade THX amplification circuit produces an incredibly clean sound, without unwanted colouration. Designed to excellence, this circuit includes two THX AAA 788+ headphone chips capable of producing up to 3000mW of power. Coupled with five-level gain modes, a 4-pin XLR, 4.4mm balanced, and 6.35mm single-ended outputs, the R7 is ideal for elevating a wide range of IEMs and headphones.

Powered by Snapdragon 660 SoC

The heart of the R7 is the Qualcomm Snapdragon 660 SoC processor, with its eight-core CPU offering a balance of high performance and power efficiency. Its four gigabytes of RAM ensure effortless multitasking capabilities and the smooth operation of advanced applications. The addition of an open Andriod 10 OS also allows access to streaming services such as Spotify and TIDAL, making the R7 a versatile choice for all your listening needs.

Extensive Connectivity

Offering an extensive range of connectivity options, the R7 is designed to be the centrepiece of your audio setup. With RCA, coaxial, optical, and USB inputs, this player can connect to a variety of audio seperates, including the FiiO SP3 Speakers. The R7 also boasts support for AirPlay, Wi-Fi, and Bluetooth 5.0, enabling high-quality wireless streaming.

Roon Ready and Broad Storage Options

Certified Roon Ready, the R7 seamlessly integrates with your Roon audio network. Enjoy world-class sound quality and seamless audio synchronisation across compatible speakers throughout your home. Looking to listen to all your favourite songs on one device? Not a problem. The R7 can support up to 2TB SD cards, letting you immerse yourself in an extensive library.

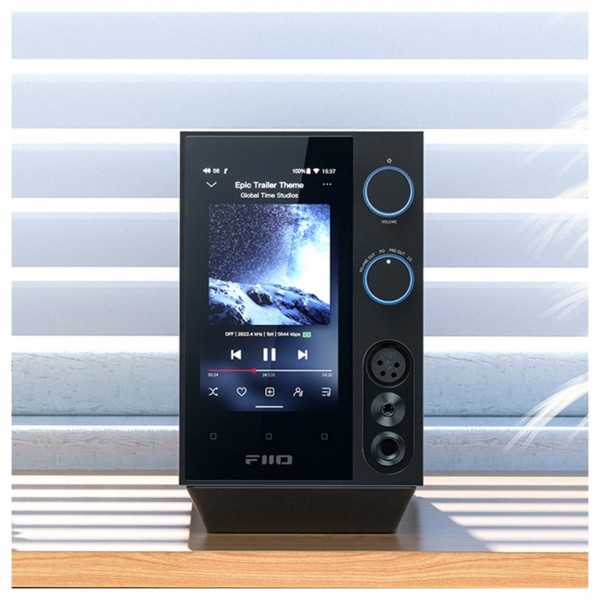

Stylish Design

The five-inch portrait-oriented touch screen, with Android 10 OS, provides an interface intuitive to smartphone users. This setup lets you smoothly navigate your music library and control playback and settings with an output selection knob that allows easy switching between connected devices. While the R7 is ideal for desktop use, its compact design offers excellent positional versatility.

Features

  • Functions as a headphone amplifier, DAC, streaming media player, among other uses
  • Includes an ESS Sabre DAC chipset, capable of 32-bit/768kHz audio performance
  • Authentic sound reproduction is guaranteed through MQA compatibility
  • THX amplification circuit delivers a distortion-free sound
  • Two THX AAA 788+ headphone chips each provide a 3000mW power output
  • Offers both balanced and single-ended outputs so you can connect to various headphone types
  • Runs on Snapdragon 660 SoC and Android 10 OS for lag-free, intuitive functionality
  • Supports a range of digital and analogue inputs
  • Bluetooth 5.0 lets you wirelessly stream your music
  • Easy-to-use touch screen ensures a hassle-free user experience
  • The compact design gives you broad positioning options

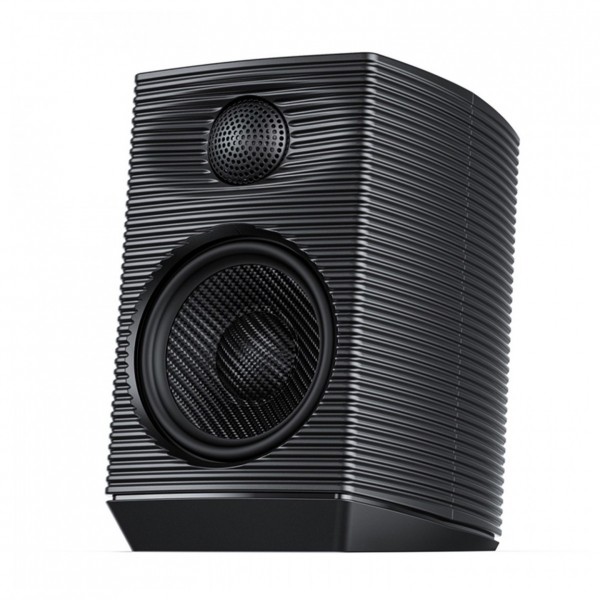

FiiO SP3 Active Desktop Speakers

High-Quality Mid-Woofer

Made from carbon fibre, the 3.5-inch mid-woofer is extremely strong yet very lightweight, allowing for a quick transient response with minimal distortion. Taking things up a level, the SP3 speakers feature a unique system of external and internal asymmetrical magnetic circuits. This design, with an auxiliary magnet in the centre, boosts the magnetic field strength to 1.2T, enabling the 3.5-inch mid-woofer to produce a dynamic sound across all frequencies.

Silk Tweeter for Detailed Treble

The one-inch silk tweeter of the SP3 not only delivers detailed high frequencies but also incorporates a wave absorption structure to minimise unwanted resonance. The copper-plated KSV voice coil enhances its ability to reproduce lower frequencies, ensuring a natural, detailed sound profile. It is also precisely angled to enable the lossless transmission of sound waves, allowing for an immersive listening experience, even at an off-axis angle.

Broad, Dynamic Listening

Bridging style and function, the horizontal striped pattern on the speaker helps diffuse sound effectively across the room, creating a broad and immersive soundstage. Both drivers are supported by an active crossover system at a frequency of 3.4kHz. The two-way active filter circuit manages the crossover frequency to help preserve audio fidelity, minimise driver overload, and deliver a powerful 80W of power.

S-shaped Porting Tube

The SP3's bass response is enhanced by its innovative double-diffused S-shaped porting tube, which provides extended bass and superior control. This design allows for a great bass response, all while keeping the speaker compact and efficient. It finds the ideal balance between power and subtlety so the bass doesn't overwhelm your desktop setup, making the SP3s perfect for home office purposes.

Seven-Degree Elevation Stands

Each SP3 comes with a seven-degree inclined stand, designed to offer optimal listening for desktop use. Made of silicone, these stands are great at minimising unwanted vibrations for a much clearer sound. Moreover, these speakers match FiiO's R7 Desktop Streaming Player in size, letting you create a cohesive desktop hi-fi system.

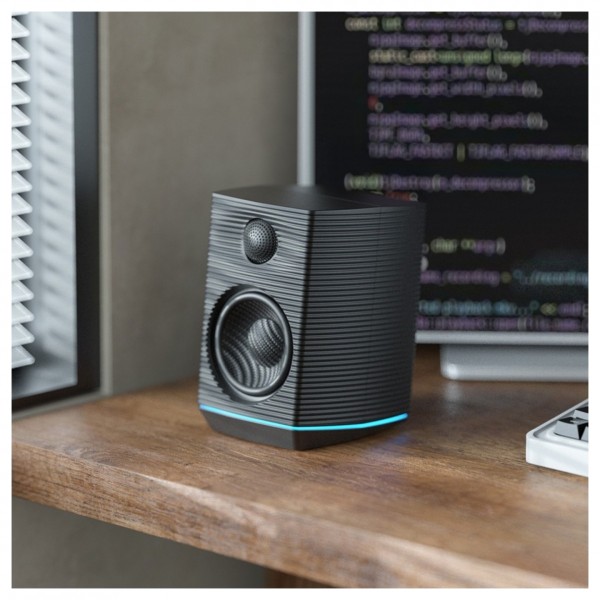

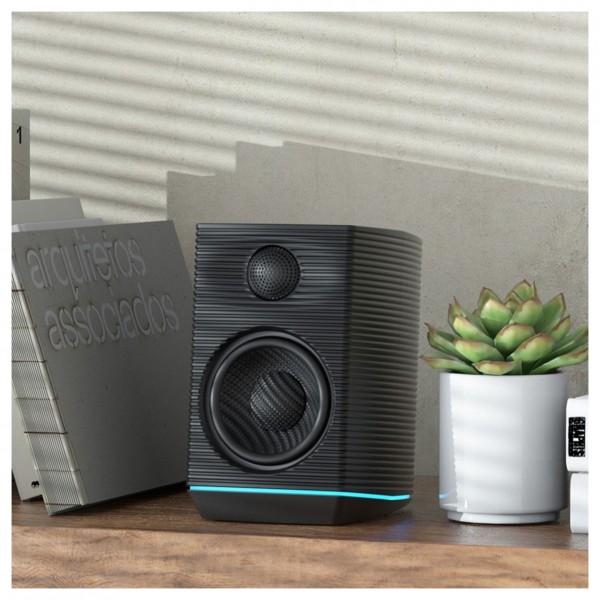

LED Lighting Effect

Adding to its aesthetic appeal, the SP3 features LED lighting effects at the bottom of its cabinet. These lights create a captivating desktop atmosphere, with a pulsing light mode that cycles through 24 different colours. For those who prefer a subtler look, the lighting can be adjusted or turned off, ensuring the SP3 fits seamlessly into your personal space.

Features

  • 3.5-inch carbon fibre woofer offers great sound quality
  • One-inch silk tweeter produces crisp, clean high frequencies
  • Asymmetrical magnetic circuits reduce distortion
  • Double-diffused S-shaped port enhances bass response
  • Directional acoustic waveguides broaden the soundstage
  • LED lighting effects add to the ambience of your living space
  • Seven-degree silicone stands offer a more immersive listening angle
  • Compact design fits perfectly on desks and small spaces
  • Available in both white and black finishes

Package Includes

FiiO R7 Desktop Streamer and DAC/Amplifier Specifications

General

Name/model R7
Hardware solution Soc: Snapdragon 660

DAC: ES9068AS

AMP: 2 x THX AAA-788

USB: Snapdragon 660
Working mode Android mode

Pure music mode

USB DAC mode

Bluetooth receiving mode

AirPlay mode

COAX mode

OPT mode

Roon Ready
Colour Black

White
Weight 1282g
Dimension (W x H x D) 160 x 110 x 134mm (without base)

170 x 110 x 134mm (with 0° flat base)

182.5 x 110 x 134mm (with 7° elevation base)
Volume control Knob
Screen 4.97 inches (720 * 1280) full-fit screen
Internal storage/Free space (ROM) 64GB/46GB
RAM 4GB
Gain Ultra high

Super high

High

Medium

Low
Memory card Single SD card expansion, theoretically supports up to 2TB
Recommended headphone impedance PO: 16-150Ω

BAL: 16-300Ω
Channel balance L20 -R20 (0.5dB per level)
Product Code FIIOR7

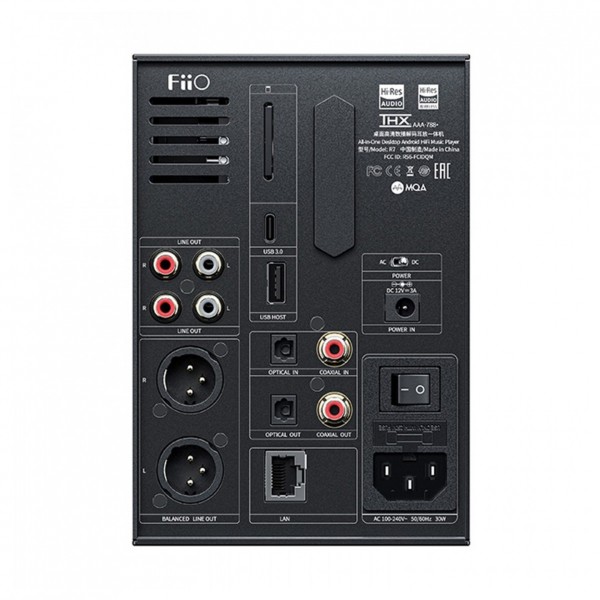

Buttons and Ports

Button 1 x Volume knob (it has button's function

1 x Output selection knob (similar to button's function)
USB 1 x Type-C (USB3.0)

1 x USB A (USB2.0) (data transfer)
DC power in port Φ 6.2mm DC socket
Toggle switch DC/AC switch
Balanced output ports 1 x Standard 4.4mm

1 x 4-cores XLR
Phone out port Standard 6.35mm
Balanced line out ports 2 x 3-cores XLR
Single-ended line out ports 2 x RCA
OPT input port Standard TOSLINK
OPT output port Standard TOSLINK
COAX input port RCA
COAX output port RCA
Network port 100M Ethernet port

Features

WiFi 2.4GHz/5GHz

DLNA

AirPlay

WiFi music transmission

Roon Ready etc.
Bluetooth Emission (5.0) AAC

SBC

aptX

aptX HD

LDAC

LHDC
Bluetooth receiving (5.0) SBC

AAC

LDAC
FiiO Link WiFi and Bluetooth control for Android, WiFi control for iOS.
MQA 8x decoding
All to DSD Yes
Max sampling rates USB DAC: 384kHz/32bit; DSD256 (Native)

Local decoding: 384kHz/32bit; DSD256 (Native)

USB Audio:768kHz/32bit?DSD512 (DoP/D2P/Native)

COAX IN: 192kHz/24bit

OPT IN: 96kHz/24bit

COAX OUT: 384kHz/24bit; DSD128 (DOP)

OPT OUT: 192kHz/24bit
Bluetooth codec indicator (knob light) Blue: SBC

Cyan: AAC

Yellow: aptX HD

White: LDAC

Orange: LHDC
EQ 10-segment dynamic EQ (±12dB)

8 preset EQ

Custom EQ

PEQ supported.
Sampling rate indicator (knob light) Blue: Lossy

Cyan: SQ

Yellow: HR

Green: DSD

Magenta: MQA
Operation modes Support gesture operation,

Two-button navigation,

Three-button navigation
Screen saver Yes
Firmware upgrade Local upgrade

OTA upgrade
Double-click to wake up Yes
Power supply DC 12V/3A OR AC 100-240V 50/60Hz

Audio Parameters

Headphone out performance (6.35mm, USB DAC/OPT/COAX, Ultra-high)

Output power L+R≥1850mW+1850mW (16Ω, THD+N < 1%)

L+R≥1250mW+1250mW (32Ω, THD+N < 1%)

L+R≥160mW+160mW (300Ω, THD+N < 1%)
Output impedance < 0.5Ω
Crosstalk ≥77dB
Peak voltage 18Vp-p
SNR ≥ 124dB (dbA)
THD+N < 0.0005 (1kHz / -8dB@32 Ω)
Frequency response 5Hz 50kHz: attenuation < 1dB

20Hz 20KHz: attenuation < 0.3dB
Noise floor < 4uV (dbA)

Headphone out performance (6.35mm, USB DAC/OPT/COAX, Super high)

Output power L+R≥1450mW +1450mW (16Ω, THD+N < 1%)

L+R≥750mW +750mW (32Ω, THD+N < 1%)

L+R≥80mW+80mW (300Ω, THD+N < 1%)
Output impedance < 0.4Ω
Crosstalk ≥73dB
Peak voltage 14Vp-p
SNR ≥ 124dB (dbA)
THD+N < 0.0005 (1kHz / -6dB@32 Ω)
Frequency response 20Hz 80kHz: attenuation < 1dB

20Hz 20KHz: attenuation < 0.3dB
Noise floor < 4uV (dbA)

Line out performance (RCA, USB DAC/OPT/COAX)

THD+N < 0.0005% (1kHz/-0dB@10KΩ)
SNR ≥ 118.5dB (dbA)
Crosstalk ≥112dB
Noise floor < 2.7uV (dbA)
Frequency response 5Hz 80kHz: attenuation < 2dB

20Hz 20KHz: attenuation < 0.1dB
Line out level 2.2Vrms

Balanced headphone out performance (XLR4/4.4mm, USB DAC/OPT/COAX, Ultra-high)

Output power L+R≥1000mW+1000mW (16Ω, THD+N < 1%)

L+R≥3650mW+3650mW (32Ω, THD+N < 1%)

L+R≥630mW+630mW (300Ω, THD+N < 1%)
Output impedance < 0.5Ω
Crosstalk ≥116dB
Peak voltage 39Vp-p
SNR ≥ 122dB (dbA)
THD+N < 0.0005 (1kHz / -8dB@32 Ω)
Frequency response 20Hz 50kHz: attenuation < 2dB

20Hz 20KHz: attenuation < 0.3dB
Noise floor < 7.5uV (dbA)

Balanced headphone out performance (XLR4/4.4mm, USB DAC/OPT/COAX, Super high)

Output power L+R≥800mW+800mW (16Ω, THD+N < 1%)

L+R≥3000mW +3000mW(32Ω, THD+N < 1%)

L+R≥320mW+320mW (300Ω, THD+N < 1%)
Output impedance < 0.5Ω
Crosstalk ≥116dB
Peak voltage 27.7Vp-p
SNR ≥ 122dB (dbA)
THD+N < 0.00048% (1kHz / -6dB@32 Ω)
Frequency response 5Hz 80kHz: attenuation < 2dB

20Hz 20KHz: attenuation < 0.3dB
Noise floor < 7.5uV (dbA)

Balanced line out performance (XLR3, USB DAC/OPT/COAX)

THD+N < 0.0005% (1kHz/0dB@10KΩ)
SNR ≥ 125dB (dbA)
Crosstalk ≥121dB
Noise floor < 2.5uV (dbA)
Frequency response 20Hz 50kHz: attenuation < 2dB

20Hz 20KHz: attenuation < 0.1dB
Line out level 4.5Vrms

Audio format support

Lossless DSD: DSD64/128/256(".iso”,".dsf”,".dff”),DST iSO

DXD: 352.8K/24bit

APE FAST/High/Normal: 384kHz/24bit (MAX)

APE Extra High: 192kHz/24bit (MAX)

APE Insane: 96kHz/24bit (MAX)

Apple Lossless: 384kHz/32bit (MAX)

AIFF: 384kHz/32bit (MAX)

FLAC: 384kHz/32bit (MAX)

WAV: 384kHz/32bit (MAX)

WMA LOSSLESS: 96kHz/24bit (MAX)

DTS: 192kHz/24bit (MAX)

MQA: Full Decoderer
Lossy compression MP3

OGG

WMA

AAC and other formats

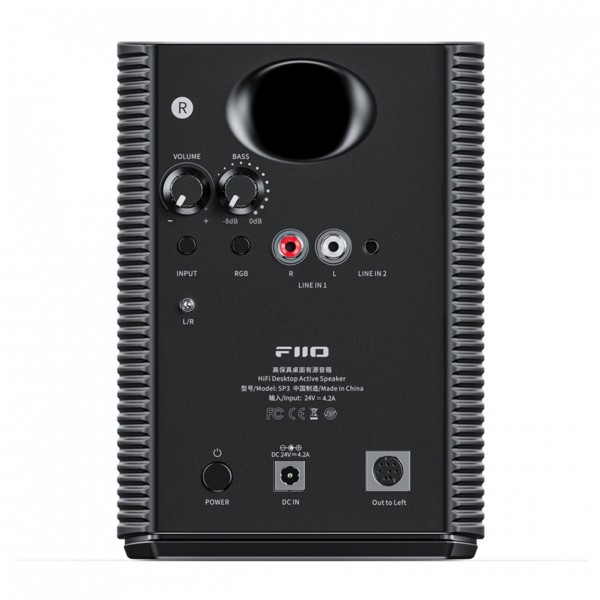

FiiO SP3 Active Desktop Speaker Specifications

General

Name/Model SP3
Colour Black
Dimensions (W x H x D) 163 x 120 x 132mm (without base)

170 x 120 x 132mm (with 0° flat base)

182 x 120 x 132mm (with 7° elevation base)
Product Code FIIOSP3-BLACK

Speaker performance indicators

THD ≤ 0.02 (Max volume?Rated input -10dB)
Output power (distortion limited) Bass rated condition THD: 1 (2 x 30W)

Treble rated condition THD: 1 (2 x 10W)
Crosstalk Rated conditions: 84dB
SNR Rated conditions (dbA): 96dB
Crossover point 3.4KHZ
Bass adjustment -8dB-0dB
Input methods RCA 3.5mm
Net weight Main: 1.8kg

Vice: 1.6kg

Audio

Frequency Response 65Hz-20KHz
Bass Driver 3.5-inches
Treble Driver 1-inch
Impedance 8 ohms
Sensitivity 85 dB
Speaker crossover type 2-way
Output power 30W x 2 (bass)

10W x 2 (treble)
