Key Features
- 180W Class G system offers a rich sound
- Balanced analogue and digital audio paths and up to 32-bit/768 kHz hi-res audio
- Includes Apple Airplay, Chromecast, Spotify Connect, and Tidal Connect
- Roon Ready support enables seamless music streaming (after launch)
- Dirac Live Room Correction optimises the sound to suit your living space
Arcam Radia SA45 Streaming Integrated Amplifier, Black Overview

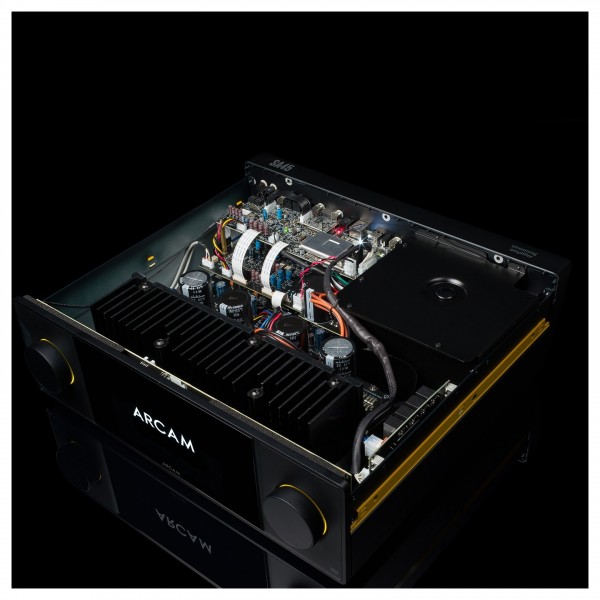

The Arcam Radia SA45 is a versatile streaming integrated amplifier, perfect for audiophiles who want a premium just-add-speakers hi-fi experience and high-quality sound in any room size. Its Class G amplification delivers 180W of clean power per channel, ensuring captivating, distortion-free stereo audio. The advanced Hyperstream iV DAC topology offers 32-bit/768 kHz audio with jitter elimination for a truly immersive experience. With MM/MC phono inputs, the SA45 pairs seamlessly with most turntables, and the HDMI ARC connection lets you enjoy premium TV audio through your main speaker system.

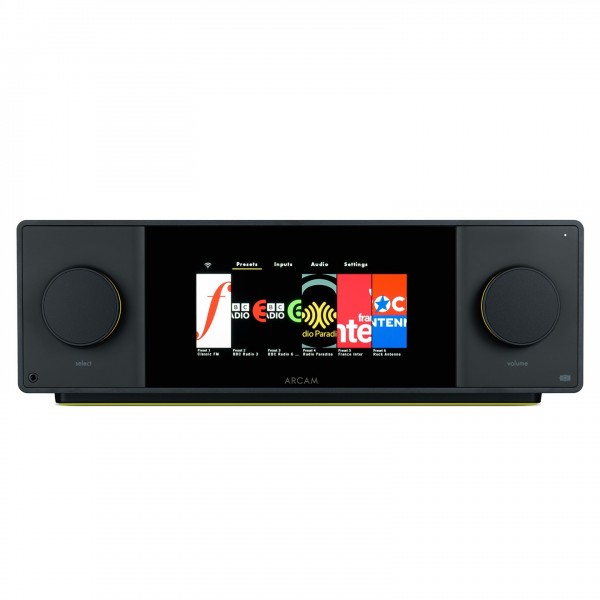

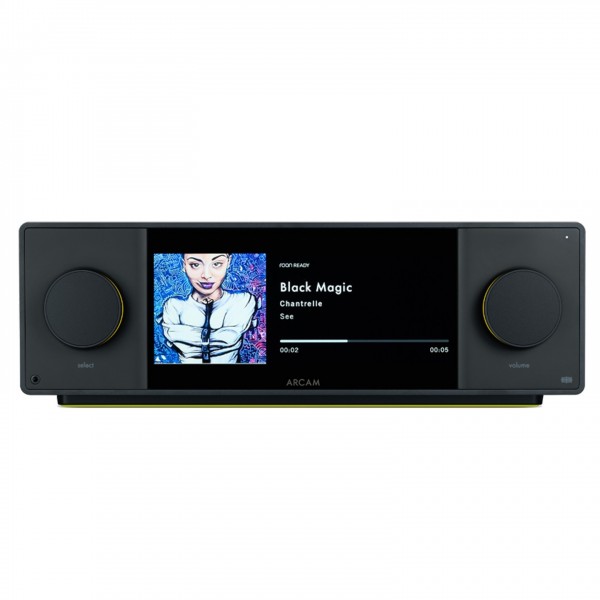

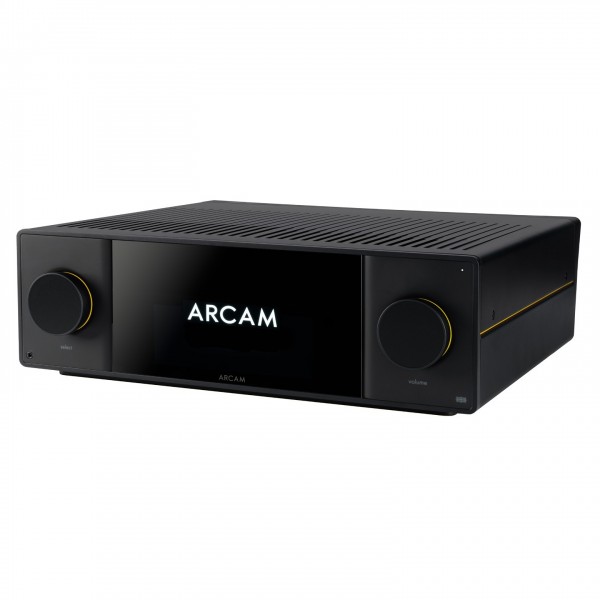

Designed for streaming, the Radia SA45 supports platforms like Apple Airplay, Chromecast, Spotify Connect, Tidal Connect, and Roon Ready (on launch). The built-in Dirac Live Room Correction tailors the sound to suit your room's acoustics. Setup is also easy with the Arcam Radia app, which gives you control over presets, streaming, and internet radio. Additionally, the large 8.8-inch display showcases album artwork and metadata, adding a sleek visual element to your listening experience.
Please Note: The Radia SA45 is currently available for pre-order only. You can reserve yours today, but please be aware that exact delivery dates are still to be confirmed.
Product Ref: 311637
Full Description
View Full Description
What's in the Box?
- Arcam Radia SA45 Streaming Integrated Amplifier
- Mains lead(s)

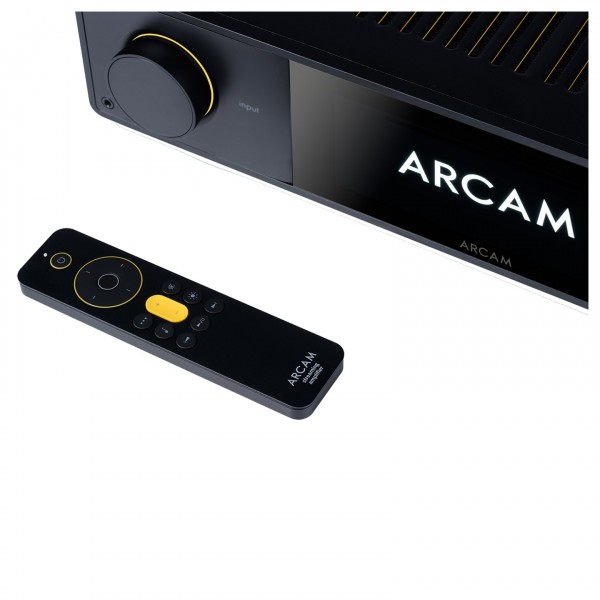

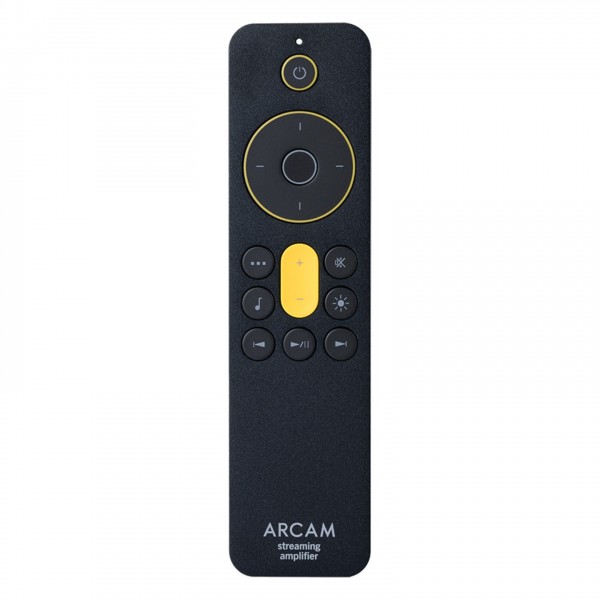

- Remote control with 2 x AAA batteries
- Measurement Microphone
- 5m USB Cable
- Quick Start Guide
- Important Safety Instructions
Specifications
Power
| Continuous power output (0.5 THD), per channel | 2 channels driven, 20Hz—20kHz, 8Ω: 180W2 channels driven, 1kHz, 4Ω: 300WHarmonic distortion, 80 power, 8Ω at 1kHz: 0.002 |
|---|
Analogue Inputs
| Number of inputs | 3 x RCA pairs1 x XLR pair |
|---|---|
| Phono Inputs | MM and MC |
| Frequency response | 20Hz—20kHz ± 0.2dB |
| Signal/noise ratio (A-wtd, ref. 50W, 1V input) | 106dB |
Digital Inputs
| Supported Streaming media | FLACWAV (LPCM)AACALACAIFFDSD (up to 1024)MP3MP4OGGWMA |
|---|---|
| Supported Streaming Bit depth | 162432 |
| Supported Streaming sample rates (kHz) | Up to 768 kHz |
| Gapless Playback | Yes |

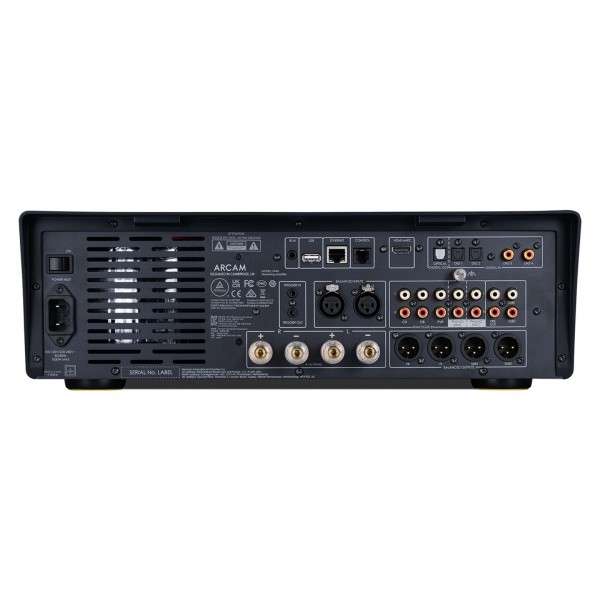

| Digital Audio Inputs | 1 x HDMI ARC2 x Coaxial (RCA)2 x Optical (Toslink) |
| Supported Digital input Bit depth | 1624 |
| Supported Digital input sample rates (kHz) | Up to 192 kHz |
| Frequency response (filter 1) | 20Hz—20kHz ± 0.2dB |
| Signal/noise ratio (A-wtd, ref. 50W, 0dBFS) | 110dB |
Wireless Specifications
| Bluetooth 5.2 Profile | A2DP Sink/SourceAVRCPBLEaptXaptX HDaptX AdaptiveAAC |
|---|---|
| Bluetooth Transmitter Frequency and Power | 2,402 MHz to 2,480 MHz <13dBm |
| Wi-Fi Network | IEEE 8002.11 a/b/g/n/ac/ax (2.4GHz/5GHz) |
| 2.4G Wi-Fi Transmitter Frequency Range and Power | 2400-2483.5 MHz (USA 11 Channels, Europe and Others 13 Channels) <20dBm |
| 5G Wi-Fi Transmitter Frequency Range and Power | 5150-5250 MHz <23dBm5250-5350 MHz & 5470-5725 MHz <20dBm5725-5850 MHz <14dBm |
General
| Mains voltage | 100V or 110–120V or 220–240V, 50–60Hz |
|---|---|
| Power consumption (maximum) | 1500W |
| Power consumption (standby) | <0.5W |
| Dimensions W x D (including speaker terminals) x H (including feet) | 431 x 344 x 143 mm |
| Weight (net) | 17 kg |
| Weight (packed) | 20 kg |
| Product code | ARCASA45 |
