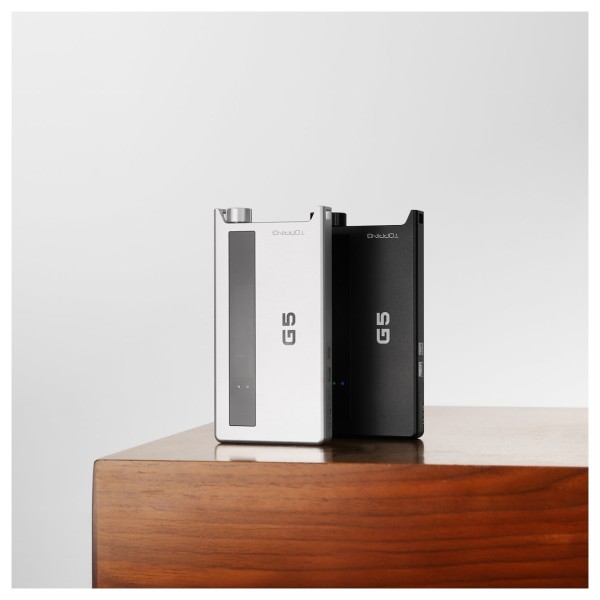

Topping G Series G5 Portable Headphone Amplifier and DAC, Black
This product is currently not available for purchase
JUST ADDED
Key Features
- Supports PCM up to 768kHz and DSD512
- ESS9068AS DAC and NFCA amplifier combo for low distortion, high resolution, and high output
- Three-stage gain control to optimise power for sensitive IEMs and high-impedance headphones

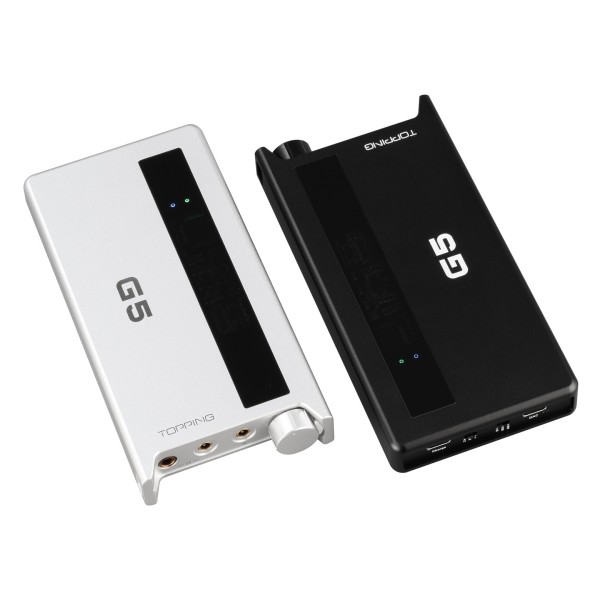

- USB and AUX inputs, plus 3.5mm and 4.4mm jack outputs for standard and balanced setups
- Wireless streaming with LDAC, using the QCC5125 chipset for stable Bluetooth connections
Topping G Series G5 Portable Headphone Amplifier and DAC, Black Overview
The Topping G Series G5 Portable Headphone Amplifier and DAC gives you a way to upgrade your audio on the go, with three-stage gain control to adjust output to match your headphones. With up to 21Vpp output on high gain for power-hungry models and low gain to keep sensitive in-ear monitors free from hiss and distortion, you can match whatever you're wearing. The onboard ESS9068AS DAC processes high-resolution audio with support for PCM up to 768kHz and DSD512. Paired with the NFCA amplifier—adapted from their highly regarded desktop models—it provides low-distortion output, offering the kind of precision typically found in more expensive setups.

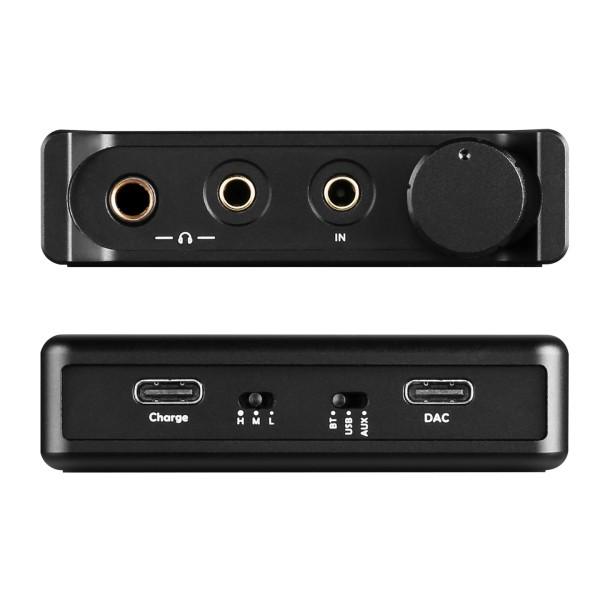

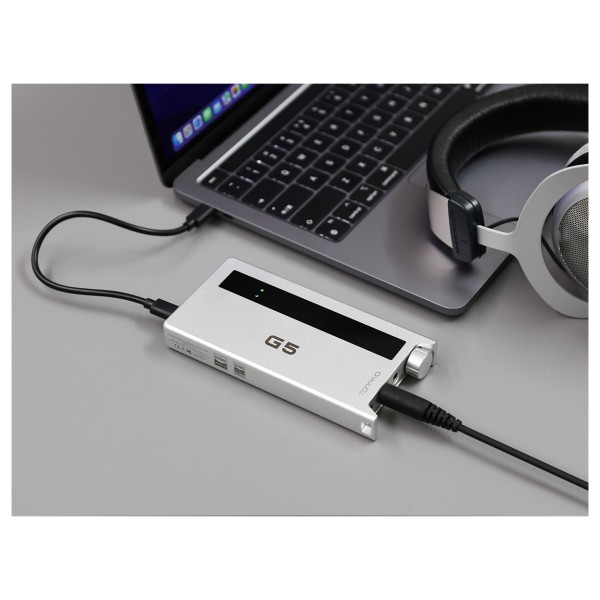

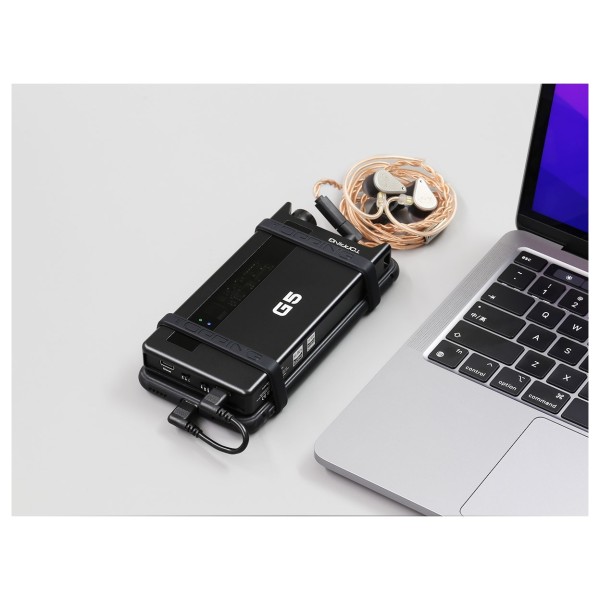

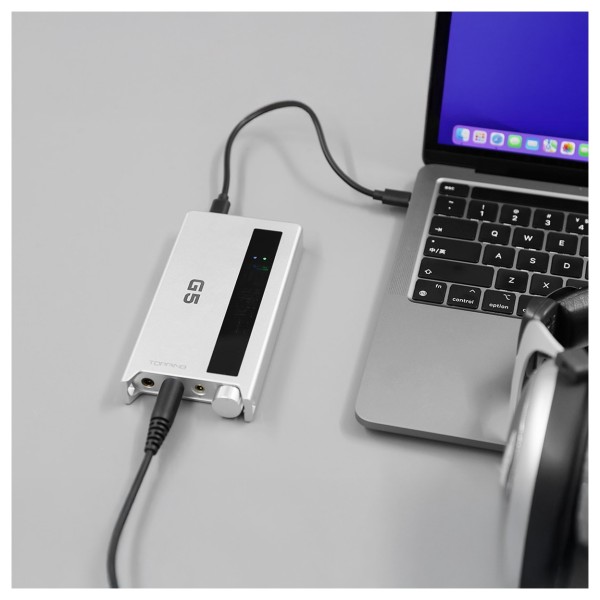

For wired listening, the G5 offers both USB and AUX inputs, giving you the flexibility to connect to a wide range of devices, including phones, laptops, and dedicated audio players. The 3.5mm and 4.4mm headphone outputs also let you choose between standard and balanced connections. If you prefer to go wireless, the G5 supports Bluetooth with LDAC, allowing you to stream high-resolution audio with minimal compression. The onboard QCC5125 chipset ensures stable connections and broad codec support, including AAC, SBC, aptX, aptX HD, aptX Adaptive, and aptX LL. Whether you're plugged in or streaming, the Topping G5 give you pure, portable sound without compromise.
Product Ref: 325578
Full Description
View Full Description
What’s in the Box?
- Topping G5 Portable Headphone Amp and DAC
- 3.5mm to 3.5mm audio cable
- USB charging cable
- Straight USB-C cable
- Elbow USB-C cable
- 2 x Rubber bands
- Rubber pad
- User manual
- Warranty card
Specifications
Supported audio formats
| USB IN | PCM: 44.1kHz-768kHz/16bit-32bitDSD(Native): DSD64-DSD512DSD(DoP): DSD64-DSD256 |
|---|---|
| BT IN | PCM: AAC / SBC / APTX / APTX LL / APTX HD / APTX Adaptive / LDACDSD(Native): N/ADSD(DoP): N/A |
G5 DAC parameters (LineOut/USB In @96kHz)
| THD+N @1kHz (A-wt) | <0.00009% |
|---|---|
| THD @20-20kHz 90kBW | <0.0002% |
| SNR @1kHz (A-wt) | 124dB |
| Dynamic range @1kHz (A-wt) | 124dB |
| Frequency Response | 20Hz-20kHz (±0.1dB)20Hz-40kHz (±0.8dB) |
| Output Level | 2.1Vrms @0dBFS |
| Noise @A-wt | <1.3uVrms |
| Channel Crosstalk | -104dB @1kHz |
| Channel Balance | 0.3dB |
| Output Impedance | 50Ω |
G5 Headphone Amplifier section parameters (USB In @96kHz)
THD+N @1kHz (A-wt)
| 3.5mm headphone output | <0.00010% @Output=145mW (32Ω)<0.00009% @Output=15mW (300Ω) |
|---|---|
| 4.4mm headphone output | <0.00010% @Output=145mW (32Ω)<0.00009% @Output=15mW (300Ω) |
THD @20-20kHz (90kBW)
| 3.5mm headphone output | <0.00008% @Output=145mW (32Ω)<0.00006% @Output=15mW (300Ω) |
|---|---|
| 4.4mm headphone output | <0.00008% @Output=145mW (32Ω)<0.00006% @Output=15mW (300Ω) |
SNR @MAX OUT 1kHz (A-wt)
| 3.5mm headphone output | 124dB |
|---|---|
| 4.4mm headphone output | 124dB |
Dynamic Range @1kHz (A-wt)
| 3.5mm headphone output | 124dB |
|---|---|
| 4.4mm headphone output | 124dB |
Frequency Response
| 3.5mm headphone output | 20Hz-20kHz(±0.1dB)20Hz-40kHz(±0.4dB) |
|---|---|
| 4.4mm headphone output | 20Hz-20kHz(±0.1dB)20Hz-40kHz(±0.4dB) |
Output Level
| 3.5mm headphone output | 1.1Vpp @G=L6Vpp @G=M21Vpp @G=H |
|---|---|
| 4.4mm headphone output | 1.1Vpp @G=L6Vpp @G=M21Vpp @G=H |
Noise @A-wt
| 3.5mm headphone output | <1.0uVrms @G=L<1.5uVrms @G=M<5.0uVrms @G=H |
|---|---|
| 4.4mm headphone output | <1.0uVrms @G=L<1.5uVrms @G=M<5.0uVrms @G=H |
Channel Crosstalk @1kHz
| 3.5mm headphone output | -114dB |
|---|---|
| 4.4mm headphone output | -114dB |
Gain
| 3.5mm headphone output | -8dB (Vrms/FS) @G=L6.4dB (Vrms/FS) @G=M18.2dB (Vrms/FS) @G=H |
|---|---|
| 4.4mm headphone output | -8dB (Vrms/FS) @G=L6.4dB (Vrms/FS) @G=M18.2dB (Vrms/FS) @G=H |
Channel Balance
| 3.5mm headphone output | 0.3dB |
|---|---|
| 4.4mm headphone output | 0.3dB |
Output Impedance
| 3.5mm headphone output | <0.1Ω |
|---|---|
| 4.4mm headphone output | <0.1Ω |
Output Power
| 3.5mm headphone output | 1000mW x2 @16Ω THD+N<0.1% 1200mW x2 @32Ω THD+N<0.1% 720mW x2 @64Ω THD+N<0.1% 175mW x2 @300Ω THD+N<0.1% 90mW x2 @600Ω THD+N<0.1% |
|---|---|
| 4.4mm headphone output | 1000mW x2 @16Ω THD+N<0.1% 1200mW x2 @32Ω THD+N<0.1% 720mW x2 @64Ω THD+N<0.1% 175mW x2 @300Ω THD+N<0.1% 90mW x2 @600Ω THD+N<0.1% |
| 4.4mm headphone output | >8Ω |
G5 Headphone Amplifier section parameters (LINE IN)
THD+N @1kHz (A-wt)
| 3.5mm headphone output | <0.00008% @Output=185mW (32Ω)<0.00007% @Output=20mW (300Ω) |
|---|---|
| 4.4mm headphone output | <0.00008% @Output=185mW (32Ω)<0.00007% @Output=20mW (300Ω) |
THD @20-20kHz (90kBW)
| 3.5mm headphone output | <0.0007% @Output=185mW (32Ω)<0.0005% @Output=20mW (300Ω) |
|---|---|
| 4.4mm headphone output | <0.0007% @Output=185mW (32Ω)<0.0005% @Output=20mW (300Ω) |
SNR @MAX OUT 1kHz (A-wt)
| 3.5mm headphone output | 135dB |
|---|---|
| 4.4mm headphone output | 135dB |
SNR @50mV OUT 1kHz
| 3.5mm headphone output | 104dB |
|---|---|
| 4.4mm headphone output | 104dB |
Dynamic Range @1kHz (A-wt)
| 3.5mm headphone output | 136dB |
|---|---|
| 4.4mm headphone output | 136dB |
Frequency Response
| 3.5mm headphone output | 20Hz-40kHz (±0.1dB) |
|---|---|
| 4.4mm headphone output | 20Hz-40kHz (±0.1dB) |
Output Level
| 3.5mm headphone output | 2.8Vpp @G=L11Vpp @G=M21Vpp @G=H |
|---|---|
| 4.4mm headphone output | 2.8Vpp @G=L11Vpp @G=M21Vpp @G=H |
AP Measured Noise Level @A-wt
| 3.5mm headphone output | <0.7uVrms @G=L<0.7uVrms @G=M<1.5uVrms @G=H |
|---|---|
| 4.4mm headphone output | <0.7uVrms @G=L<0.7uVrms @G=M<1.5uVrms @G=H |
Actual Noise Level @A-wt
| 3.5mm headphone output | <0.3uVrms @G=L<0.3uVrms @G=M<0.9uVrms @G=H |
|---|---|
| 4.4mm headphone output | <0.3uVrms @G=L<0.3uVrms @G=M<0.9uVrms @G=H |
Channel Crosstalk @1kHz
| 3.5mm headphone output | -84dB |
|---|---|
| 4.4mm headphone output | -84dB |
Input Sensitivity
| 3.5mm headphone output | 5.8Vrms @G=L4Vrms @G=M1.9Vrms @G=H |
|---|---|
| 4.4mm headphone output | 5.8Vrms @G=L4Vrms @G=M1.9Vrms @G=H |
Gain
| 3.5mm headphone output | -15dB @G=L-0.1dB @G=M12dB @G=H |
|---|---|
| 4.4mm headphone output | -15dB @G=L-0.1dB @G=M12dB @G=H |
Output Impedance
| 3.5mm headphone output | <0.1Ω |
|---|---|
| 4.4mm headphone output | <0.1Ω |
Output Power
| 3.5mm headphone output | 1000mW x2 @16Ω THD+N<0.1%1200mW x2 @32Ω THD+N<0.1% 720mW x2 @64Ω THD+N<0.1% 175mW x2 @300Ω THD+N<0.1% 90mW x2 @600Ω THD+N<0.1% |
|---|---|
| 4.4mm headphone output | 1000mW x2 @16Ω THD+N<0.1% 1200mW x2 @32Ω THD+N<0.1% 720mW x2 @64Ω THD+N<0.1% 175mW x2 @300Ω THD+N<0.1% 90mW x2 @600Ω THD+N<0.1% |
| 4.4mm headphone output | >8Ω |
General product information
| Dimensions | 140 x 70 x 18 mm |
|---|---|
| Weight | 265g |
| Power input | DC5V/1.2A (USB Type C port) |
| Signal input | USB/BT/AUX |
| Line output | 3.5mm headphone output jack |
| Headphone amp output | 3.5mm headphone output jack4.4mm headphone output jack |
| Battery capacity | 4000mAh |
| Charge time | 9HG=H: >6.5H |
| Playback time (BT) | G=L/M: >10HG=H: >8H |
| Playback time (AUX) | G=L/M: >25HG=H: >13H |
| Volume control | Analogue potentiometer |
| Product code | TOP-G5-B |
| EAN | 6974268481014 |
