Key Features
- Enables a dynamic audio & visual display
- 70m range for HD audio, two-way IR, RS-232, PoH signals
- Supports 4K UHD, HDR & Dolby Vision to display pristine image quality
- Up to 18Gbps data rates with AVLC Technology
- Ideal for professional AV installations

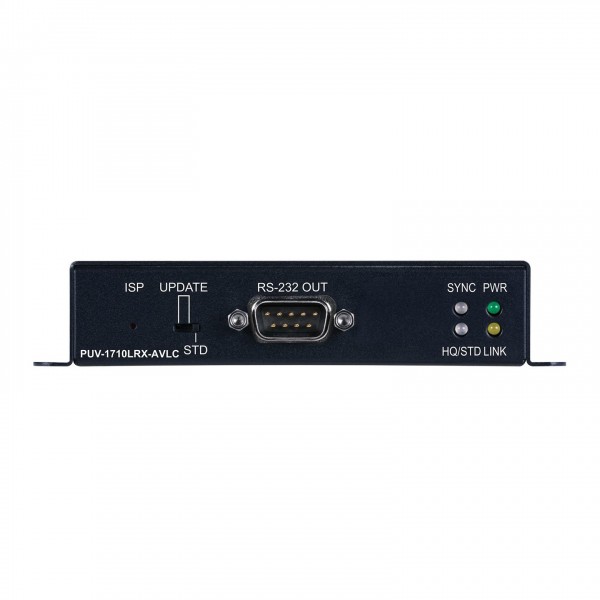

CYP PUV-1710LRX-AVLC 70m HDBaseT HDR Receiver Overview
The CYP PUV-1710LRX-AVLC 70m HDBaseT HDR Receiver is designed to receive and distribute high-resolution audio and video signals to an HDMI-equipped TV or projector while ensuring no loss in quality. Through a single CAT6a/7 cable, this receiver can accept HDMI, IR, RS-232, and PoH signals from a distance of 70m, making it the ideal companion to the separately sold PUV-1710LTX-AVLC Transmitter and a reliable component in any professional, large-scale audio-visual installation.
By supporting 4K@60Hz (4:4:4 8-bit), 10/12-bit HDR, and Dolby Vision, the LRX-AVLC ensures compatibility with a range of sources and maintains stunning visual playback. Furthermore, the Adaptive Visually Lossless Compression (AVLC) technology allows it to handle data rates up to 18Gbps. To enable rich audio quality, the LRX-AVLC offers pass-through support for LPCM, Dolby Digital, Dolby TrueHD, and Dolby Atmos. Moreover, the receiver's slim profile makes system integration discreet and easy.
Product Ref: 270030
Full Description
View Full DescriptionThis receiver was designed for use with the CYP PUV-1710LTX-AVLC Transmitter
What's in the Box?
- CYP PUV-1710LRX-AVLC 70m HDBaseT HDR Receiver
- 1 x 48V/0.83A DC Power Adapter
- 1 x 3.5mm to IR Extender Cable
- 1 x 3.5mm to IR Blaster Cable
- 1 x Operation Manual
Specifications
| HDMI Bandwidth | 600MHz/18Gbps |
|---|---|
| HDBaseT Bandwidth | 340MHz/10.2Gbps |
| Input Ports | 1 x Cat.5e/6/7 |
| Output Ports | 1 x HDMI |

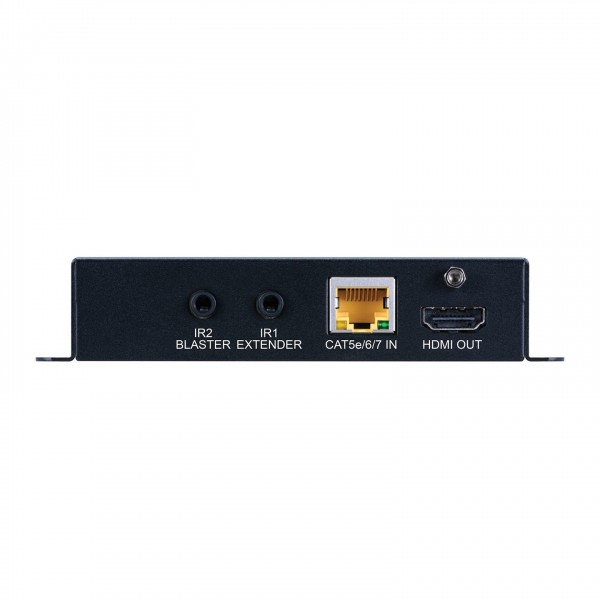

| Pass-through Ports | 1 x IR Extender (3.5mm)1 x IR Blaster (3.5mm)1 x RS-232 (9-pin D-sub) |
| IR Frequency | 30 - 50kHz (30 - 60kHz under ideal conditions) |
| Baud Rate | Up to 115200bps |
| Power Supply | PoH |
| ESD Protection Human Body Model | ±8kV (Air Discharge)±4kV (Contact Discharge) |
| Dimensions (W x H x D) | 128mm x 25mm x 108mm (Case Only)128mm x 25mm x 117mm (All Inclusive) |
| Weight | 386g |
| Chassis Material | Metal |
| Silkscreen Colour | Black |
| Operating Temperature | 0°C - 40°C/32°F - 104°F |
| Storage Temperature | −20°C - 60°C/−4°F - 140°F |
| Relative Humidity | 20 - 90 RH (Non-condensing) |
| Power Consumption | 9.8W |
| Product Code | PUV-1710LRX-AVLC |
