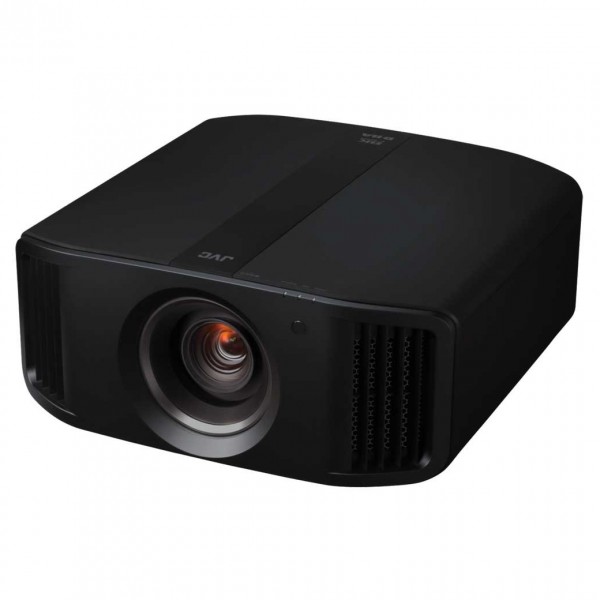

JVC DLA-NZ7 D-ILA High-End 8K Laser Projector, Black
Key Features
- High-end projector with 8K capabilities
- Create an immense and immersive cinema experience at home
- High brightness of 2,200 lumens provides vibrant and dynamic display of bright colours
- The BLU-Escent laser diode creates exceptional brightness and longevity
- HDR10+ allows a choice for two dynamic tone mappings
JVC DLA-NZ7 D-ILA High-End 8K Laser Projector, Black Overview
The JVC DLA-NZ7 D-ILA Projector is one of the first home cinema projectors to be capable of 8K at 60Hz and 4K at 120Hz. Two HDMI 2.1 inputs offer a full 48GBPS bandwidth which, when used in low latency mode, are a gamer’s dream. Assisted by JVC’s own third-generation BLU-Escent laser diode light and e-shift technology, images are upscaled with superior brightness and colour quality. HDR10+ with Auto Tone Mapping elevates low-quality images while a Theater Optimizer setting fine-tunes your display on account of variables like screen size, material, and lens zoom.
Product Ref: 210619
Full Description
View Full DescriptionLaser Replaces Lamp
The DLA-NZ7 is one of three new laser projectors brought to market by JCV as replacements for their previous NX native 4K lamp projectors. Of the three—the DLA-NZ7, DLA-NZ8, and DLA-NZ9—this model sees LCoS laser projectors brought down to one of the most affordable positions on the market. With laser rather than lamp models, there will be no need to replace a lamp throughout the projector’s long lifespan of approximately 20,000 hours. This laser projector also boasts a faster start-up time so you can start watching sooner.
Big Screen Gaming
This JVC DLA-NZ7 and its NZ8 and NZ9 counterparts are some of the first projectors to offer HDMI HDMI 2.1 with a full 48 GBPS bandwidth. This model has two HDMI input ports so you can connect gaming consoles or additional screens. For great gaming, the HDMI 2.1 ports support 4K games with up to 120Hz frame rate. When playing in low latency mode, the delay between your source and the screen display is significantly reduced, thereby improving your reaction speeds and overall game operation.
All Glass Lens
Within the DLA-NZ7, a 65mm all-glass lens (17 elements in 15 groups) helps display all the details of 4 and 8K imagery. 2x optical zoom with powered zoom and focus allows you to adjust the projection size without diminishing the quality. Five ED lenses help project right up to the corners of your screen with calibration to prevent chromatic aberration.
HDR10+
The DLA-NZ7 D-ILA Projector supports various HDR formats including HDR10 and HDR10+ for broad colour definition and vitality. Frame Adapt HDR and Auto Tone Mapping compatibility ensure that image data is optimised for your viewing set-up and whichever HDR formats are being used. Content is adjusted frame-by-frame for images so realistic it’s as though you witnessed them first-hand. Gradation is improved with 12–18-bit gamma processing accuracy; making scenes smoother while retaining sharpness. In Frame Adapt Mode, the Theater Optimizer setting works to further enhance HDR images with an analysis of conditions like screen size and material.
BLU-Escent Laser Diode
The third generation of JVC’s BLU-Escent module is now available in a full range of JVC home cinema projectors. Previously found in the brand’s flagship DLA-RS4500, this high-performance laser technology greatly improves the HDR impact compared to previous lamp models.
Features
- Third generation BLU-Escent Laser Light Module used in JVC’s flagship DLA-RS4500
- Two HDMI inputs with support for version 2.1 at 48 GBPS facilitate 8K@60Hz and 4K@120Hz
- Low Latency Mode can be used by gamers for reduced delay when receiving signals from PC or consoles
- Brightness of 2,200 lumens promotes vibrancy in every image
- Native Contrast Ratio of 40,000:1 translates to a spectacular Dynamic Contrast Ratio of infinity :1
- 17-element, 15-group all-glass 65mm lens reduces chromatic aberration and colour fringing
- 8K/e-shift technology reproduces 8K image quality with an improved pixel density
- HDR10+ uses dynamic metadata to get the most from each frame
- Frame Adapt HDR will dynamically tone map HDR10 content for frame-by-frame or scene-by-scene optimisation
- Theater Optimizer function analyses the environment for intelligent tone mapping
- Automatic switching into HDR picture mode when HDR10 signals are detected
- Filmmaker Mode reproduces images as the filmmakers intended
What's in the Box?
- JVC DLA-NZ7 D-ILA Projector, Black

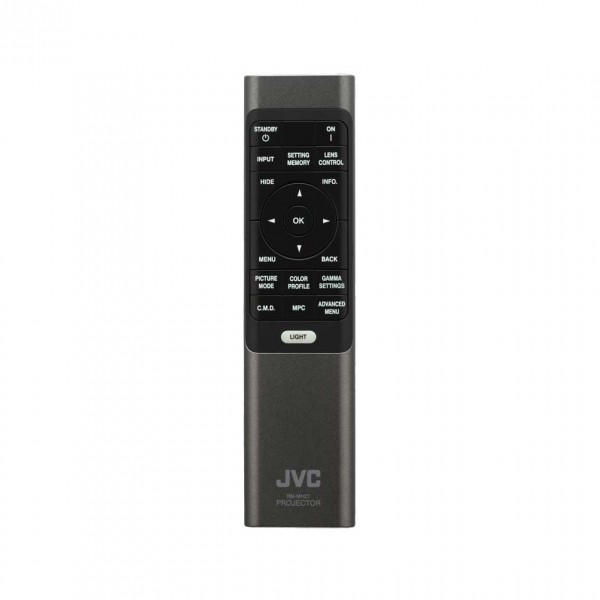

- Remote Control (RM-MH27)
- User Manual
- Power Cord
- 2 x AAA-size batteries
Specifications
Dimensions & Weight
| Product Dimensions (W x H x D) | 500 x 234 x 505 mm |
|---|---|
| Product Weight | 22.5 kg |
| Package Dimensions (W x H x D) | 640 x 415 x 665 mm |
| Package Weight | 27.9 kg |
| EAN | 4975769021961 |
Device
| D-ILA Technology | Yes |
|---|---|
| Chip Type | 0.69-inch 4K D-ILA device |
| Native Resolution | 4096 x 2160 |
| Number Of Chips | 3 |
| 8K/e-shift | Yes |
| Display Resolution | 8192 x 4320 |
Light Source
| Laser | Yes |
|---|---|
| Type | BLU-Escent Laser Diode |
| Life Time (Standard Mode) | 20000 hours |
| Brightness | 2200 lm |
|---|---|
| Dynamic Contrast | ∞ : 1 |
| Native Contrast | 40000 : 1 |
| Dynamic Light Power Control | Yes |
| Modes | Mode 1 (gentle), Mode 2 (strong), Off |
| Manual Aperture | Yes |
| Range | -15 (stops down) to 0 (opens up) |
| 100 REC 709 | Yes |
| Colour Bit Depth | 12 bit |
| ISFccc Certification | Yes |
HDR
| HDR10 | Yes |
|---|---|
| HDR10+ | Yes |
| Frame Adapt HDR | Yes |
| Theatre Optimizer | Yes |
| HLG | Yes |
| Auto Tone Mapping | Yes |
| Mastering Info Display | Yes |
| Info Data | MaxCLL and MaxFALL mastering data |
| HDR Picture Modes | BT.709 / BT.2020 / DCI / HDR |
Lens
| Zoom | 2 x |
|---|---|
| Throw Ratio | 1.35-2.75:1 |
| Diameter | 65 mm |
| Material | All-glass |
| Build | 17-element, 15-group in full aluminium lens barrel |
| Lens Shift | Yes |
| Range Horizontal | ± 34 |
| Range Vertical | ± 80 |
| Motorized Zoom | Yes |
| Motorized Shift | Yes |
| Motorized Focus | Yes |
| Projection Display Size (diagonal) | 60 - 200 inch |
| Memory Function | Yes |
| Number Of User Presets | 10 |
| Lens Cover | Yes |
HDMI
| Number of connections | 2 |
|---|---|
| Data Rate | 48 Gbps |
| HDCP Version | 2.3 |
| 8K60P Signal Input | Yes |
| 4K120p Signal Input | Yes |
| 4K60P Signal Input | Yes |
| Video Signal Range | 480p, 576p, 720p 60/50, 1080i 60/ 50, 1080p 120/ 100/ 60/ 50/ 30/ 25/ 24, 3840 x 2160p 120/ 100/ 60/ 50/ 30/ 25/ 24, 4096 x 2160p 120/ 100/ 60/ 50/ 30/ 25/ 24, 7680 x 4320p 60/ 50/ 30/25 /24 |
| PC Signal Range | VGA / SVGA / XGA / WXGA / WXGA+ / SXGA / WSXGA+ / UXGA / WUXGA / WQHD (60) / WQHD (120) |
| Input Level Adjustment | Auto / Standard (16-235) / Enhanced (0-255) / Super White (16-255) |
| Colour Space Range | Auto/ YCbCr4444 / YCbCr422 / RGB |
| EDID Modes | A and B (older hardware may need to use B settings) |

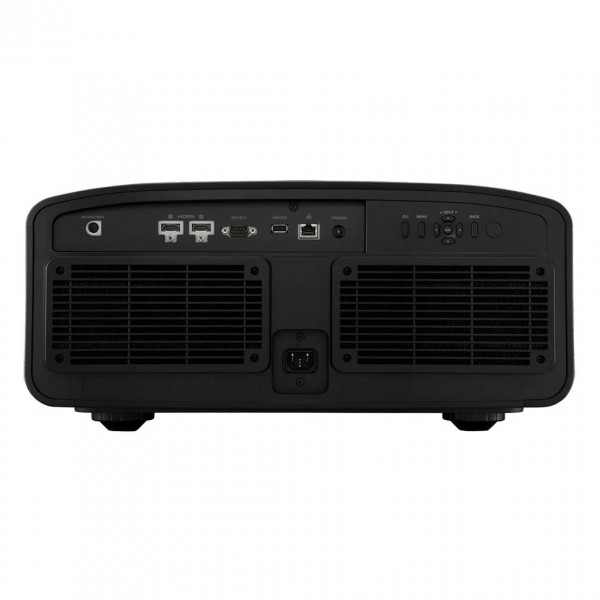

Connections
| Trigger Out | Yes |
|---|---|
| Connector | Mini-Jack (3,5mm) |
| Power | DC 12V / 100mA |
| 3D Synchro | Yes |
| Connector | Mini DIN 3-pin |
| LAN | Yes |
| Connector | RJ45 |
| RS-232 | Yes |
| Connector | D-sub 9-pin |
| Service | Yes |
| Connector | USB (Type A) for firmware update |
3D
| 3D Capability | Yes |
|---|---|
| 3D Versions | Frame Packing, Side-by-Side, Top & Bottom |
| Frame Packing Resolutions | 720p 60/50, 1080p 24 |
| Side-by-Side Resolutions | 720p 60/50, 1080p 60/50/24, 1080i 60/50 |
| Top & Bottom Resolution | 720p 60/50, 1080p/24 |
| 3D Emitter (Optional) | Yes, PK-EM2 |
| 3D Glasses (Optional) | Yes, PK-AG3 |
Picture Settings
| Picture Modes | Natural, Cinema, HDR10+, Frame Adapt HDR, HDR10, HLG, Pan_PQ, 6 User modes |
|---|---|
| Colour Temperatures | 5500K, 6500K, 7500K, 9300K, High Bright, HDR10+, HDR10, HLG, Custom 1, Custom 2 |
| Gamma Processing Depth | 12 bit |
| Gamma Adjust | HDR (Auto), HDR(PQ), HDR(HLG), 2.2, 2.4, 2.6, Cinema 1, Cinema 2, Pana_PQ, 3 Custom modes |
| Colour Management | 6-Axis adjustable CMS |
| MPC | Yes |
| Low Latency Mode | Yes |
| Clear Motion Drive | Yes |
| Motion Enhance | Yes |
| Auto Calibration | Yes |
| Optional Probe Needed | Yes |
| Installation Mode | Yes |
| Number Of Presets | 10 |
| Included Settings | Lens Control, Pixel Adjustment, Mask, Anamorphic on or off, Screen Adjust, Installation Style, Keystone, Pincushion, and Aspect |
| Anamorphic Modes | 4 Modes (A, B, C, D) |
| Control4 SDDP | Yes |
Power & Environment
| Power Requirement | AC100-240V, 50/60Hz |
|---|---|
| Projector In Use | 420W |
| Standby | Eco Mode 0.20W |
| Network Standby | 1.21W (LAN), 0.94W (RS-232C), 1.22W (LAN + RS232C) |
| Heading | Approx. 15 min. (To standby or networked standby; default) |
| Fan Noise | 24 dB |
| Eco Mode | Yes |
| Standby Timer | Yes |
| Operating Temperature | 5°C to 35°C |
| Operating Humidity | 20 to 80 |
| Installation Angle | Horizontal +/- 5 degree / Vertical +/- 10 degree |
| Installation Height | Below 2,000 m |
Please Note
This product projects images using a very bright light source. Always avoid looking directly into the projector lens during operation to prevent eye damage. This is especially important for children and pets. For more information, please refer to the manufacturer's user manual.
