OFFILNE Yamaha NS-5000 Premium Standmount Speakers (Pair), Black

Full Description

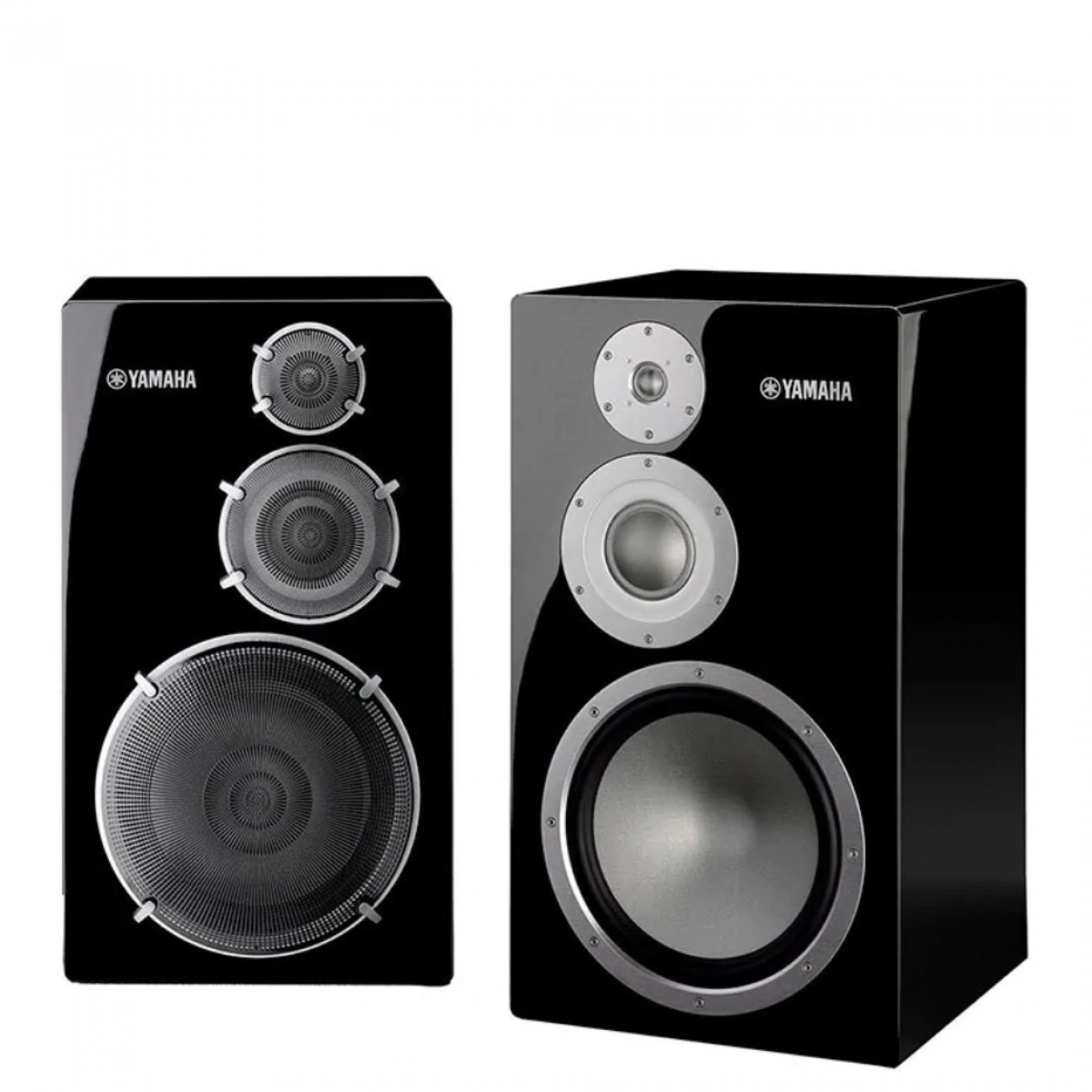

Yamaha proudly introduces the NS-5000, a 30 cm (12") 3-way bookshelf speaker system that illustrates the future direction of Yamaha's speaker technology grown out of years of cutting-edge research on all aspects of designing Hi-Fi speakers, including components and materials. The NS-5000, built upon the tradition of natural sound for which all Yamaha speakers have been known — from the very first NS-20 and NS-30 models released in 1968 to the latest — and sets a new standard in sound excellence expected of Yamaha's top-of-the-line speaker.

With non-colouration of sound, wide frequency response, consistent sound characteristics across the frequency range, and extremely low distortion set as self-imposed requirements for a new-generation speaker, we scientifically probed each of these characteristics to be incorporated into a flagship capable of bringing out the best of high-resolution audio sources. The result is the superb NS-5000, with sound and performance that sets a standard for all Hi-Fi speakers to come.

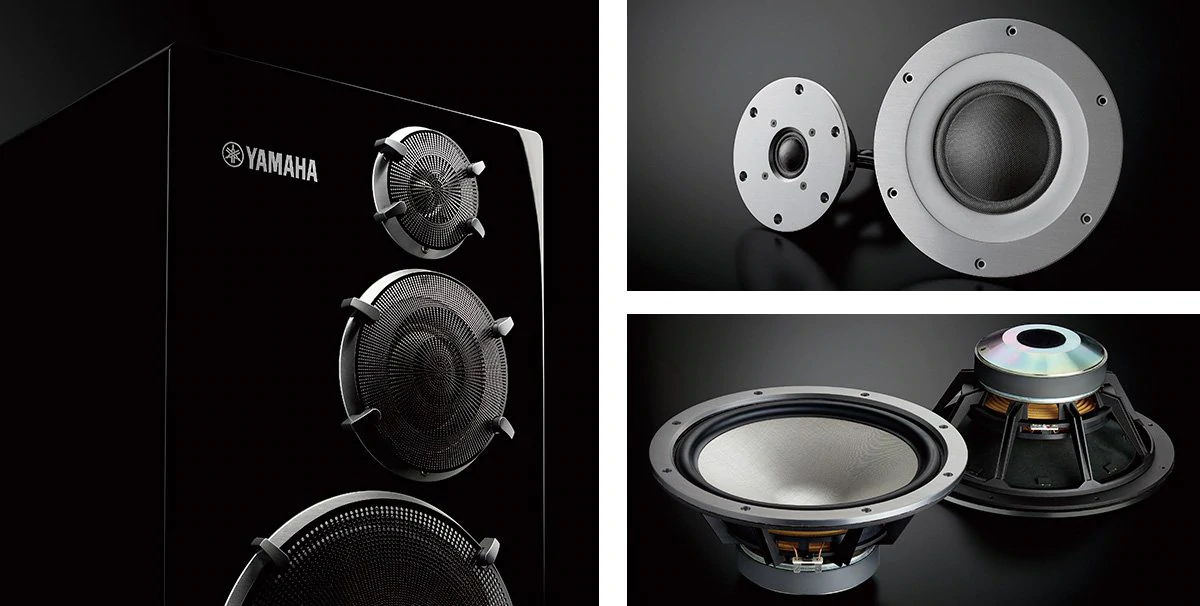

• Newly developed diaphragms boast acoustic velocity comparable to that of beryllium
• Newly developed R.S. (Resonance Suppression) Chambers suppress unwanted resonance in the mid and high ranges
• 30 cm (12”) 3-way bookshelf design draws on the tradition of the legendary NS-1000M

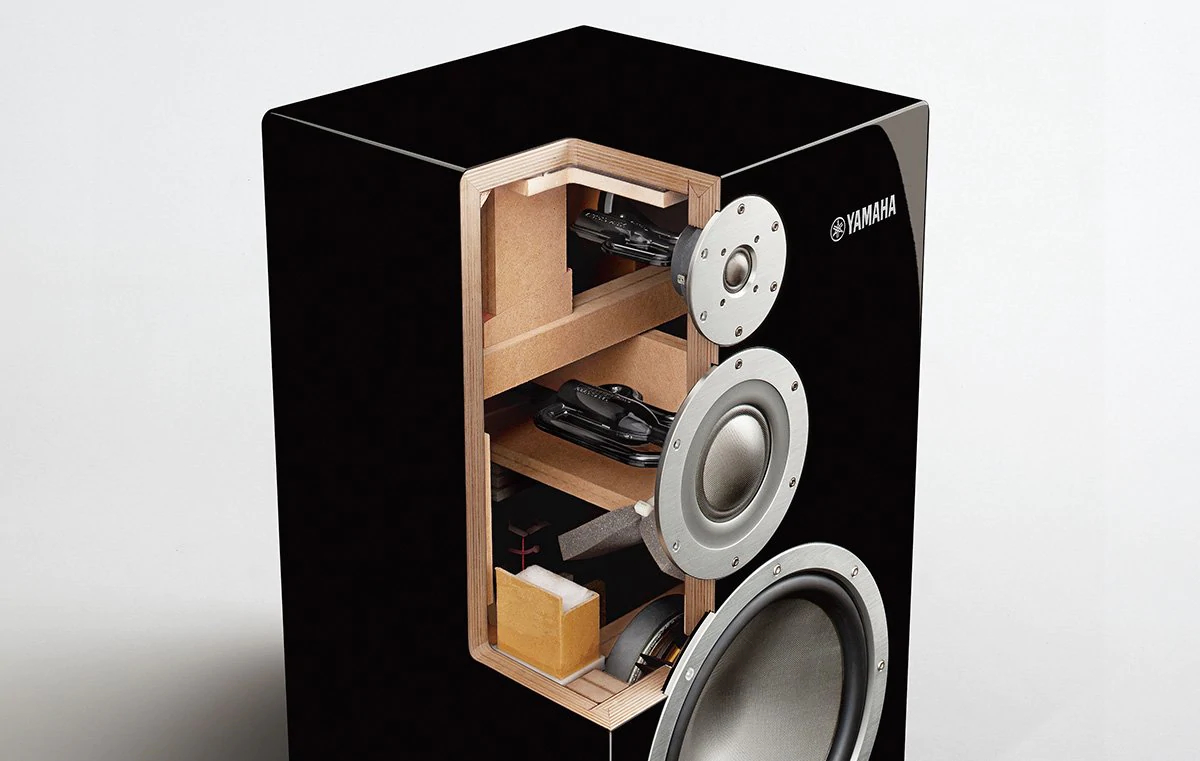

• Carefully crafted laminated plywood enclosure made of Japanese white birch from the island of Hokkaido
• Newly developed Acoustic Absorber eliminates sound-absorbing material to revive the original presence of the music
• Glossy black piano finish provides improved signal-to-noise performance — and adds to the luxurious joy of ownership
• Frequency-dividing Network

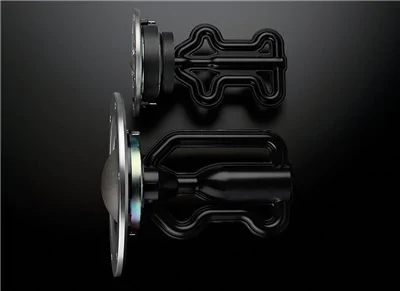

Newly Developed R.S. Chambers

Mounted on the back of the tweeter and midrange speaker units are newly developed R.S. Chambers (patent pending) that suppress unnecessary tube resonance generated behind the diaphragm. Two specially shaped tubes installed in accordance with our proprietary acoustic analysis cancel tube resonance. These R.S. Chambers achieve higher-resolution audio reproduction by eliminating the need for a large quantity of sound-absorbing material inside the enclosure that tends to smooth the frequency response of each speaker unit and might degrade minute nuances of the sound.

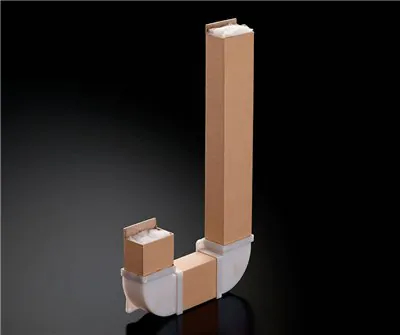

Newly Developed Acoustic Absorber

The cuboid enclosure unifies internal standing waves at a specified frequency, which are cancelled by a newly developed resonance tube (patent pending). This technology eliminates the previous need for the huge amount of sound-absorbing material inside the enclosure. The result is the virtual elimination of standing waves with amazing efficiency and pin-point accuracy—to energetically revive the essential presence of music, formerly lost by sound absorption.

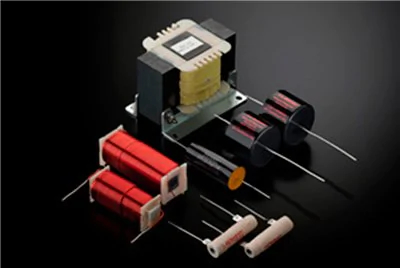

Frequency Dividing Network

All drivers in the NS-5000 are connected in positive phase with single wiring to deliver a natural, pleasing listening experience. Components of its frequency-dividing network are mounted on a double-sided printed circuit board with extra-thick copper traces of 140 μ in thickness; a shorter signal path on the circuit board minimises the loss of sound data during transmission. Moreover, in order to minimise signal loss, we used for the network handpicked parts of only the highest quality, such as the MCap SUPREME EVO audio capacitor, which is made by Mundorf of Germany and renowned as the pinnacle of audio-use capacitor, Mundorf’s MResist SUPREME attenuator, and a woofer coil that weighs as much as 1.6 kg (3.52 lbs).

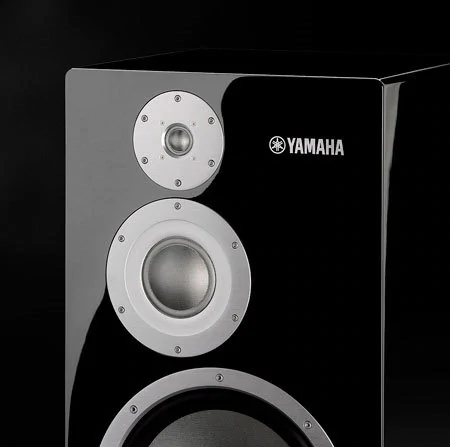

Glossy Black Piano Finish

All six external surfaces of the enclosure have a glossy black piano finish created using the same dedicated paint, primer, and polishing processes used for Yamaha’s renowned grand pianos. The uniform and hard membrane further increases the overall rigidity of the enclosure, and at the same time it suppresses fine vibrations, contributing to the bright sound and significantly enhanced signal-to-noise performance.
