Key Features
- Compact design with 7.1.4 virtualisation
- AMBEO Virtualisation supports 3D sound, with Dolby ATMOS, DTS:X and MPEG-H
- Optimal audio made easy with self-calibration, Adaptive mode and 5.1 upmixing
- Strikingly low distortion levels through Cellulose Cone fullrange drivers and woofers
- Bluetooth, Apple AirPlay 2, Spotify Connect, TIDAL Connect and Chromecast built-in
Sennheiser AMBEO Mini Soundbar Overview

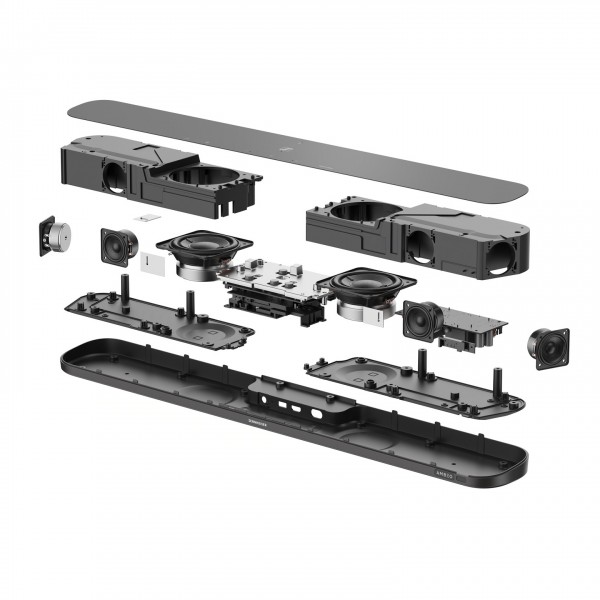

The Sennheiser AMBEO Mini Soundbar is the new compact addition to the award-winning AMBEO soundbar range. As the world of home entertainment embraces cinematic surround sound more and more, the AMBEO Mini stands out by delivering advanced 7.1.4 virtualisation despite its size. This is perfect for smaller viewing areas without sacrificing quality. The Mini has been fitted with two four-inch Cellulous Cone woofers, capable of approximately 43 Hz deep bass, and four 40mm full-range drivers, firing both forward and sideways for wider dispersion. It can also be wirelessly linked with up to four AMBEO Subs.
The AMBEO Mini, featuring a setup as streamlined as its design, comes equipped with HDMI eARC, Bluetooth, and Wi-Fi connectivity. Once connected, the automated self-calibration algorithms handle the complex task of setting up the virtual phantom speakers based on your room's unique reflective acoustics. AMBEO Virtualisation, developed in partnership with the Fraunhofer IIS Institute, is capable of supporting Dolby ATMOS, DTS:X, MPEG-H, and 360 Reality Audio, making it an absolutely outstanding alternative to full home cinema installation.

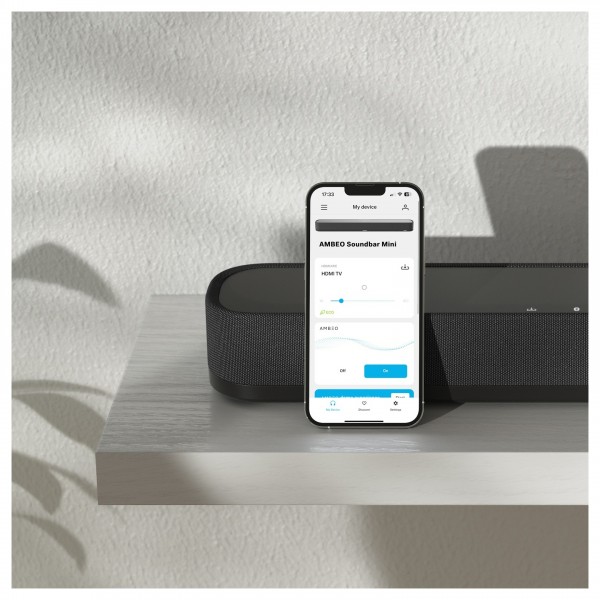

Whether you're interested in enhanced TV audio, home cinema or music, the Sennheiser AMBEO Mini Soundbar supports smart home features like Amazon Alexa, Google Chromecast, Apple AirPlay 2, plus streaming via Spotify Connect, Tidal Connect, and more. You can also use the Sennheiser Smart Control App to directly tweak EQ and calibration, or activate the Night Mode and Voice Enhancement features to create a listening experience that suits you. Small spaces shouldn't affect your viewing pleasure. The AMBEO Mini leaves a big impression.
Product Ref: 274349
Full Description
View Full Description
What's in the Box?
- AMBEO Soundbar Mini
- Remote control including lithium battery
- Premium high-speed HDMI® cable
- Instruction manual
- Power cord (country specific)
Specifications
Audio
| Woofers | 2x 4" Cellulose Cone Driver |
|---|---|
| Tweeters | — |
| Fullrange | 4x 1.6” (40mm) Cellulose ConeFullrange Driver |
| Frequency response | 43Hz – 20 Khz (-3dB) |
| Amplifier | 6x class D amplifiers |
| Total amplification power | 250W (RMS) |
| Total number of speakers | 6 |
| Audio processing | Quad Core 1.8GhZ SOC |

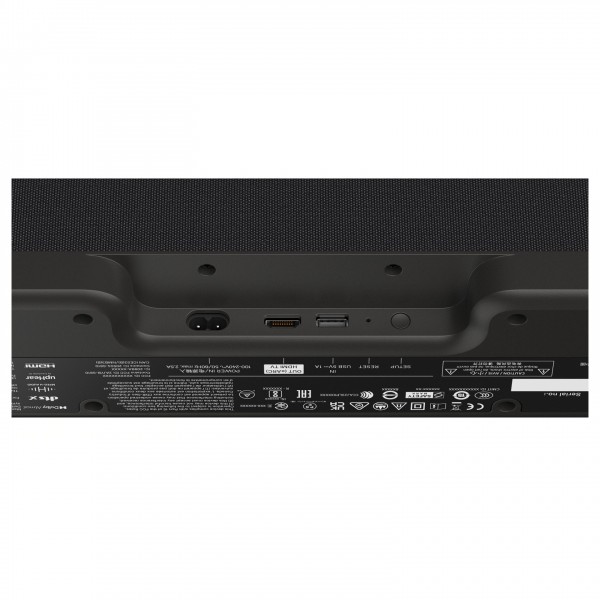

Connectivity
| Connectivity | Chromecast built-inuPnPAirPlay 2Spotify connectTidal connect |
|---|
Input
| HDMI TV (eARC) OUT | 1x HDMI eARC (HDMI 2.1) |
|---|---|
| HDMI IN | — |
| OPT IN | — |
| AUX IN | — |
| USB | 1x USB socket (type A), for power supply for accessories (external devices): 5 V ⎓, 1 A; |
Controls
| Alexa built-In | Yes |
|---|---|
| Works with OK Google | Yes |
| On device controls | Yes |
| Remote | Yes |
| Smart Control App | Yes |
| Web interface | Yes |
Network
| Transmission system | 2 x 2 MIMO |
|---|---|
| Transmission frequency(country-specific) | 2,400 MHz to 2,483.5 MHz5,170 MHz to 5,835 MHz |
| Modulation 2.4 GHz band | CCK, DQPSK, DBPSK für DSSS, 64QAM, 16QAM, QPSK, BPSK for OFDM |
| Modulation 5 GHz band | 1024-QAM, 256-QAM, 64QAM, 16QAM, QPSK, BPSK |
| Output power | 100 mW (max) |
WiFi
| WiFi standard | IEEE 802.11 a/b/g/n/ac/ax |
|---|
Bluetooth
| Bluetooth version | 5.0 Classic/BLE |
|---|---|
| Wireless transmission to Sub | 5.2 Bluetooth Low Energy |
| Transmission frequency | 2,400 MHz to 2,483.5 MHz |
| Modulation | GFSK, π/4 DQPSK, 8DPSK |
| Profiles | A2DP, AVRCP, GATT |
| Output power | BT SOC: 10mW (max)BT Sub: 10mW (max) |
| Codec | BT SOC: AAC, SBCBT Sub: LC3 |
| Ethernet | No |
| Subwoofer SW Pre-OUT | No |
| Microphone input for room calibration | 4x built-in far field high precision microphone |
Dimensions and Weight
| Size (W x D x H) | 700 X 100 X 65 mm |
|---|---|
| Weight | 3300 g |
Supported Audio / Surround Formats
| LPCM 2 Channel | Yes |
|---|---|
| LPCM 5.1 Channel | Yes |
| LPCM 7.1 Channel | Yes |
| Dolby Atmos (Dolby TrueHD, Dolby Digital Plus, Music) | Yes |
| MPEG-H | Yes |
| DTS:X | Yes |
| Sony 360 Reality Audio | Yes |
| DTS-ES Discrete 6.1 | Yes |
| DTS 96/24 | Yes |
| DTS-HD (High Resolution Audio, Master Audio, LBR) | Yes |
| LPCM (2, 5.1, 7.1 channel) | Yes |
Power
| Voltage range | 100–240V ~50/60Hz |
|---|---|
| Max ampere | Max. 2.5A |
| Standby | Max. 1.9W |
| Smart standby | — |
Additional Information
| Temperature range | Operation: 0 °C to +40 °CStorage: -20 °C to +70 °C |
|---|---|
| Relative humidity | Operation: 10 to 90 % |
