Rotel RC-1572 MKII Stereo Pre-Amplifier, Black
Key Features
- Affordable high-end preamplifier
- Premium Texas Instruments 32-bit Digital-to-Analog Converter brings full, natural sound
- Phono input allows you to connect any moving magnet turntables
- Compatibility with wireless aptX and AAC Bluetooth, Roon, MQA, and MQA Studio
Rotel RC-1572 MKII Stereo Pre-Amplifier, Black Overview
The Rotel RC-1572 MKII is a stereo preamplifier that provides great sound with high-grade digital to analogue conversion. No matter what your source is, digital or analogue, the RC-1572's affordable pricing and quality components will offer a clear, immersive sound quality alongside a broad but natural feeling stereo image. Rotel's custom-designed low-noise and transformer-isolated power supply ensures you get pure signal from the very start, providing an extremely low noise-floor.
The RC-1572's converters are designed by Texas Instruments, providing 32-bit conversion and external output filters that enhance your favourite music's expressivity and detail. This preamplifier supports a wide range of different audio connections and formats, including analog, digital, XLR, aptX, AAC Wireless Bluetooth, and Phono from moving magnet turntables, making it incredibly easy to connect to whatever device you need. The RC-1572 MKII comes alongside a remote control with a front panel display.
Product Ref: 230673
Full Description
View Full DescriptionImmersive, Open Sound
When choosing preamplifiers for your system, sound is always the main priority. The RC-1572 MKII offers an extremely open, natural sound to send to your speaker system, making it the ideal pairing for most systems. No matter what speaker setup you have in your space, this preamplifier will make the very most of it.
Wide-ranging Connectivity
The second key to a good preamplifier is the assurance that it can connect to the equipment you already have, or play back your preferred audio codecs. Rotel have ensured that this is the case with the RC-1572 MKII, providing connections for analog, digital, XLR, and Phono cables, as well as aptX™ and AAC Wireless Bluetooth audio formats. Finally, for more simplified computer-based setups, you can connect to a computer via USB and stream pristine 32-bit audio with a 384 kHz sample rate with MQA support, which makes it easy to stream directly from services like Roon or Tidal.
Precise Design

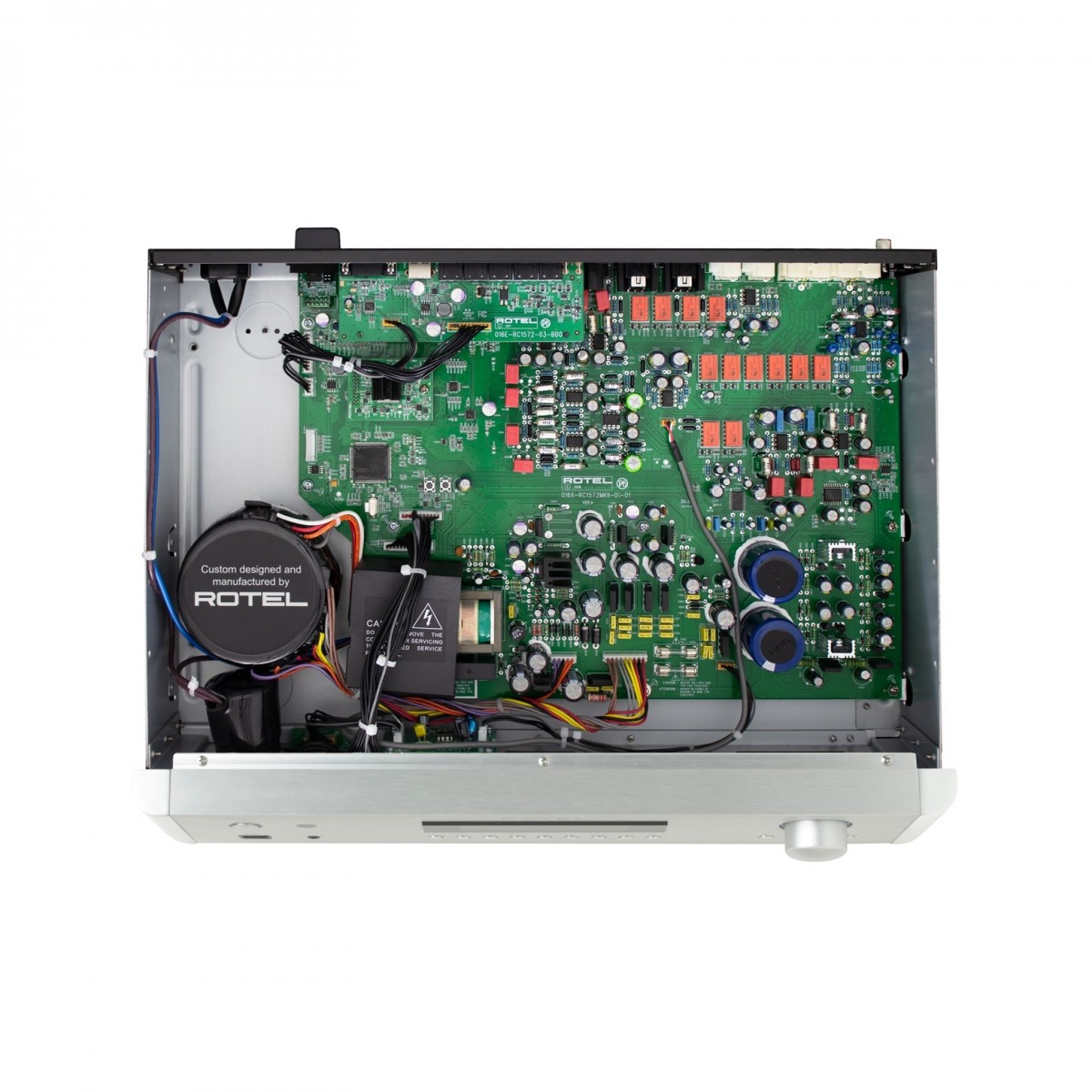

Rotel have ensured that your signals will arrive at your speakers uncoloured and clear, thanks to their ultra low-noise power supply. Isolated by a transformer and a bank of slit-foil low ESR capacitors, you can be assured that your noise floor is reduced to an absolute minimum. Complete with 32-bit digital-to-analogue conversion courtesy of Texas Instruments further enhancing its sound, the RC-1572 MKII balances quality components with efficient design to deliver great sound at an accessible price.
Features
- Stereo preamplifier for processing analog and digital sound sources
- Premium 32-bit digital to analog conversion designed by Texas Instruments
- Low-noise power supply with transformer isolation minimises noise floor
- Detailed listening with a naturalistic sound and immersive soundfield
- Connectivity with analog, digital, XLR, Moving Magnet Phono Stages, and USB
- Supports aptX™, AAC Wireless Bluetooth, and MQA audio codecs
- Certified Roon Tested provides instant access to high-quality audio streaming
- Included remote control for easy use at range

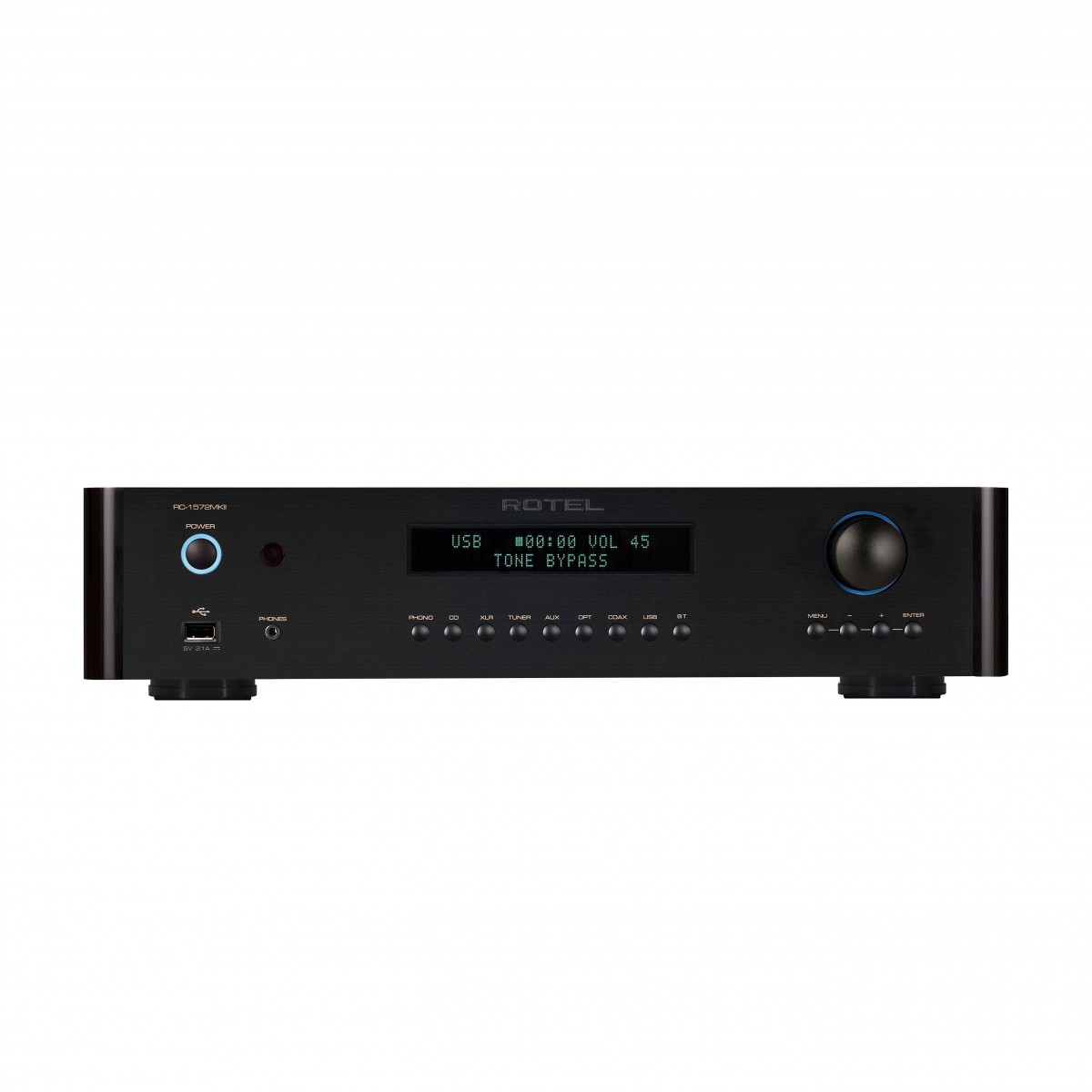

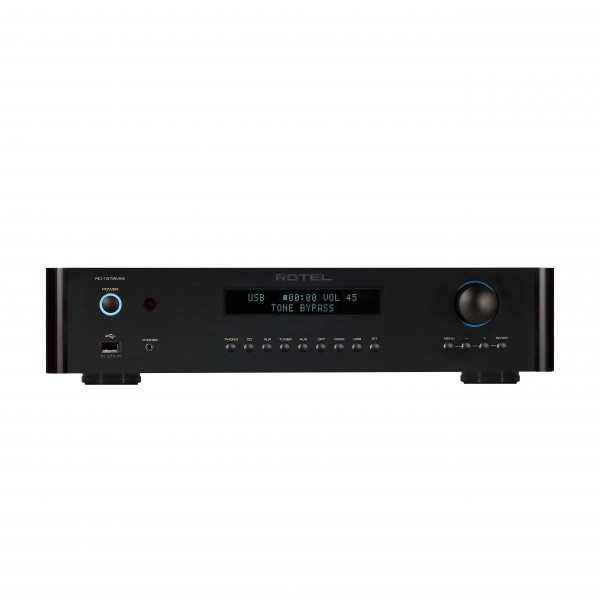

- Front panel display offers feedback and access to further controls

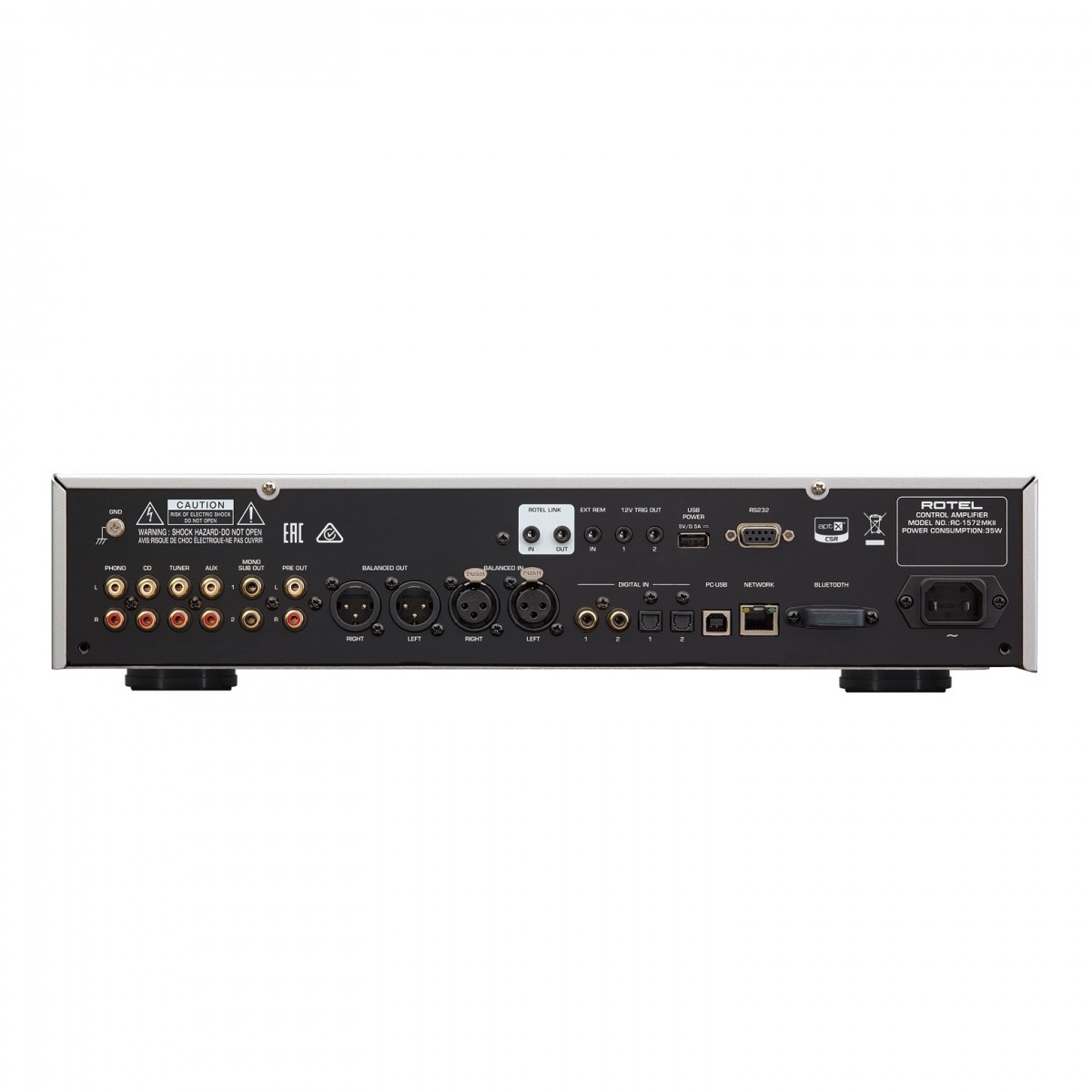

- RCA, XLR, and subwoofer outputs for flexible connection to any of your speakers
- Ethernet and RS232 connectivity for software updates and integration with control systems
| Dimensions (W x H x D) | 431 mm x 99 mm x 338 mm (17" x 3.9" x 13.5") |
|---|---|
| Front Panel Height | 2U/88.1 mm (3.5") |
| Power Requirements | 230 V, 50 Hz |
| Power Consumption | 35 W |
| Standby Power Consumption | <0.5 W |
| Net Weight | 8.4 kg (18.5 lbs) |
| BTU Rating | 65 BTU/h |
| Total Harmonic Distortion (THD) | <0.004% (20 Hz - 20 kHz) |
| Frequency Response | Line Level Inputs: 10 Hz - 100 kHz (+0 dB, -0.2 dB)Digital Inputs: 20 Hz - 20 kHz (0 ± 0.5 dB, max.)Phono Input: 20 Hz - 20 kHz (+0.3 dB, -0.2 dB) |
| Signal-to-Noise Ratio (IHF "A" Weighted) | Line Level Inputs: 118 dBDigital Inputs: 100 dBPhono Input: 80 dB |
| Intermodulation Distortion (60 Hz : 7 kHz, 4:1) | <0.004% |
| Input Sensitivity | Line Level Inputs (RCA): 200 mVLine Level Inputs (XLR): 300 mVDigital Inputs: 0 dBFSPhono Input (MM): 3 mV |
| Input Impedance | Line Level Inputs (RCA): 100 kΩLine Level Inputs (XLR): 100 kΩDigital Inputs: 75ΩPhono Input (MM): 47 kΩ |
| Input Overload | Line Level Inputs (RCA): 4 VLine Level Inputs (XLR): 5 VPhono Input (MM): 63 mV |
| Output Level | Unbalanced (RCA): 1 VBalanced (XLR): 2 V |
| Channel Separation | Line Level Inputs (RCA): >85 dBLine Level Inputs (XLR): > 75 dBPhono Input: >85 dB |
| Tone Controls | ± 10 dB at 100 Hz/10 kHz |
| Preamplifier Output Level | 1.44 V (at -20 dB) |
| Coax/Optical Digital Input Signals | LPCM (Up to 24-bit/192 kHz) |
| PC USB | USB Audio Class 1 (up to 24-bits/96 kHz)USB Audio Class 2 (up to 32-bits/384 kHz)**Driver Installation RequiredMQA and MQA Studio (up to 24-bits/384 kHz)Roon Tested |
