Key Features

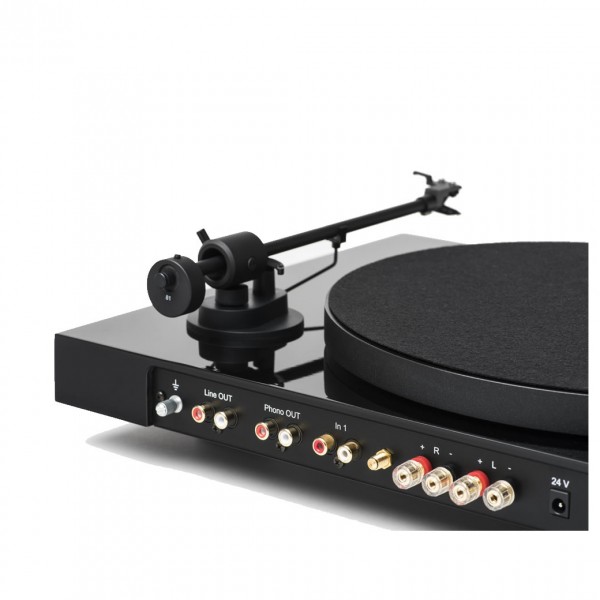

The Juke Box E from Pro-Ject Audio combines a high-specification turntable with a feature-rich integrated amplifier to offer a complete system in one box. With its Ortofon OM5e cartridge fitted and the tonearm pre-weighted turntable set up is a doddle. Just simply slide on the belt and platter, connect your speakers and switch on to go.The built-in Bluetooth receiver and additional line input means new and old audio sources can come together in perfect harmony. Just add Speakers.
Product Ref: 203217
“Pro-Ject forces a little of the 21st century into a turntable with winning results.”
"Here’s a record player – based on Pro-Ject’s well-regarded Primary turntable – that’s also tricked out with an Ortofon OM 5E cartridge, amplification (25W per channel into 8 ohms) and Bluetooth receiver. It’s an idea Pro-Ject has had before – the Juke Box in 2010 was a turntable/amp/phono stage – but the concept has been thoroughly updated here."
Introducing one of the easiest possible set-up All-in-one Plug & Play turntable systems with Bluetooth, line input and stereo speaker terminations outputs.
The Juke Box E is record player, phono stage, Bluetooth receiver, line pre-amplifier and power amplifier in one, requiring only a pair of speakers (and speaker cable of course) to make a complete system. If you thought that a starter turntable system is complicated to set up, Juke Box E proves the contrary. This good sounding belt-drive deck offers the fastest possible installation process because it comes pre-adjusted out of the box and offers superb sound quality.
The record player itself is based on a modified version of the popular Pro-Ject Primary design. While requiring no complicated set-up, the turntable design still includes premium features like an 8.6” aluminium tonearm with sapphire bearings, Ortofon OM 5E cartridge, perimeter belt-drive operation and a low-vibration synchronous motor with reliable speed stability. To set the turntable up there’s no need to adjust the anti-skate or counter-balance settings, simply install the belt and you’re ready to spin!
Operation is simple thanks to the volume and input information shown on the display, and the 32-step digital potentiometer – with added push function for switching inputs – allows you to set playback at exactly your desired volume. For times when the Juke Box E is out of reach, the supplied remote control helps with switching inputs and adjusting volume, as well as accessing more sophisticated controls including Bass and Treble adjustment and a Loudness boost.
Tracking force and anti-skating of the turntable section are carefully pre-set and an acrylic dust cover is included. There are also a selection of colours available with the “All-in-one turntable system”, these are high-gloss black, red or white colour.
With the its full range of analogue and digital inputs, Juke Box E becomes one of the most versatile offerings on the market. A turntable, a preamplifier, a power amplifier and a Bluetooth receiver as a good looking and audiophile one-box-solution!
The built-in high contrast display always tells you what volume-setting you are listening at and what input currently is in use. So you always know what’s happening.
The 32-step digital potentiometer gives you perfect feedback and allows you to fine-tune to your desired volume. Pressing the volume knob switches between the available inputs.
Power Output | 2 x 50W (4Ω) |
---|---|
Outputs | Speaker Terminals Line Out (Fixed) Phono Out |
Inputs | Bluetooth (2.1, EDR) Line (RCA Pair) |
Phono Input | For Moving Magnet Cartridges |
Replacement Stylus | Ortofon Stylus 5E |
---|---|
Pre-Fitted Cartridge | Ortofon OM 5E |
Drive Principle | Belt Drive |
Nominal Speeds | 33/45 RPM (Manual Speed Change) |
Speed Variance | 33: 0.8% 45: 0.7% |
Wow & Flutter | 33: 0.29% 45: 0.27% |
Platter | 300mm Plywood with Felt Mat |
Main Bearing | Stainless Steel in Bronze Bushing |
Effective Tonearm Length | 8.6" (218.5mm) Aluminium |
Effective Tonearm Mass | 8.0g |
Overhang | 22.0mm |
Counterweight | For Cartridges Weighing 3 - 5.5g |
Tracking Force Range | 0 - 25mN (Set at 18mN for OM 5E) |
Power Consumption | 4.5W max. |
Dimensions (W x H x D) | 415 x 118 x 334mm |
Weight | 5kg (net.) |
