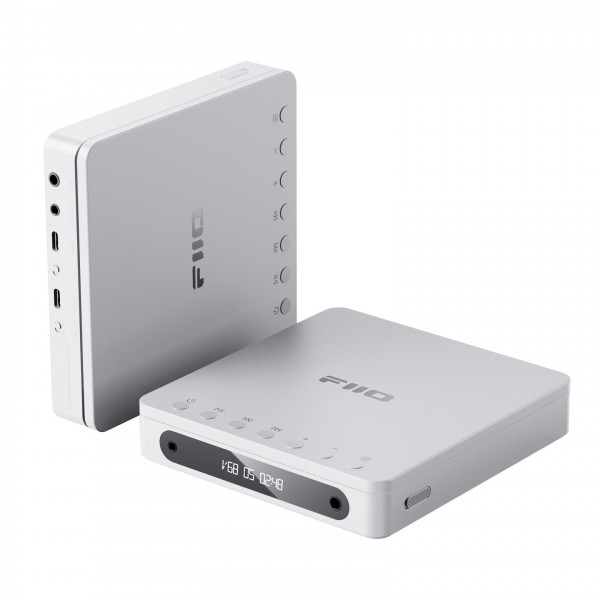

FiiO DM13 Portable CD Player with Bluetooth, White
Key Features
- BT aptX HD transmitter for wireless listening
- Supports multiple audio formats, including FLAC, WAV, AAC, WMA, and MP3
- Up to eight hours of CD playback, or switch to Desktop Mode for continuous power
- Versatile wired connections via 3.5mm and 4.4mm headphone jacks
- Multiple output options with USB, SPDIF, and analogue line-outs
FiiO DM13 Portable CD Player with Bluetooth, White Overview
The FiiO DM13 Portable CD Player with Bluetooth offers the flexibility to enjoy your music however and wherever you like, with support for aptX HD, SBC, and aptX Low Latency codecs for Bluetooth headphones and speakers, or through 3.5mm single-ended and 4.4mm balanced outputs for wired headphones. Whether you prefer the convenience of Bluetooth or the precision of a wired connection, this player adapts to your listening style. With an eight-hour battery life and support for multiple formats, including MP3, WAV, and FLAC, it lets you dive into your CD collection.
Product Ref: 323490
Full Description
View Full DescriptionWireless Freedom with aptX HD Bluetooth
With the DM13 BT, you get aptX HD Bluetooth, offering the convenience of wireless listening without losing audio fidelity. Enjoy high-quality audio streamed to your Bluetooth headphones or speakers, with support for aptX, aptX Low Latency, and SBC codecs. This makes it easy to switch from a wired connection to wireless, adapting seamlessly to your preferred setup. Compact and lightweight, this makes the DM13 BT the perfect travel companion, offering up to ten hours of playback on a single charge. Its durable aluminium alloy body and Electronic Skip Protection ensure smooth and reliable performance, ideal if you’re a music lover on the go.
High-Performance Audio with Dual DACs
Whether you're using wired headphones or connecting to your hi-fi via line outputs, the DM13 BT delivers exceptional audio detail and dynamic range. At its core are dual Cirrus Logic CS43198 DAC chips, working together to reduce noise and distortion, improve channel separation, and craft a lifelike soundstage that immerses you in your music. FiiO have partnered these DACs with two DGM8262 headphone amplifiers, capable of providing up to 660mW of balanced output power. Despite its compact design, the DM13 BT is built to handle even high-impedance headphones, with both 3.5mm and 4.4mm output options.

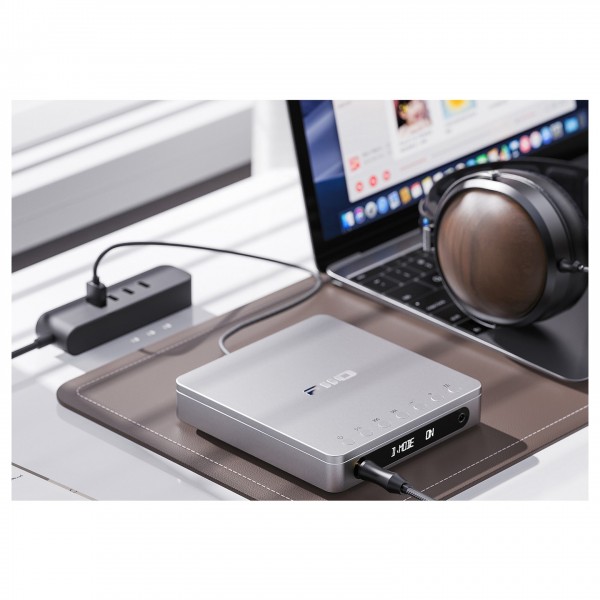

Dual Modes: Desktop and Portable Use

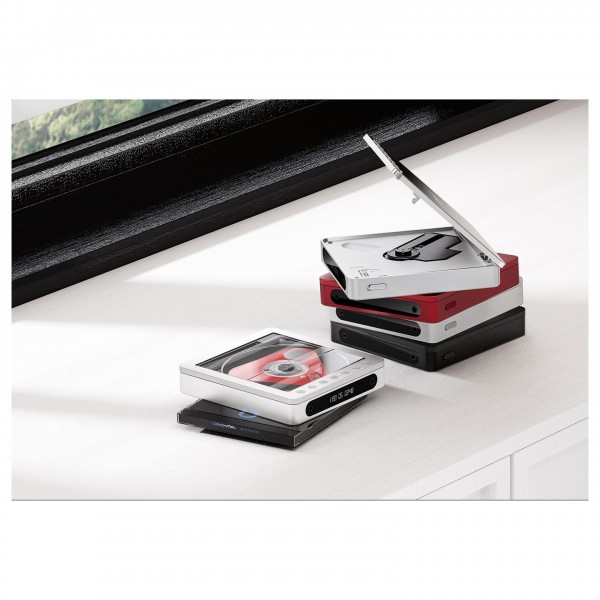

If you thought the DM13 was strictly for use on the go, you’d be surprised. FiiO’s patented Desktop Mode lets you power the player via USB while in use. This allows you to seamlessly transition the CD player from a commuting companion to a key part of your hi-fi setup at home. With a variety of connection options, including optical and coaxial outputs, it provides precise, low-jitter connections to external DACs, with additional features like gapless playback as well as USB CD ripping allowing you to back up your collection. With five colour options—red, white, black, silver, and transparent—you can match the player to your style.
Features
- Supports Bluetooth aptX HD for high-quality wireless audio
- Features dual CS43198 DACs with two SGM8262 amps, delivering dynamic sound quality
- Headphone amps deliver up to 180mW (single-ended) or 660mW (balanced) at 32Ω, THD <1%

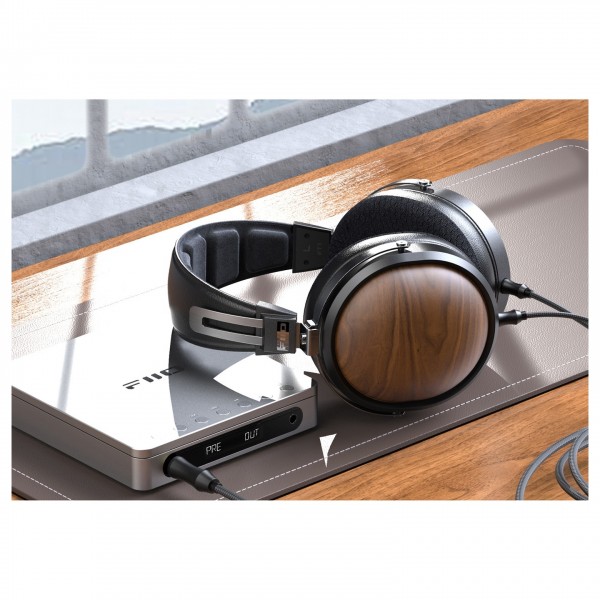

- Listen using 3.5mm or 4.4mm headphone outputs, and single-ended or balanced line outputs
- Custom low-jitter crystal oscillators ensure precise digital signal transmission via coaxial or optical
- Operate in Desktop Mode for continuous power when plugged in via USB
- Can be used to rip CDs to WAV to back up your collection
- Compact aluminium alloy body with Electronic Skip Protection for uninterrupted playback
- 3.8V cobalt lithium battery delivers up to 10 hours of playback on a single charge

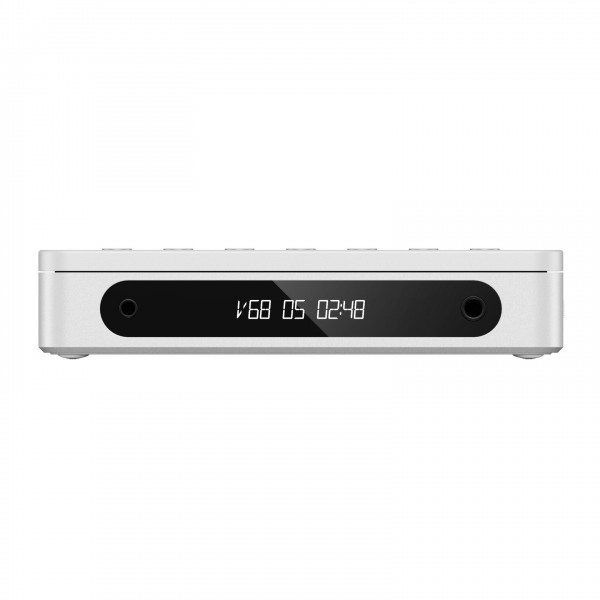

- LCD screen provides easy-to-read playback information
- User-friendly features include gapless playback, favourites saving, and track/album looping

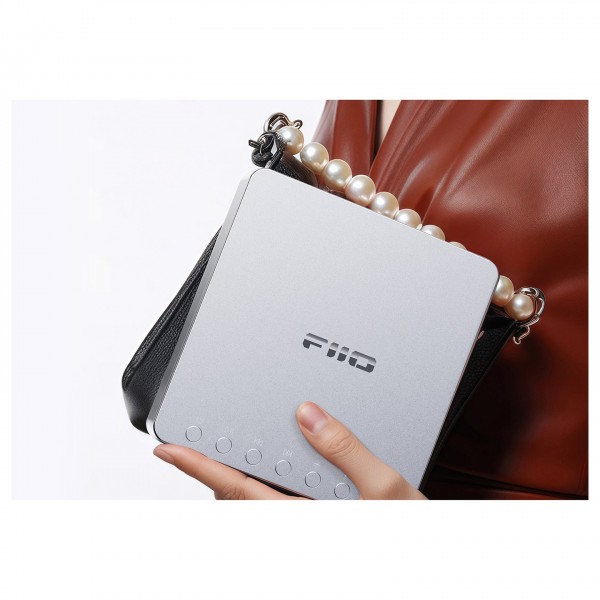

- Built for portability, with a range of colour options to choose from
What's in the Box?
- FiiO DM13 BT CD Player
- Quick-start guide
- USB A-C charging and data cable
- 3.5mm coaxial adapter
- Warranty card
Specifications
General
| Hardware platform | Main Control: CS6137Op-Amp: SGM82622DAC: CS431982 |
|---|---|
| Output modes | PRE OUT / USB OUT / SPDIF OUT / BLUETOOTH OUT |
| Bluetooth Transmission | Supports SBC, aptX, aptX Low Latency, aptX-HD |
| Screen | 1.5-inch LCD display |
| Optical head | Custom optical head |
| Mechanism | Custom mechanism |
| Volume control type | Button |
| Compatible impedance | PO: 8150ΩBAL: 8350Ω |
| Playback Support | CD, FLAC, WAV, WMA, AAC, MP3 |

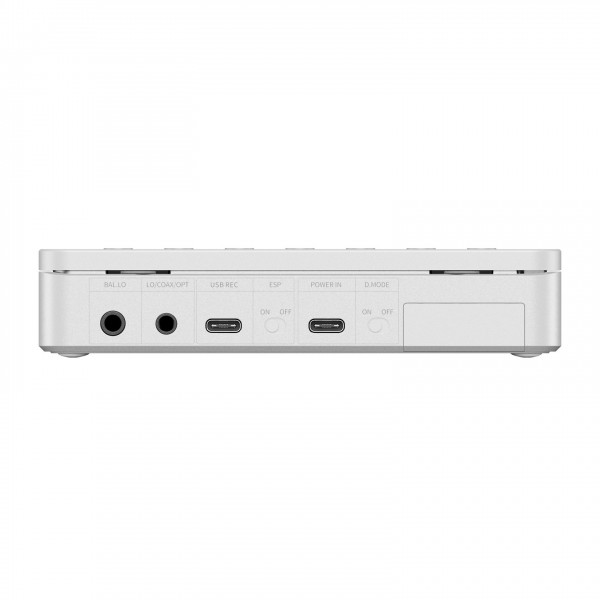

Buttons and Interface
| Controls | Power buttonPlay/Pause buttonPrevious track buttonNext track buttonVolume downVolume upFunction select button |
|---|---|
| USB interface | 2 x USB Type-C (1 x Power in, 1x USB audio for charging and data transfer) |
| Headphone output interface | Standard 3.5mm jack |
| Single-ended line output interface | Standard 3.5mm jack |
| Balanced output interface | Standard 4.4mm jack |
| Balanced line output interface | Standard 4.4mm jack |
| Coaxial/optical output interface | Standard 3.5mm jack (shared with LO port) |
| Toggle switches | ESP switchD.MODE switch |
Battery Life and Testing Conditions (3.5mm Headphone Output)
| Battery life | ≥10 hours |
|---|---|
| Audio input | CD playback on the device |
| ESP switch | Off |
| Volume level | 32 |
| D.MODE switch | Off |
| Screen status | Off |
| Load | 32Ω |
Battery Life and Testing Conditions (4.4mm Headphone Output)
| Battery life | ≥10 hours |
|---|---|
| Audio input | CD playback on the device |
| ESP switch | Off |
| Volume level | 26 |
| D.MODE switch | Off |
| Screen status | Off |
| Load | 32Ω |
Headphone Output Performance
| Output power | L+R ≥ 270mW + 270mW (16Ω, THD+N < 1 )L+R ≥ 180mW + 180mW (32Ω, THD+N < 1 )L+R ≥ 20mW + 20mW (300Ω, THD+N < 1 ) |
|---|---|
| Output impedance | < 1Ω |
| Total harmonic distortion + noise (THD+N) | ≤ 0.0025 (1kHz/0dB @32Ω) |
| Signal-to-noise ratio (SNR) | ≥ 120dB (A-weighted) |
| Channel separation | ≥ 77dB (1kHz @32Ω) |
| Noise floor | ≤ 2.4μV (A-weighted) |
| Frequency response | 20Hz 20kHz (attenuation < 2.3dB) |
| Peak output voltage | 7Vp-p |
Line Output Performance
| Total harmonic distortion + noise (THD+N) | ≤ 0.0026 (1kHz/0dB @10kΩ) |
|---|---|
| Signal-to-noise ratio (SNR) | ≥ 113dB (A-weighted) |
| Channel separation | ≥ 105dB (1kHz @10kΩ) |
| Noise floor | ≤ 4.3μV (A-weighted) |
| Frequency response | 20Hz 20kHz (attenuation < 2.3dB) |
| Line output level | 2.5Vrms |
Balanced Headphone Output Performance
| Output power | L+R ≥ 620mW + 620mW (16Ω, THD+N < 1 )L+R ≥ 660mW + 660mW (32Ω, THD+N < 1 )L+R ≥ 80mW + 80mW (300Ω, THD+N < 1 ) |
|---|---|
| Output impedance | < 1.5Ω |
| Total harmonic distortion + noise (THD+N) | ≤ 0.0024 (1kHz/0dB @32Ω) |
| Signal-to-noise ratio (SNR) | ≥ 124dB (A-weighted) |
| Channel separation | ≥ 120dB (1kHz @32Ω) |
| Noise floor | ≤ 2.8μV (A-weighted) |
| Frequency response | 20Hz 20kHz (attenuation < 2.3dB) |
| Peak output voltage | 14Vp-p |
Balanced Line Output Performance
| Total harmonic distortion + noise (THD+N) | ≤ 0.0022 (1kHz/0dB @10kΩ) |
|---|---|
| Signal-to-noise ratio (SNR) | ≥ 124dB (A-weighted) |
| Channel separation | ≥ 106dB (1kHz @10kΩ) |
| Noise floor | ≤ 3μV (A-weighted) |
| Frequency response | 20Hz 20kHz (attenuation < 2.3dB) |
| Line output level | 5Vrms |
Product Information
| Power supply | Supports DC 5V / ≥2A |
|---|---|
| Charging time | Approximately 2.5 hours (using 5V 2A adapter) |
| Product size (W x D x H) | Approx. 137.5 x 144.7 x 28.7mm |
| Weight | Approx. 450g |
| Name/Model | DM13-BT |
| Colour options | DM13: Silver, Black, WhiteDM13 BT: Silver, Black, Transparent White, White, Red |
| Product code | FIIODM13-BT-WHITE |
